General | ||

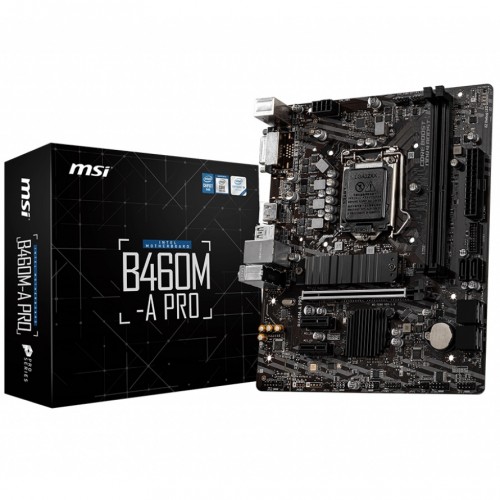

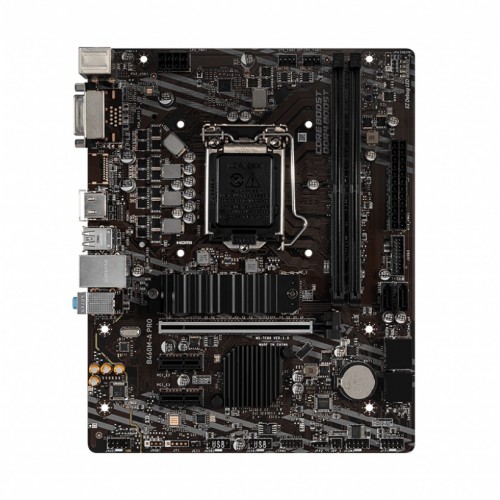

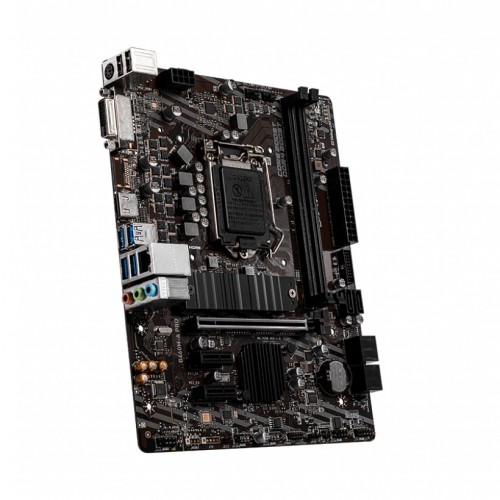

Model | MSI B460M-A PRO | |
Chipset | Intel B460 | |
Form Factor | Micro ATX | |
Additional Info | ||
BIOS Type | 1 x 128 Mbit Flash | |
BIOS Model | UEFI AMI BIOS | |
WiFi | No | |
Bluetooth | No | |
TPM Port | Yes | |
Memory Specifications | ||
Type | DDR4 | |
MHz | Intel Core i7/ i9 (2933MHz), Intel Core i5 and below (2666/ 2400/ 2133MHz) | |
Channel | Dual | |
Slot | 2 | |
Max | 64GB | |
Graphics Specifications | ||
Graphics | Integrated Graphics | |
Multi-GPU Support | No | |
PCI Express Slot | 1x PCIe 3.0 x16 slot, 2x PCIe 3.0 x1 slots | |
DirectX Support | 12 | |
Warranty Information | ||
Manufacturing Warranty | 03 Years | |
Compatibility | ||
Sockets Supported | LGA1200 | |
Supported CPU | Intel Core and Pentium Gold / Celeron processors | |
Generation | 10th | |
Supported Operating System | Windows 10 | |
Storage | ||
Storage Interface | 6.0Gb/s | |
M.2/SSD Expansion Slot | 1 | |
SATA Port | 6 x SATA | |
Raid Support | 0, 1, 5, 10 | |
Network & Connectivity | ||
LAN Chipset | Realtek 8111H | |
LAN Speed (Mbps) | 10/100/1000 | |

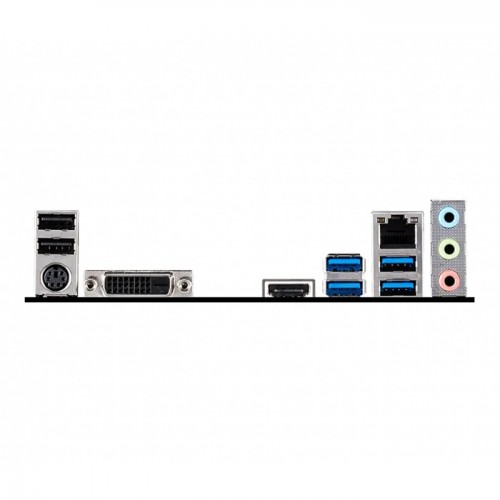

Ports | ||
USB Port | 6 x USB3.2 Gen 1, 6 x USB2.0 | |
DVI Port | 1 | |
HDMI Port | 1 | |
Audio & Video | ||
Audio Chipset | Realtek ALC892 | |
Audio Channel | 7.1 |
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.
RELIABLE COMPONENTS
M.2 SHIELD FROZR
FULLY FAN CONTROL
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.
STORAGE
USB
OVERVIEW
OPTANE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.
PERFORMANCE
AUDIO
BIOS & SOFTWARE
DDR4 BOOST
CORE BOOST
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.
Brand - MSI, Model - MSI B460M-A PRO, CPU Sockets - LGA1200, Chipset - Intel B460, Supported CPU - Intel Core and Pentium Gold / Celeron processors, Generation - 10th, Memory Type - DDR4, Memory MHz - Intel Core i7/ i9 (2933MHz), Intel Core i5 and below (2666/ 2400/ 2133MHz), Memory Channel - Dual Channel, Memory Slot - 2, Memory Max. - 64GB, Optane Memory Support - Yes, Graphic - Integrated Graphics, Multi-GPU Support - No, PCI Express Slot - 1x PCIe 3.0 x16 slot, 2x PCIe 3.0 x1 slots, Storage Interface - 6Gb/s, M.2 Slot - 1 x M.2 (Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices), LAN Chipset - Realtek 8111H, LAN Speed (Mbps) - 10/100/1000, Audio Chipset - Realtek ALC892, Audio Channel - 7.1-Channel, Wi-Fi - No, Bluetooth - No, USB Port - 6 x USB3.2 Gen 1, 6 x USB2.0, VGA Port - No, DVI Port - 1, HDMI Port - 1, DisplayPort (DP) - No, IDE Port - No, SATA Port - 6 x SATA, DirectX Support - 12, BIOS Type - 1 x 128 Mbit Flash, BIOS Model - UEFI AMI BIOS, FireWire - No, CrossFire Support - No, Sli Support - No, RaidSupport - 0,1.5,10, Thunderbolt - No, TPM Port - Yes, COM Port - No, Form Factor - Micro ATX, Supported Operating System - Windows 10, Special Features - Core Boost, With premium layout and digital power design to support more cores and provide better performance, DDR4 Boost, Advanced technology to deliver pure data signals for the best performance and stability, M.2 Shield Frozr, Strengthened built-in M.2 thermal solution, Keeps M.2 SSDs safe while preventing throttling, making them run faster, Turbo M.2, Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs, Audio Boost, Steel Armor, Protecting VGA cards against bending and EMI for better performance, stability and strength, Others - 1x 4-pin CPU fan connector, 1x 4-pin system fan connector, 1x Front panel audio connector, 2x Front panel connectors, 1x TPM module connector, 1x Serial port connector, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 4x EZ Debug LED, Audio jacks, Warranty - 3 Year
