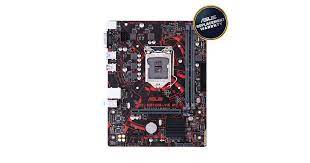

Asus EX-H310M-V3 R2.0 DDR4 Motherboard
Price : TK.10700
Brand : Asus
Model : Asus EX-H310M-V3 R2.0
Warrantty : 3 Year's (Official)
Product Code : TLB-1002
Status :
- In stock
Payment:
Share:
Related Products
Biostar H310MHP DDR4 Motherboard
TK.6900
Specificaions :
| Main Feature | ||
| Brand | ASUS | |
| Model | Asus EX-H310M-V3 R2.0 | |
| Series | Asus EX | |
| Technical Specification | ||
| Form Factor | U-ATX | |
| RGB Support | No | |
| RGB Connector | No | |
| Additional Info | ||
| Country Of Origin | Taiwan | |
| Made in/ Assemble | China | |
| Memory Specifications | ||
| Memory Type | DDR4 | |
| Memory MHz | 3200/2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory | |
| Memory Slot | 2 | |
| Memory Max | 32GB | |
| Graphics Specifications | ||
| Graphics Chipset | Integrated Graphics | |
| Multi-GPU Support | No | |
| PCI Express Slot | 1 x PCIe 3.0/ 2.0 x 16, 1 x PCIe 2.0 x 1 | |
| Warranty Information | ||
| Manufacturer | 3 Year's (Official) | |
| Compatibility | ||
| Supported Operating System | Windows 10 | |
| Compatible Products | Core i3, Core i5 ,Core i7, Pentium Gold (8th Gen & 9th Gen) | |
| Storage | ||
| Storage Interface | 6.0Gb/s | |
| M.2/SSD Expansion Slot | No | |
| Network & Connectivity | ||
| LAN Chipset | Realtek RTL8111H | |
| LAN Speed (Mbps) | 10/ 100/ 1000Mbps | |
| WiFi | No | |
| WiFi Technology | No | |
| Bluetooth | No | |
| Ports | ||
| USB Port | 4 x USB 2.0, 2 x USB 3.1 Gen 1 | |
| VGA Port | Yes | |
| DVI Port | No | |
| HDMI Port | No | |
| SATA Port | 3 x SATA | |
| COM Port | 1 | |
| Audio & Video | ||
| Audio Chipset | Realtek ALC887 High Definition Audio CODEC | |
| Audio Channel | 8 | |
| CPU | ||
| Chipset Brand | Intel | |
| Chipset | Intel H310 | |
| Sockets Supported | LGA1151 | |
| Supported CPU | 9th/ 8th Gen Intel Core, Pentium Gold and Celeron Processors | |
Asus EX-H310M-V3 R2.0 DDR4 motherboard compatible with Intel 8th gen (Socket 1151) i3, i5 & i7 processor. This luminous anti-moisture coating board also supports dual channel DDR4 maximum 32GB memory and it has the capability of fast SATA 6Gb/s interface.Focusing on the graphics, it will support Intel HD graphics with 1024MB shared graphics memory and having maximum resolution of 1920 x 1200 @ 60 Hz for D-sub slots. This USBGuard motherboard has 8-pin power connector and ASUS 5X Protection.
