General | ||

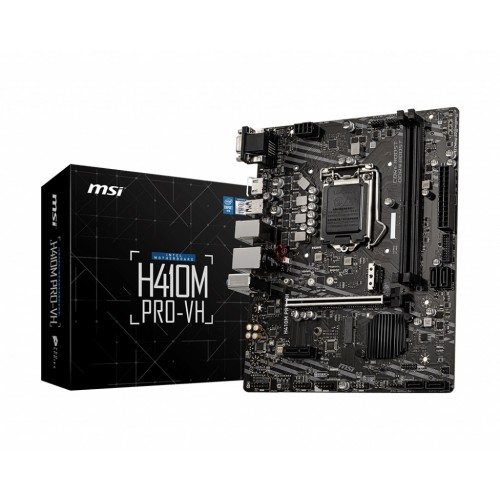

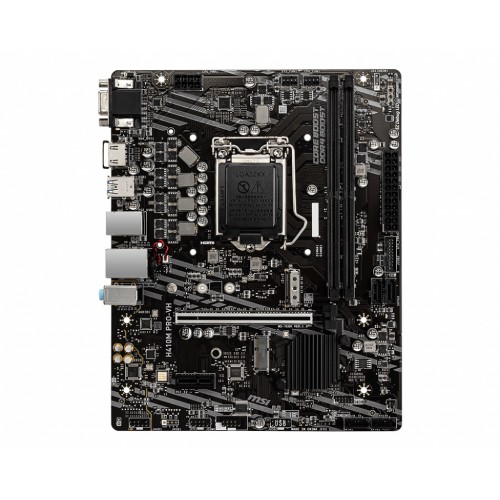

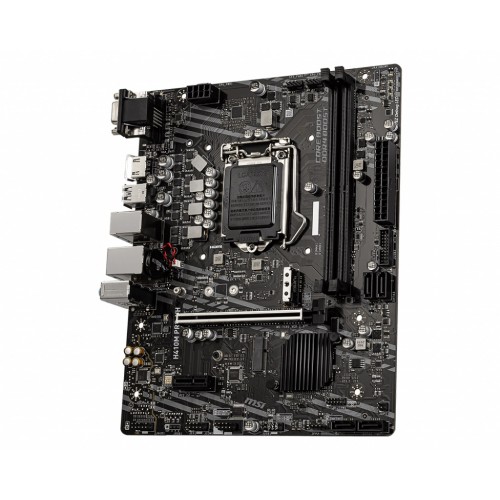

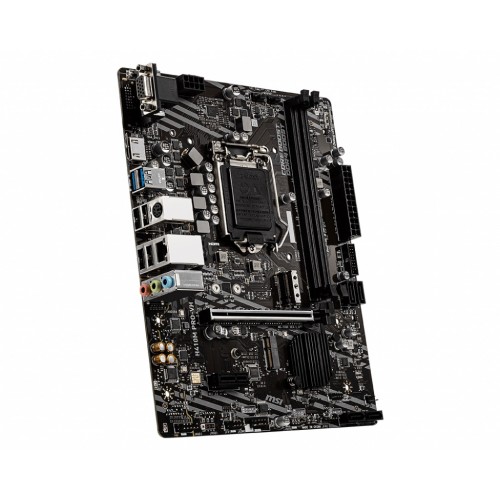

Model | MSI H410M PRO-VH | |
Chipset | Intel H410 | |
Form Factor | Mirco-ATX | |
Additional Info | ||
TPM Port | Yes | |
Others | 1x 4-pin CPU fan connector, 1x 4-pin system fan connector, 1x Front panel audio connector, 2x Front panel connectors, 1x Serial port connector, 1x TPM module connector, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 4x EZ Debug LED, 6 mounting holes | |
Memory Specifications | ||
Type | DDR4 | |
MHz | Intel Core i7/ i9 (2933MHz), Intel Core i5 and below (2666/ 2400/ 2133MHz) | |
Channel | Dual | |
Slot | 2 | |
Max | 64GB | |
Optane Memory Support | No | |
Graphics Specifications | ||
Graphics | Integrated Graphics | |
PCI Express Slot | 1x PCIe 3.0 x16 slot, 1x PCIe 3.0 x1 slot | |
DirectX Support | 12 | |
Warranty Information | ||
Manufacturing Warranty | 03 Years | |
Compatibility | ||
Sockets Supported | LGA1200 | |
Supported CPU | Intel Core i9 / i7 / i5 / i3 / Pentium Gold / Celeron Processors | |
Generation | 10th | |
Supported Operating System | Windows 10 | |
Storage | ||
Storage Interface | 6.0Gb/s | |
M.2/SSD Expansion Slot | 1 | |
SATA Port | 4 x SATA | |
Network & Connectivity | ||
LAN Chipset | Intel I219V | |
LAN Speed (Mbps) | 10/100/1000 Mbps | |

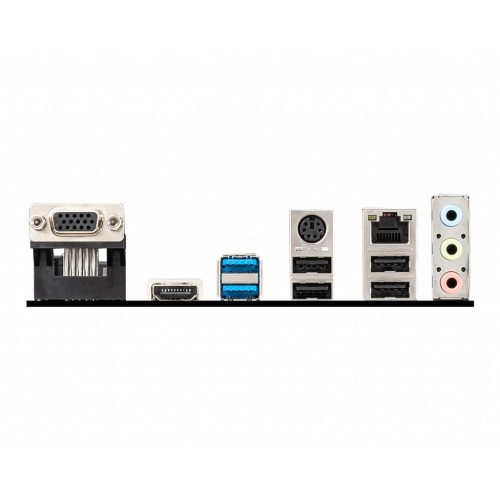

Ports | ||
USB Port | 4 x USB 3.2 Gen 1 Type-A, 6 x USB 2.0 | |
VGA Port | 1 | |
HDMI Port | 1 | |
Audio & Video | ||
Audio Chipset | Audio Chipset. | |
Audio Channel | 7.1 |
The MSI PRO series helps you to work smarter by delivering an efficient and productive experience, it featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. The latest MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. MSI H410M PRO-VH DDR4 Micro-ATX 10th Gen Intel Motherboard supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket, DDR4 Memory, up to 2933(Max) MHz. This motherboard featured with premium layout and digital power design to support more cores and provide better performance, Advanced technology to deliver pure data signals for the best performance and stability. It also comes with Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs. It's Audio Boost reward your ears with studio grade sound quality. For Steel Armor, it protecting VGA cards against bending and EMI for better performance, stability and strength. The MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. This latest MSI H410M PRO-VH DDR4 Micro-ATX 10th Gen Intel Motherboard comes with 03 Years Warranty.
