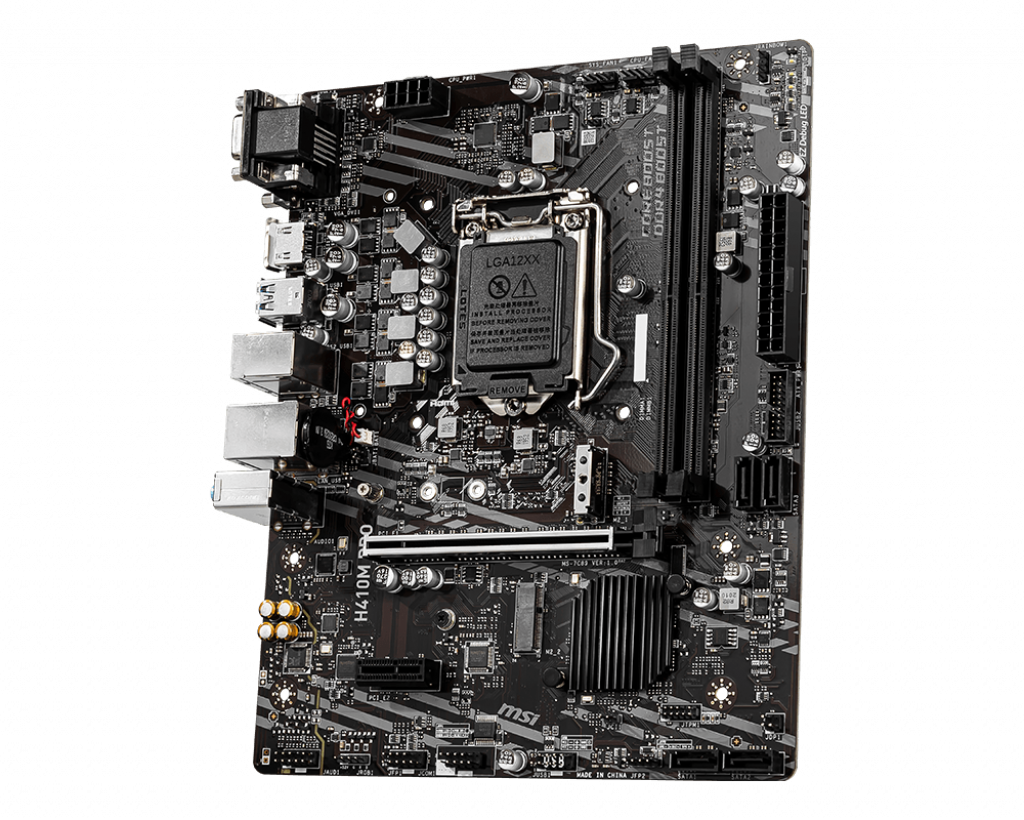

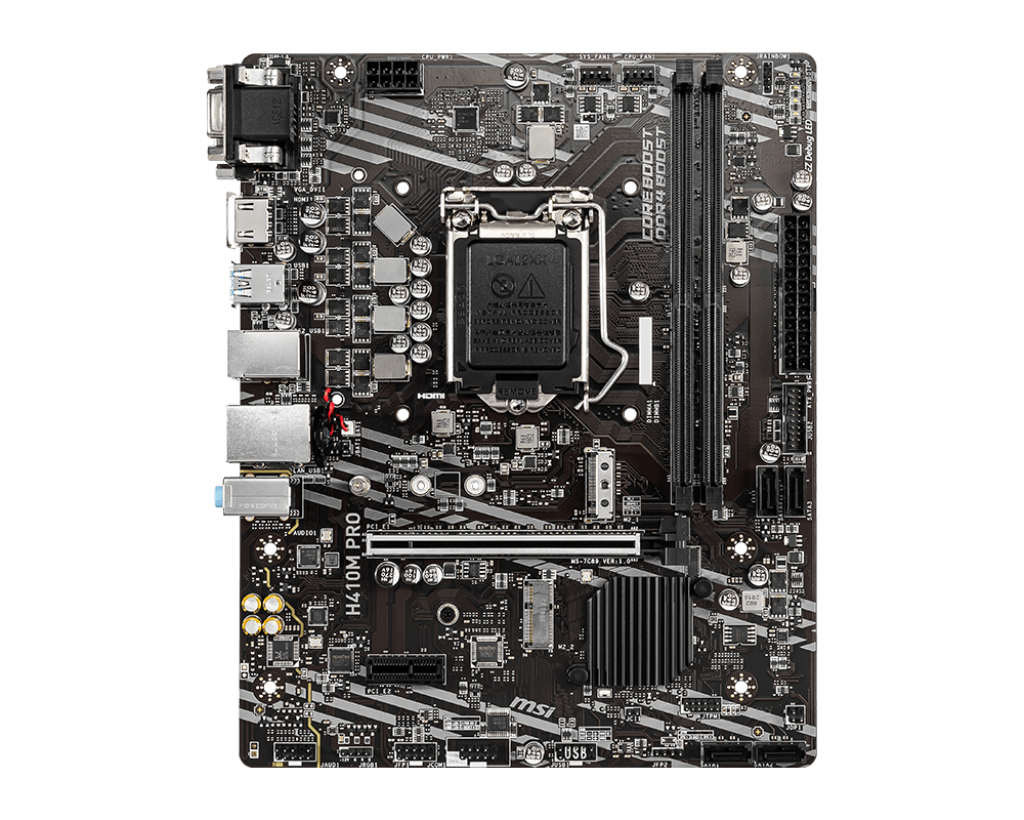

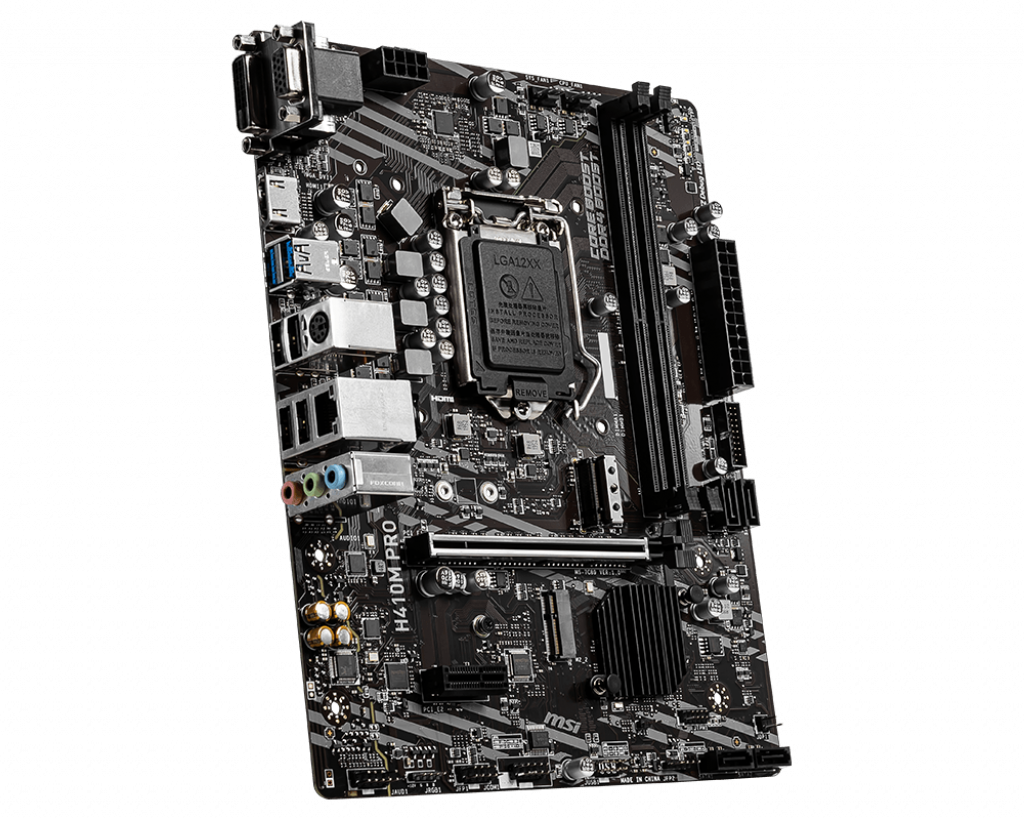

MSI H410M A Pro Intel 10th Gen Micro-ATX Motherboard

(0 reviews)

  • Price : TK.7500
  • Brand : MSI
  • Model : H410M A Pro
  • Product Code : TLB-131
  • Status :

Quantity:

Total Price:

Payment:

Share:

Specificaions :

Technical Specification
Expansion Slots 1x PCIe 3.0 x16 slot (From CPU) 1x PCIe 3.0 x1 slot (From PCH), 1x M.2 slot (Key M) -M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices 1x M.2 slot with E key for WiFi module only
Basic Information
Supported CPU Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket
Chipset Intel H410
Form Factor Mirco-ATX Form Factor: 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)
Physical Description
HDMI 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
USB (s) 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports
LAN Port (s) 1x Intel I219V Gigabit LAN controller
Supported Storage Intel H410 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) -M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Audio Realtek ALC892 Codec 7.1-Channel High Definition Audio
Internal I/O Ports 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports) 1x 4-pin CPU fan connec
DVI-D (s) 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
Memory Specifications
Type Dual Channel Memory Architecture
Slots 2 x DIMM
Supported Memory Intel Core i7/ i9 -Supports up to DDR4 2933 MHz Intel Core i5 and below -Supports up to DDR4 2666 MHz Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Mamory 64GB
Graphics Specifications
Graphics 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
Max Shared Memory 1GB
Warranty Information
Manufacturing Warranty 03 Years

MSI H410M A Pro Intel 10th Gen Micro-ATX Motherboard

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. Stay connected with Intel LAN, optimized for stable internet throughput ideal for championship level online plays. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill, and many more to optimize memory modules and configurations. Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Creating a perfect condition to support multi-core CPU running at full speed.


There have been no reviews for this product yet.
