Technical Specification | ||
WiFi | Yes | |
WiFi Technology | Intel Dual Band Wireless-AC 3168, Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed. | |
Bluetooth | 4.2 | |
DisplayPort | No | |
FireWire | No | |
TPM Port | No | |
COM Port | No | |
General | ||

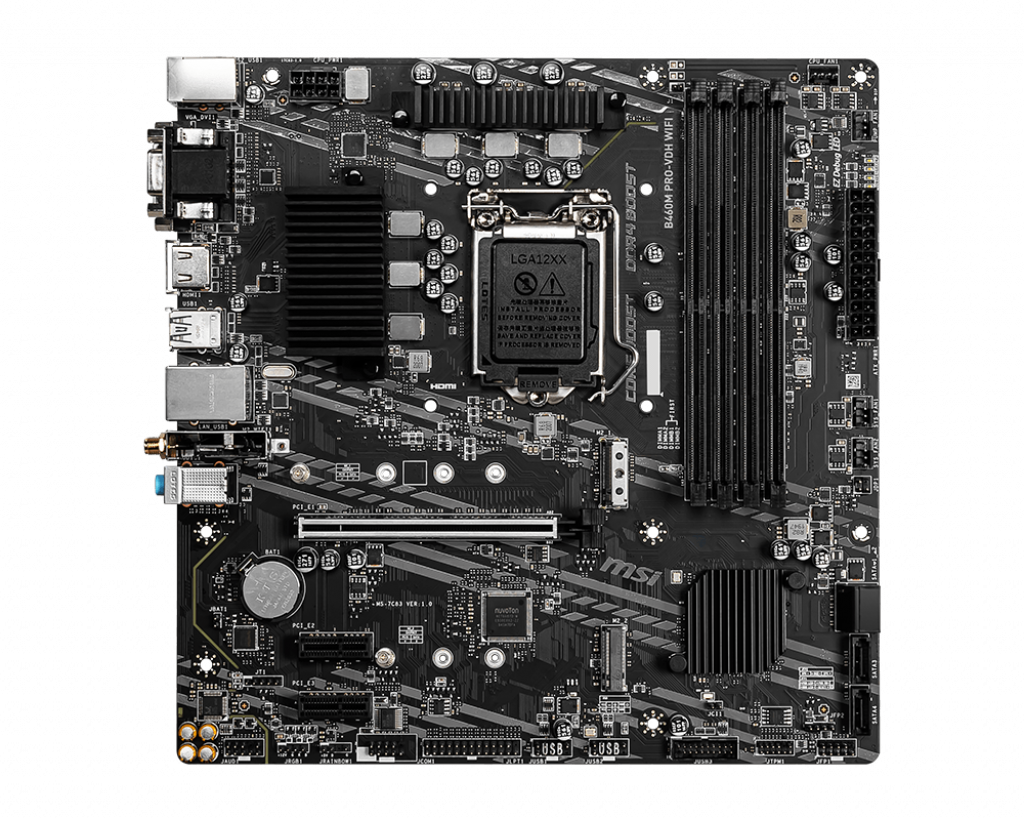

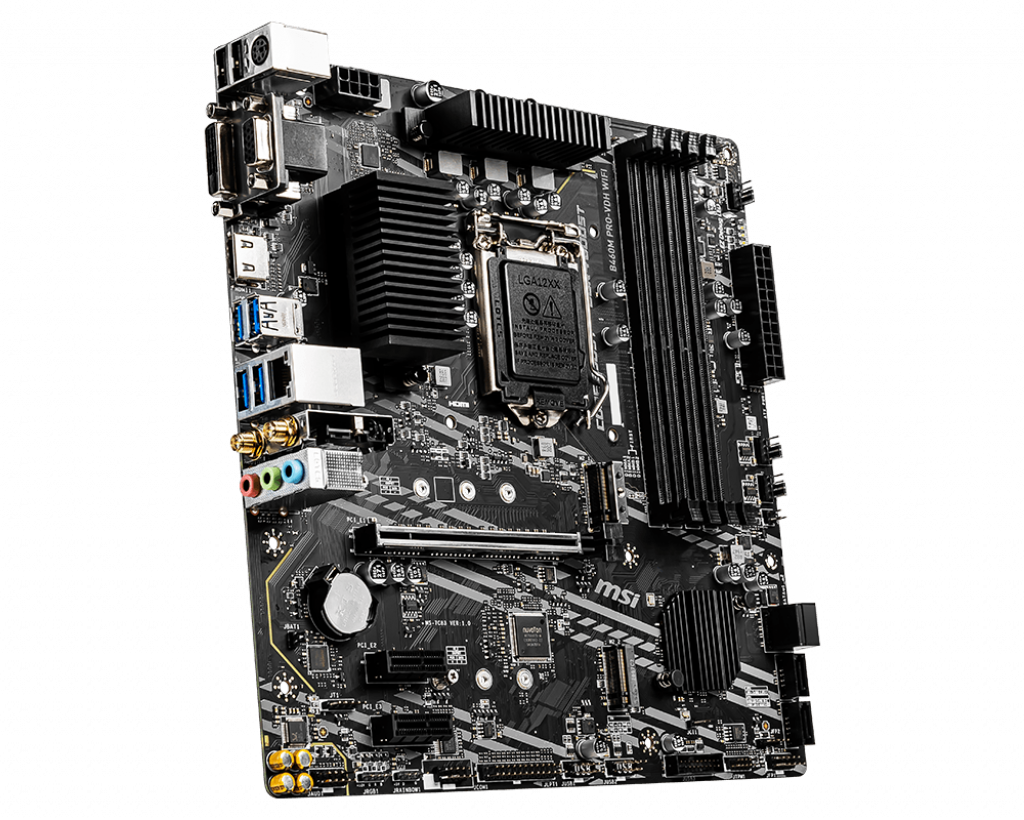

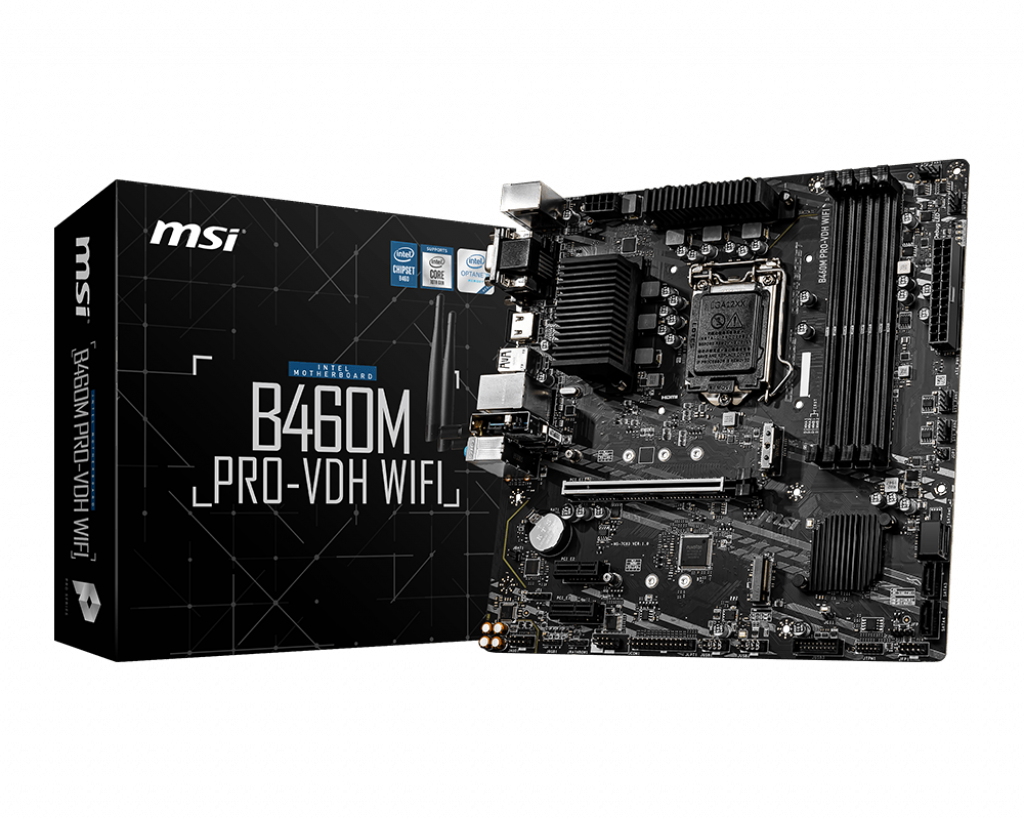

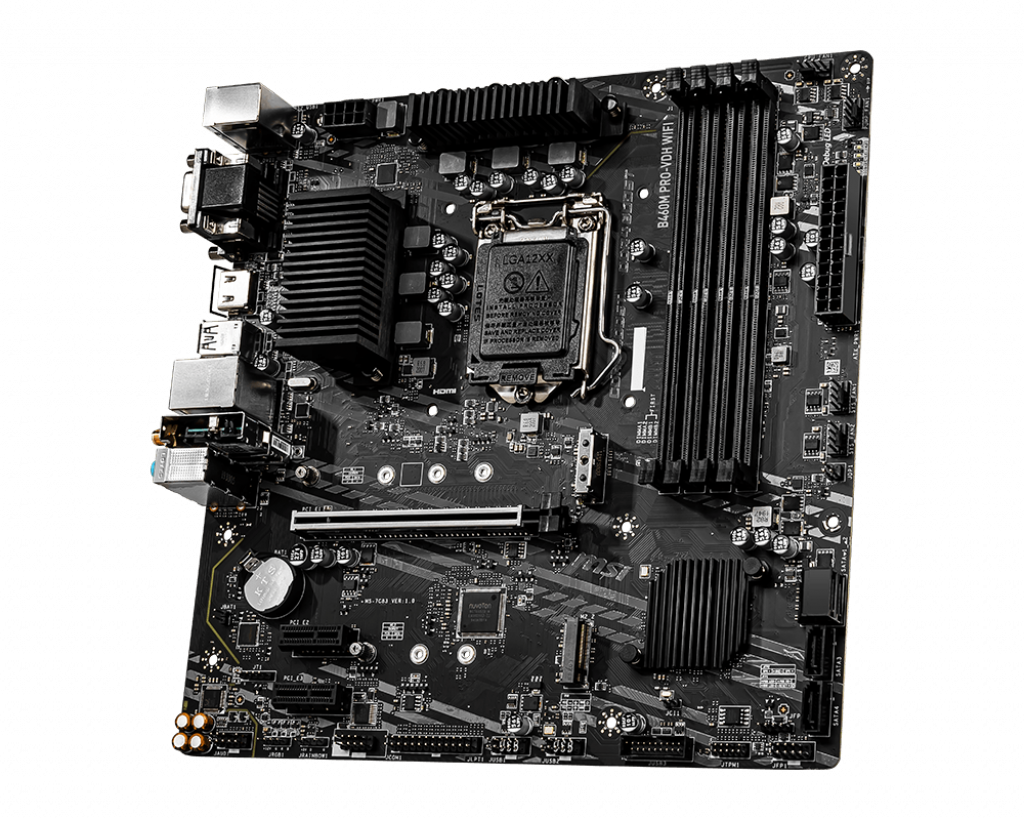

Model | MSI B460M PRO-VDH WIFI | |
Chipset | Intel B460 | |
Form Factor | mATX | |
Memory Specifications | ||
Type | DDR4 | |
MHz | Intel Core i7/ i9 (2933MHz), Intel Core i5 and below (2666/ 2400/ 2133MHz) | |
Channel | Dual | |
Slot | 4 | |
Max | 128GB | |
Optane Memory Support | Yes | |
Graphics Specifications | ||
Multi-GPU Support | No | |
PCI Express Slot | 1x PCIe 3.0 x16 (from CPU), 2 x PCIe x1 (from PCH) | |
DirectX Support | 12 | |
CrossFire Support | No | |
Sli Support | No | |
Warranty Information | ||
Manufacturing Warranty | 03 Years | |
Compatibility | ||
Sockets Supported | LGA1200 | |
Supported CPU | Intel Core and Pentium Gold / Celeron processors | |
Generation | 10th | |
Supported Operating System | Windows 10 | |
Storage | ||
Storage Interface | 6.0Gb/s | |
M.2/SSD Expansion Slot | 2 | |
SATA Port | 4 x SATA | |
Raid Support | 0, 1, 5, 10 | |
Network & Connectivity | ||
LAN Chipset | Realtek RTL8111H Gigabit | |

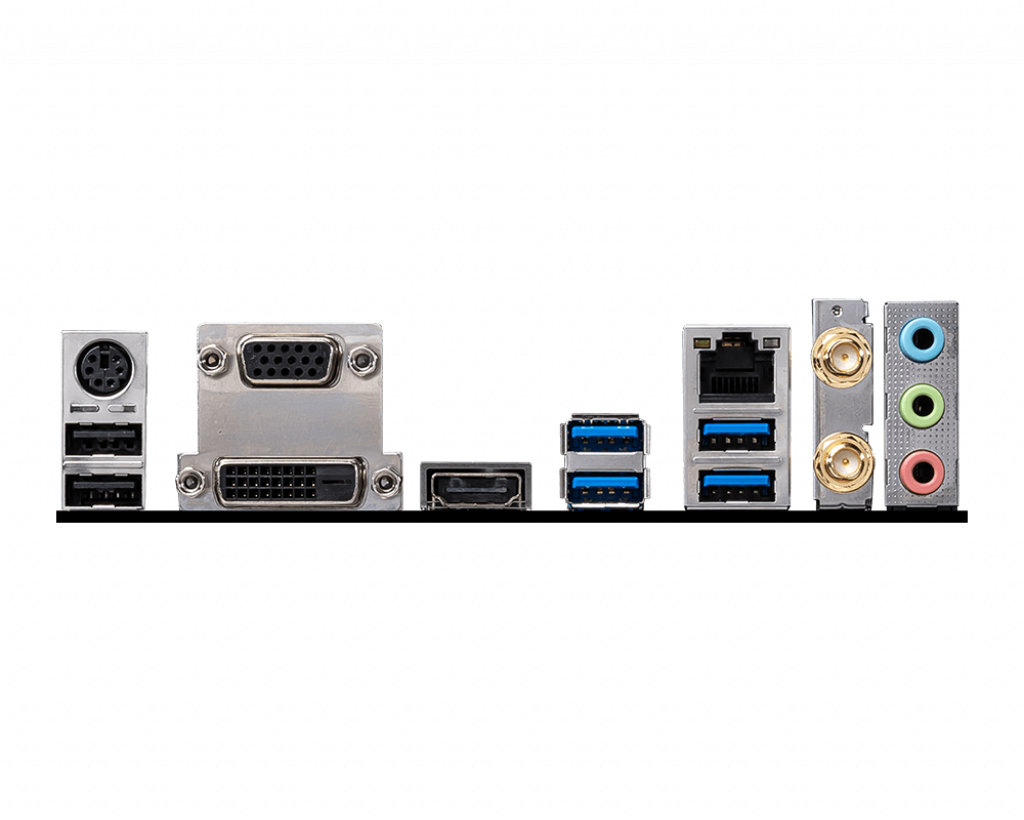

Ports | ||
USB Port | 6 x USB3.2 Gen 1 5Gbps (Type-A), 6 x USB2.0 | |
VGA Port | 1 | |
DVI Port | 1 | |
HDMI Port | 1 | |
Audio & Video | ||
Audio Chipset | Realtek ALC892 | |
Audio Channel | 7.1 |
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.
MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.
Brand - MSI, Model - MSI B460M PRO-VDH WIFI, CPU Sockets - LGA1200, Chipset - Intel B460 Chipset, Supported CPU - Intel Core and Pentium Gold / Celeron processors, Generation - 10th, Memory Type - DDR4, Memory MHz - Intel Core i7/ i9 (2933MHz), Intel Core i5 and below (2666/ 2400/ 2133MHz), Memory Channel - Dual Channel, Memory Slot - 4, Memory Max. - 128GB, Optane Memory Support - Yes, Multi-GPU Support - No, PCI Express Slot - 1x PCIe 3.0 x16 (from CPU), 2 x PCIe x1 (from PCH), Storage Interface - 6Gb/s, M.2 Slot - 2x M.2 (1x M2 (supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices), 1 x M2 (supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices)), LAN Chipset - Realtek RTL8111H Gigabit, Audio Chipset - Realtek ALC892, Audio Channel - 7.1-Channel, Wi-Fi - Yes, Wi-Fi Technology - Intel Dual Band Wireless-AC 3168, Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed., Bluetooth - Bluetooth 4.2, USB Port - 6 x USB3.2 Gen 1 5Gbps (Type-A), 6 x USB2.0, VGA Port - 1, DVI Port - 1, HDMI Port - 1, DisplayPort (DP) - No, IDE Port - No, SATA Port - 4 x SATA, DirectX Support - 12, FireWire - No, CrossFire Support - No, Sli Support - No, RaidSupport - 0, 1, 5, 10, Thunderbolt - No, TPM Port - Yes, COM Port - No, Form Factor - mATX, Supported Operating System - Windows 10, Special Features - Core Boost With premium layout and optimized power design to support more cores and provide better performance, DDR4 Boost Advanced technology to deliver pure data signals for the best gaming performance and stability, EZ Debug LED Easiest way to troubleshoot, PCI-E Steel Armor Protecting VGA cards against bending and EMI Intel WiFi solution Build in Intel Wi-Fi / Bluetooth, delivering AC speeds up to 433Mbps without any cable limitation, Mystic Light Extension Control additional RGB or Rainbow strip added to your system with Dragon Center, Audio Boost Reward your ears with studio grade sound quality for the most immersive audio experience, Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket, Supports DDR4 Memory, up to 2933(Max) MHz, Core Boost: With premium layout and digital power design to support more cores and provide better performance, DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability, Twin Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs, Audio Boost: Reward your ears with studio grade sound quality, Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength, Others - Wi-Fi / BT: Intel Wireless-AC 3168 / Bluetooth 4.2, 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin CPU fan connector, 1x 4-pin water pump connector, 2 x 4-pin system fan connectors, 1 x front panel audio connector, 2 x system panel connectors, 1 x parallel port connector, 1 x serial port connector, 1 x Chassis Intrusion connector, 1 x Clear CMOS jumper, 1 x 4-pin RGB LED connector, 1 x 3-pin RAINBOW LED connector, 1 x TPM module connector, Warranty - 3 Year
