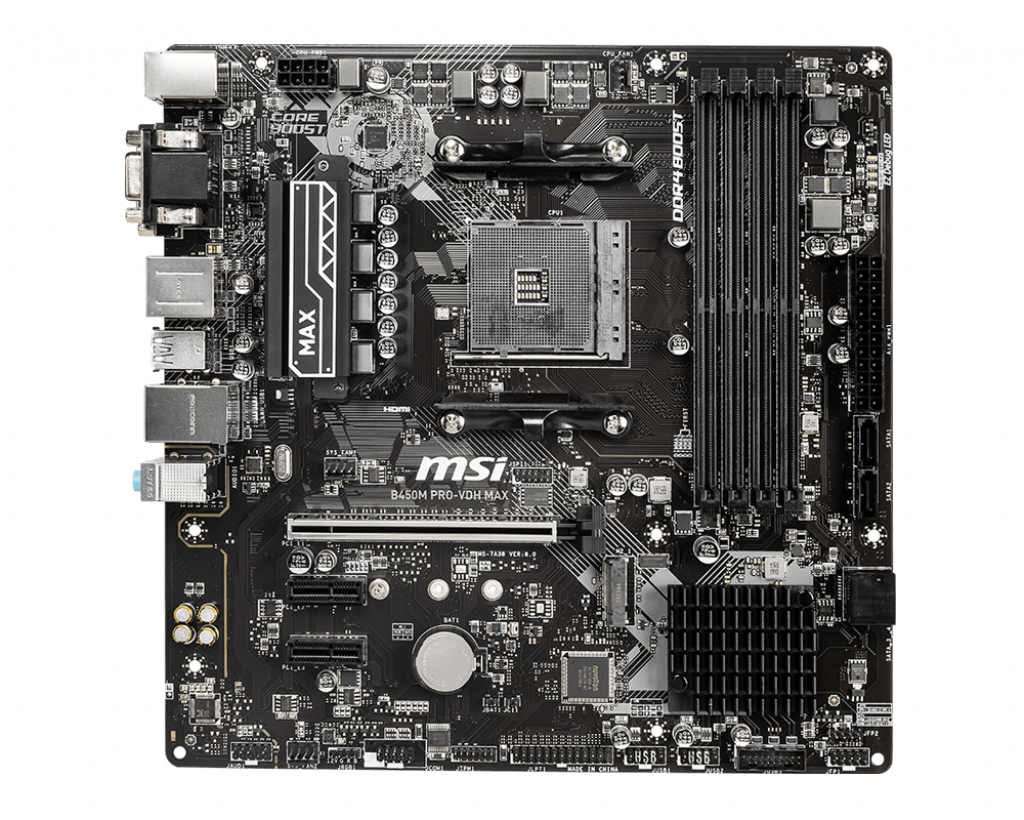

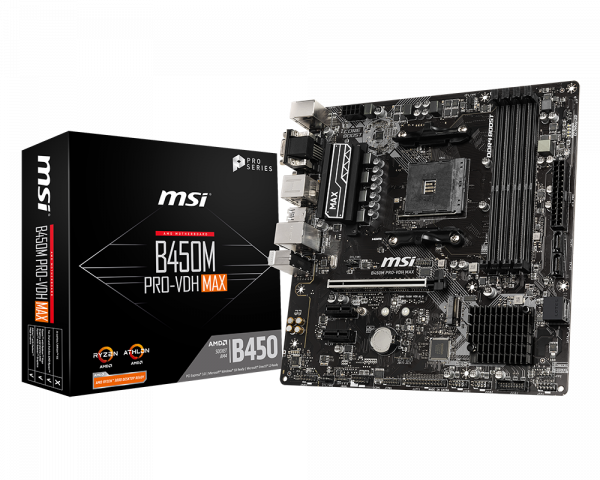

MSI B450M Pro vdh Max
Price : TK.8200
Brand : MSI
Model : MSI B450M Pro vdh Max
Product Code : TLB-47
Status :
- Out of stock
Payment:
Share:
Related Products
Biostar H310MHP DDR4 Motherboard
TK.6900
Specificaions :
| Technical Specification | ||
| Socket | AM4 | |
| CPU (Max Support) | Ryzen 9 | |
| Chipset | AMD® B450 Chipset | |
| DDR4 Memory | 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) For AMD Ryzen Gen3 (R5/R7/R9) 2667/2800/2933/3000/3066/3200/3466/3733/3866 by A-XMP OC mode For AMD Other CPU 2667/2800/2933/3000/3066/3200/3466 by A-XMP OC mode | |
| Memory Channel | Dual | |
| DIMM Slots | 4 | |
| Max Memory (GB) | 128 | |
| PCI-E x16 | 1 | |
| PCI-E x1 | 2 | |
| SATAIII | 4 | |
| M.2 Slot | 1 | |
| TPM (header) | 1 | |
| LAN | 1x Realtek® 8111H Gigabit LAN controller | |
| USB 3.2 ports (Front) | 2(Gen1, Type A) | |
| USB 3.2 ports (Rear) | 4(Gen1, Type A) | |
| USB 2.0 ports (Front) | 4 | |
| USB 2.0 ports (Rear) | 4 | |
| Serial ports(Front) | 1 | |
| Parallel Port(Front) | 1 | |
| Audio ports (Rear) | Realtek® ALC892/ALC897 Codec | |
| DVI-D | 1 | |
| VGA | 1 | |
| HDMI | 1 | |
| DirectX | 12 | |
| Form Factor | m-ATX | |
| Operating System | Support for Windows® 10 64-bit Support for Windows® 7 64-bit * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. | |
Processor
Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4Memory
- 4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.1
- Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
- For AMD Ryzen Gen3 (R5/R7/R9)
- Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866 MHz (by A-XMP OC MODE)
- For AMD Other Processors
- Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
- Supports Dual Channel mode
- Supports ECC UDIMM memory (non-ECC mode)
- Support non-ECC UDIMM memory
Slots
- 1 x PCIe 3.0 x16 slot
- 1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode
- Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode
- Athlon™ with Radeon™ Vega Graphics support x4 mode
- 2 x PCIe 2.0 x1 slots
Operating System
Support for Windows® 10 64-bitSupport for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
