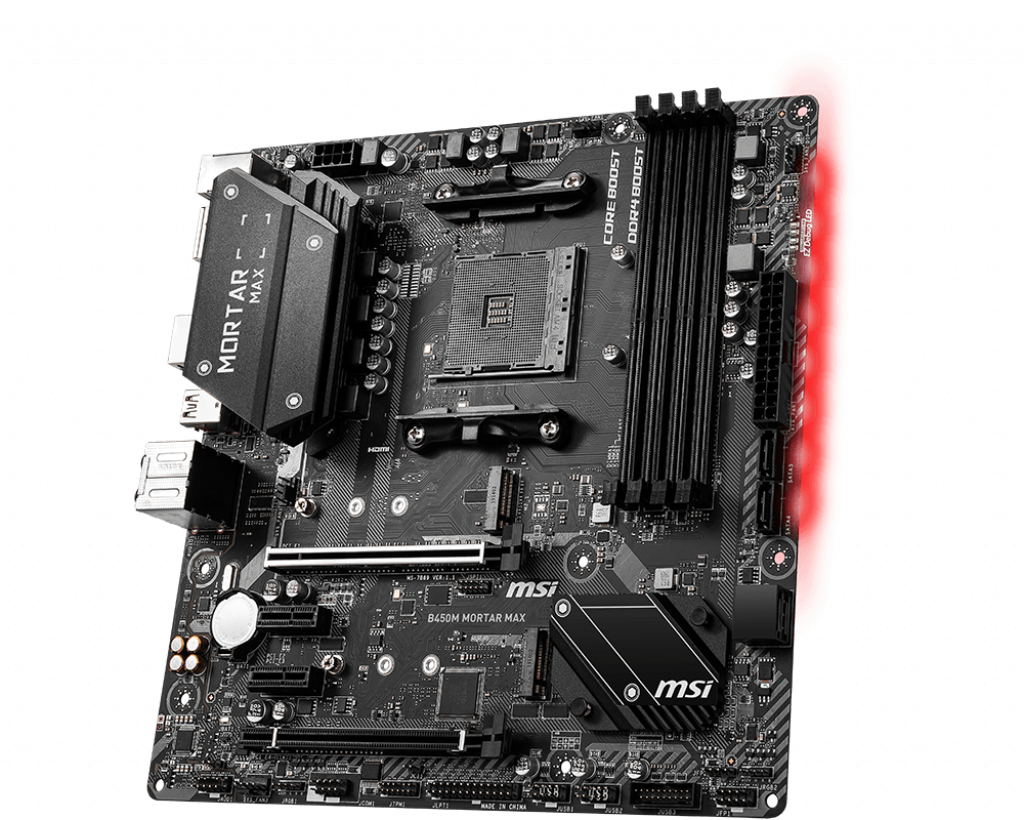

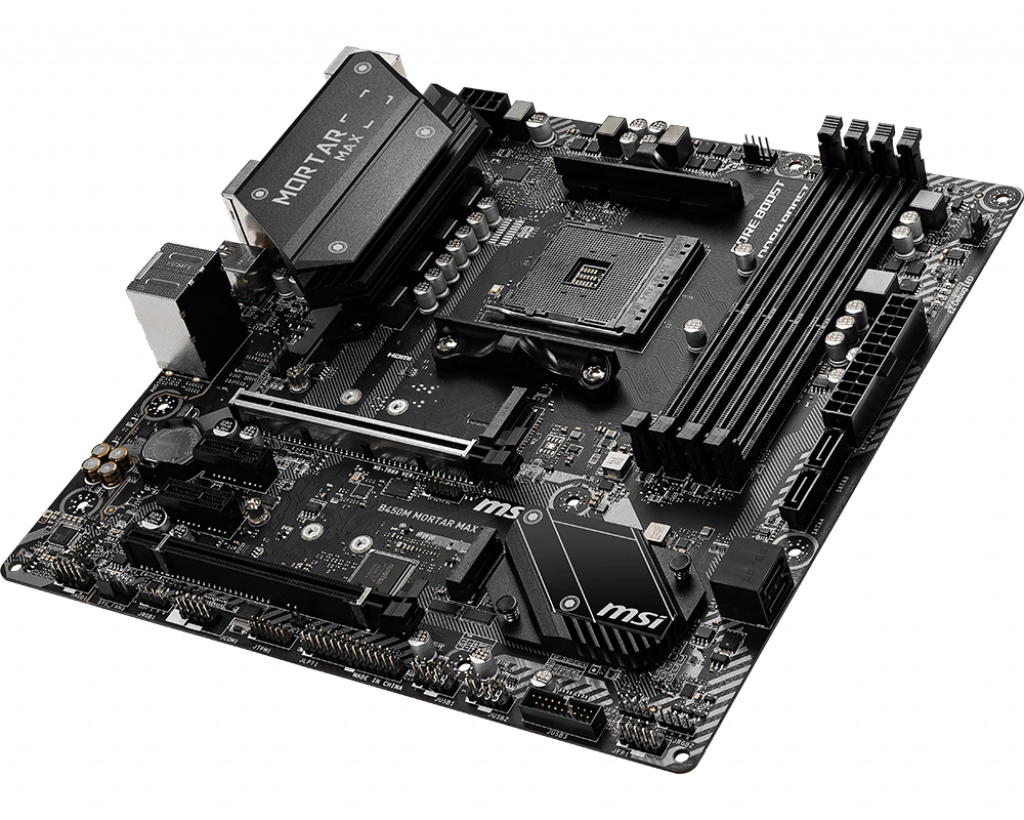

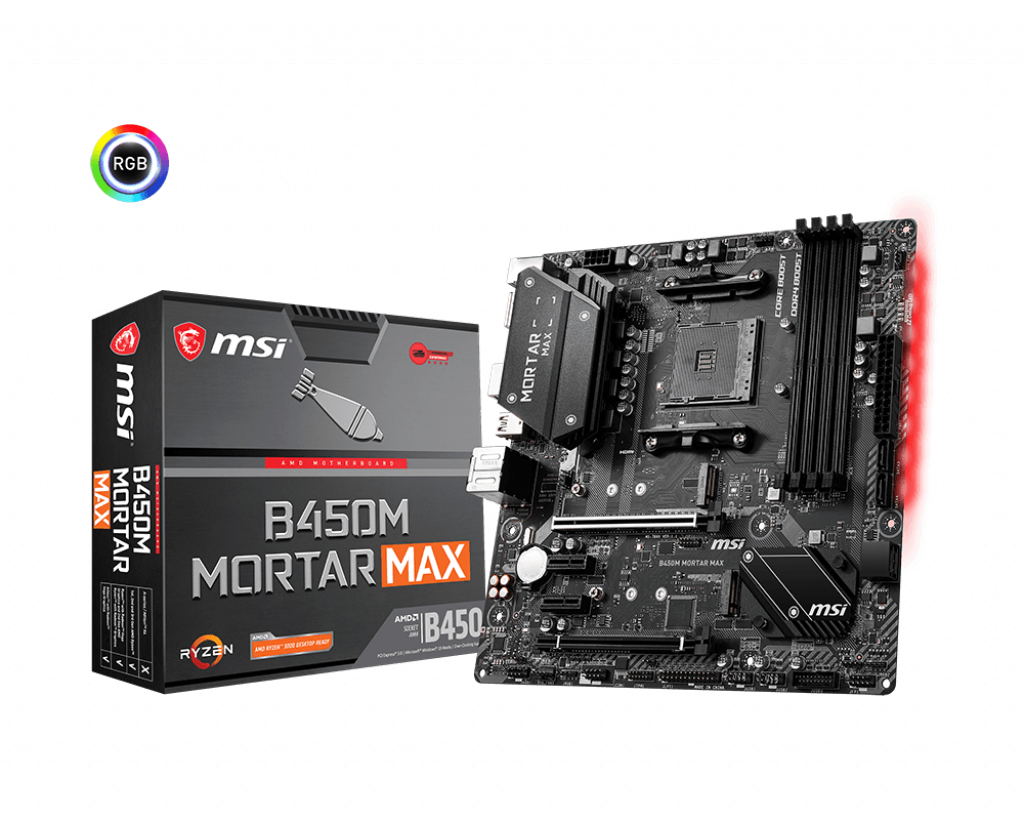

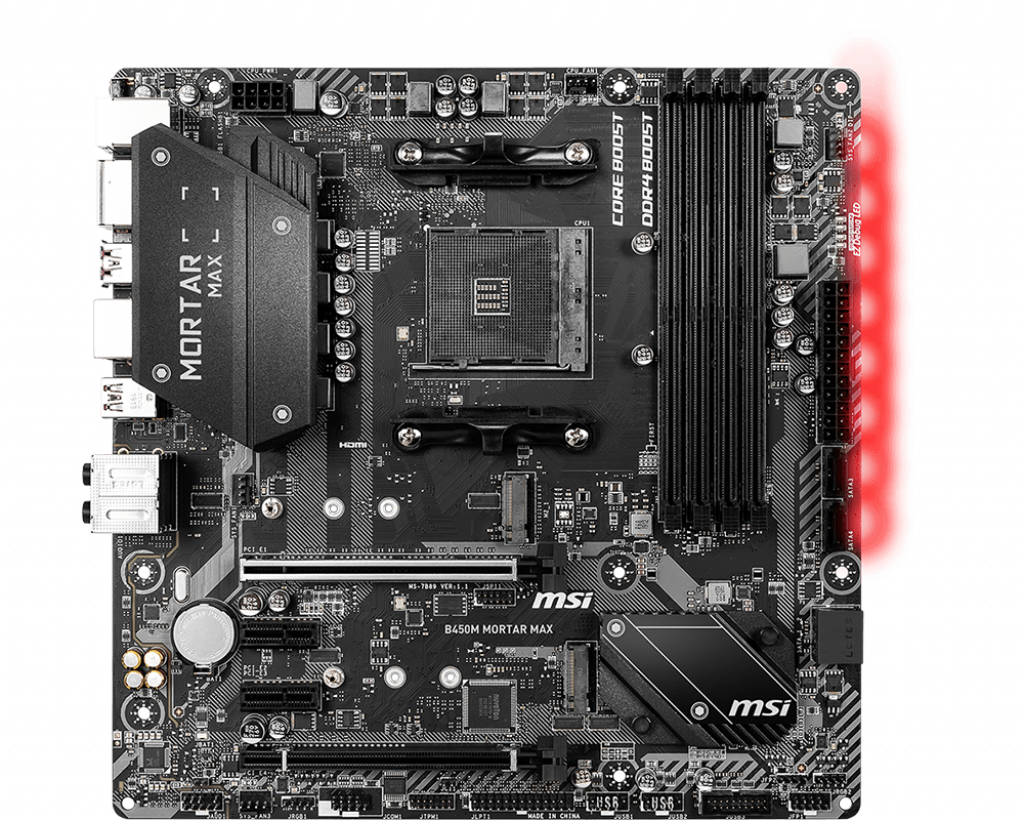

MSI B450M Mortar Max DDR4 AMD AM4 Motherboard

MSI B450M Mortar Max

Military style with Extended heatsink design for better thermal solution, DDR4 Boost, Core Boost, Turbo M.2 and USB 3.2 Gen2 connector

• Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
• Supports DDR4 Memory, up to 4133(OC) MHz
• Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
• Lightning Fast Game experience: 1x TURBO M.2, AMD Turbo USB 3.2 GEN2, Store MI technology
• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
• DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability
• MULTI-GPU: With PCI-E STEEL ARMOR slot. Supports 2-Way AMD Crossfire
• Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.

DIY FRIENDLY

MSI motherboards been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want.

STAY COOL FOR ULTIMATE GAMING PERFORMANCE

Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.

FULLY CONTROLLABLE FAN HEADERS

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans, giving you full control to set up a cool & silent system. The fan headers are conveniently placed with the most popular CPU coolers in mind.

USER FRIENDLY DESIGN

MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard and gaming rig without any issue.

MAXIMUM COMPATIBILITY

MAXIMUM COMPATIBILITY Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part - memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility, so you confirm and choose any gaming rig as you want.

RYZEN PROCESSORS SUPPORT

MSI AM4 motherboards perfectly support AMD Ryzen processors. Combining MSI Core Boost, you can release maximum performance no matter what CPU you use.

MSI APP PLAYER

Developed under an exclusive partnership with BlueStacks, the MSI APP Player brings seamless mobile gaming experiences to PCs. Leverage the advantages of mouse and keyboard controls, better graphics, and multi-tasking for mobile gaming supremacy.

PERFORMANCE ENHANCING APPS

Complete your high performance experience with an array of performance enhancing software from MSI. From a loaded yet easy to use BIOS to potent live system tools, get the most out of your motherboard at any moment.

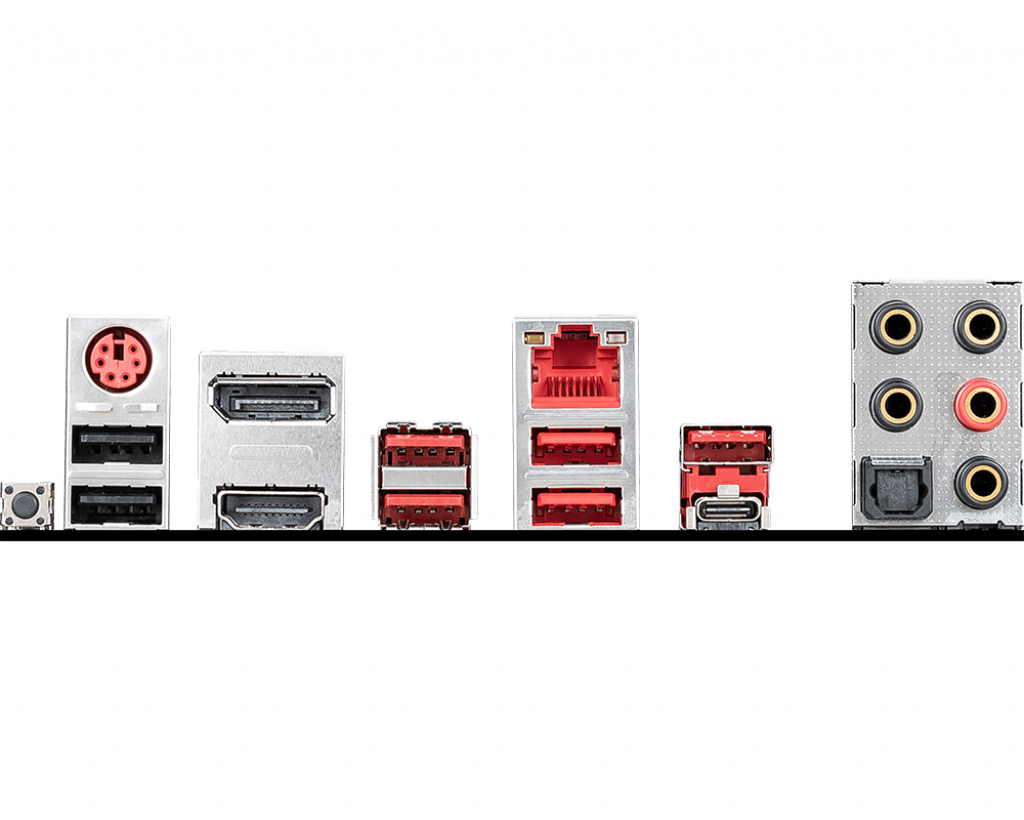

Model - MSI B450M Mortar Max, CPU Sockets - AM4, Chipset - AMD B450 Chipset, Supported CPU - AMD Ryzen 1st/2nd/3rd Generation / Ryzen with Radeon Vega Graphics Processors & Athlon with Radeon Vega Graphics, Memory Type - DDR4, Memory MHz - 1866/ 2133/ 2400/ 2667Mhz by JEDEC, AMD Ryzen Gen3 (R5/R7/R9) (2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133MHz) (by A-XMP OC MODE), AMD Other CPU (2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz) (by A-XMP OC MODE), Memory Channel - Dual Channel, Memory Slot - 4, Memory Max. - 64GB, Optane Memory Support - No, Graphic - Onboard Graphics, Multi-GPU Support - 2-Way AMD CrossFire, PCI Express Slot - 1 x PCIe 3.0 x16 slot (PCI_E1), 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode), 2 x PCIe 2.0 x1 slots, Storage Interface - 6Gb/s, M.2 Slot - 1 x M.2 slots (Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices), 1 x M.2 slots (Supports PCIe 3.0 x4 or PCIe 3.0 x2 and SATA 6Gb/s 2242/ 2260 /2280 storage devices), LAN Chipset - Realtek RTL8111H-CG Gigabit LAN, LAN Speed (Mbps) - 10/100/1000Mbps, Audio Chipset - Realtek ALC892, Audio Channel - 7.1-Channel, WiFi - No, Bluetooth - No, USB Port - 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 6 x USB 3.2 Gen 1 Type-A, 6 x USB 2.0, VGA Port - No, DVI Port - No, HDMI Port - 1, DisplayPort (DP) - 1, IDE Port - No, SATA Port - 4 x SATA, DirectX Support - 12, FireWire - No, CrossFire Support - Yes, Sli Support - No, RaidSupport - 0,1,10, Thunderbolt - No, TPM Port - Yes, COM Port - No, RGB Support - Yes, RGB Sync - Mystic light, RGB Connector - 2 x 5050 RGB LED strip 12V connectors, Form Factor - Micro ATX, Supported Operating System - Windows 7/10, Special Features - Military style with Extended heatsink design for better thermal solution, DDR4 Boost, Core Boost, Turbo M.2 and USB 3.2 Gen2 connector, Extended Heatsink Design, MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed, Lightning Fast Game experience, Core Boost With premium layout and fully digital power design to support more cores and provide better performance, DDR4 Boost Advanced technology to deliver pure data signals for the best gaming performance and stability, Flash BIOS Button Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card, Arsenal Sticker Area, Extended Heatsinks Design, Heavy plated gaming heatsinks, PCI-E Steel Armor, Turbo M.2, Audio Boost, Others - 2 x M.2 slots, 1 x Display Port, 1 x 4-pin CPU fan connector, 3 x 4-pin system fan connectors, 1 x TPM module connector, 1 x Front panel audio connector, 2 x System panel connectors, 1 x Chassis Intrusion connector, 1 x Clear CMOS jumper, 1 x Serial Port connector, 1 x Parallel Port connector, Flash BIOS Button, HD Audio Connectors, 8 mounting holes, Warranty - 3
