MSI B450 TOMAHAWK MAX

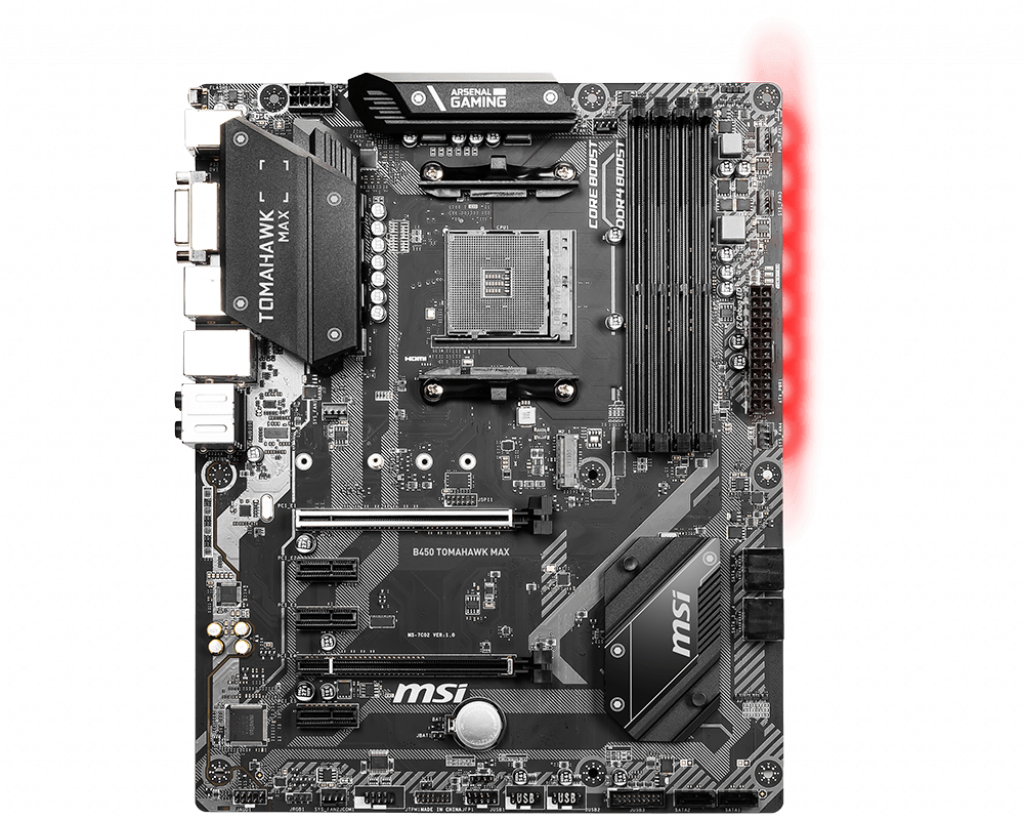

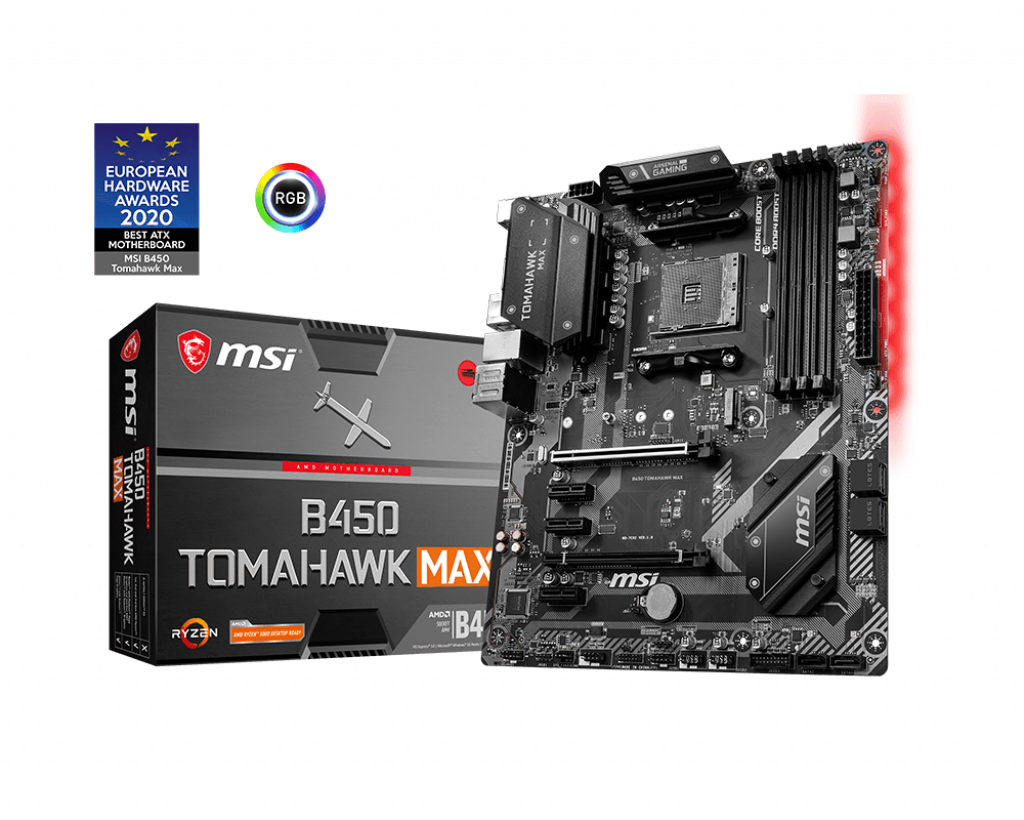

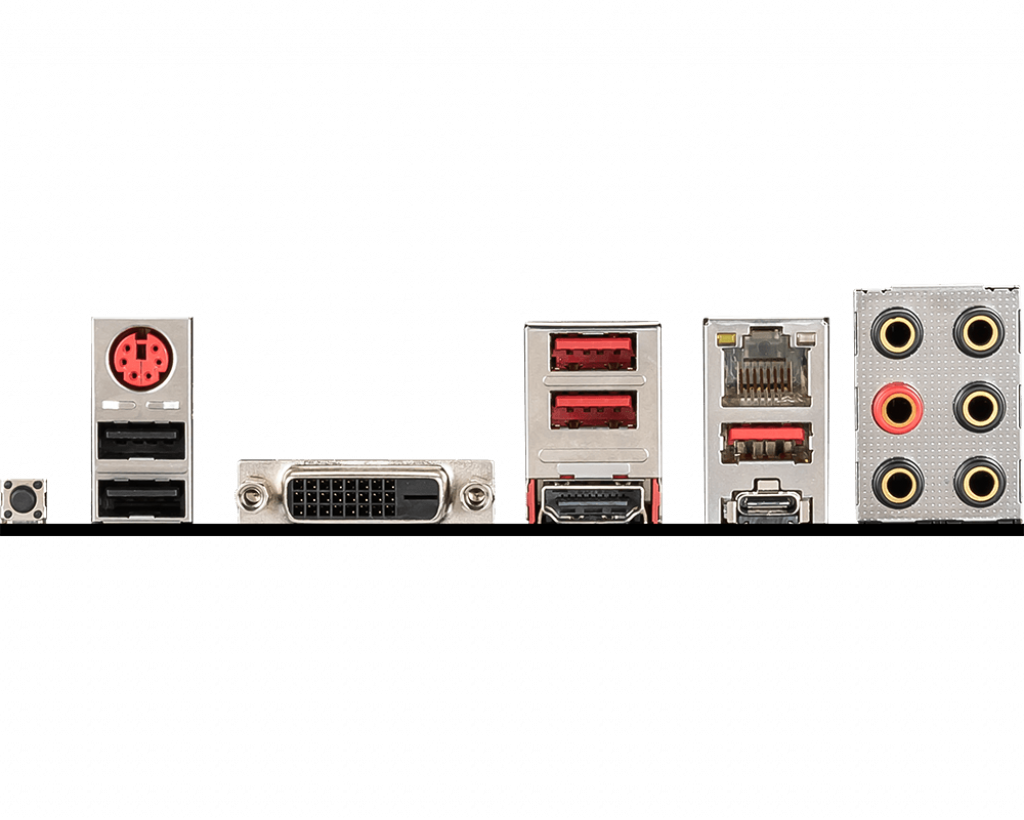

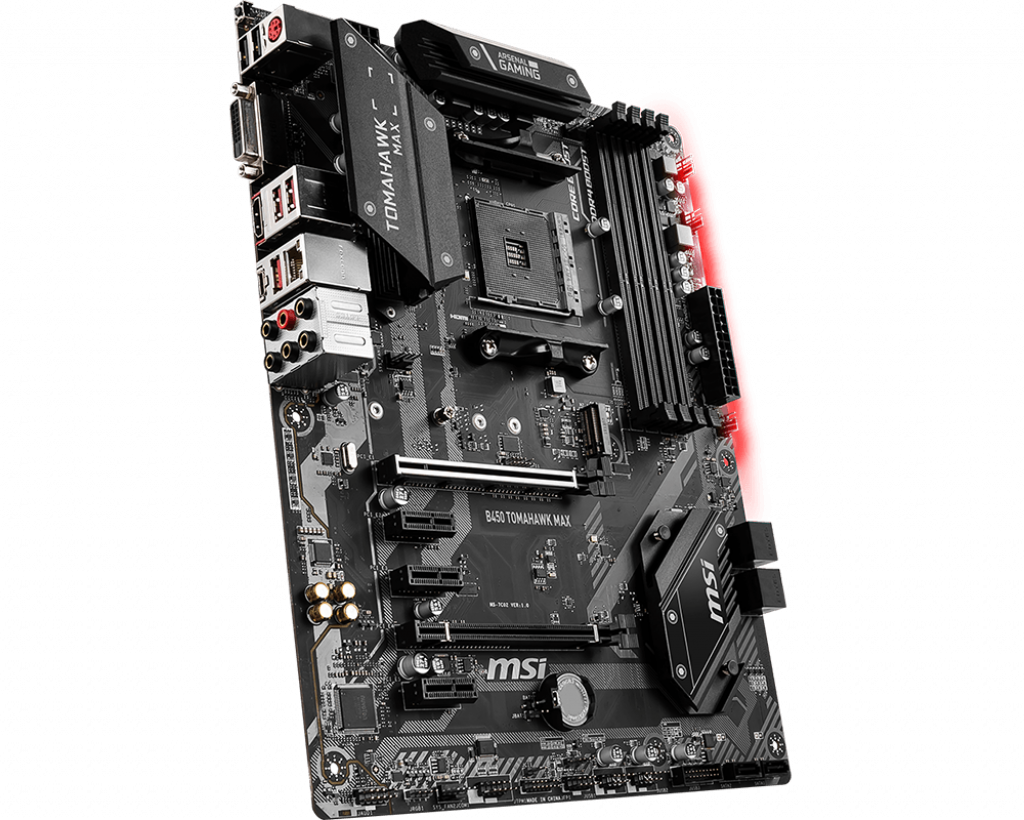

Built on the AMD B450 chipset, the B450 TOMAHAWK MAX AM4 ATX Motherboard supports 3rd generation AMD Ryzen processors with the AM4 socket. Its four memory slots support a max of 64GB of DDR4 RAM that can be overclocked up to 4133 MHz. For storage, there are six SATA III ports as well as a Turbo M.2 slot utilizing the PCIe 3.0 x4 interface. While the motherboard is equipped with DVI-D and HDMI outputs for integrated graphics, it also has a PCIe 3.0 x16 slot for a dedicated graphics card. Other notable integrated features include Realtek ALC892 7.1-Channel HD Audio and Realtek 8111H Gigabit LAN. This motherboard features an extended PWM heatsink and an enhanced circuit design. Equipped with DDR4 Boost, Audio Boost, Core Boost, and EZ Debug LED, the B450 TOMAHAWK MAX provides the performance you need to build your own gaming rig. The right side of the motherboard also supports MSI Mystic Light RGB lighting.

Please note that this motherboard does not currently support the AMD Ryzen 5000 series processors at this time. Support will be added through a BIOS update later in January, 2021.

AMD B450 Chipset

The AMD B450 chipset delivers high performance and flexibility with the AMD AM4-socket Ryzen processors. It offers AMD StoreMI storage acceleration technology.

MSI Mystic Light RGB Lighting

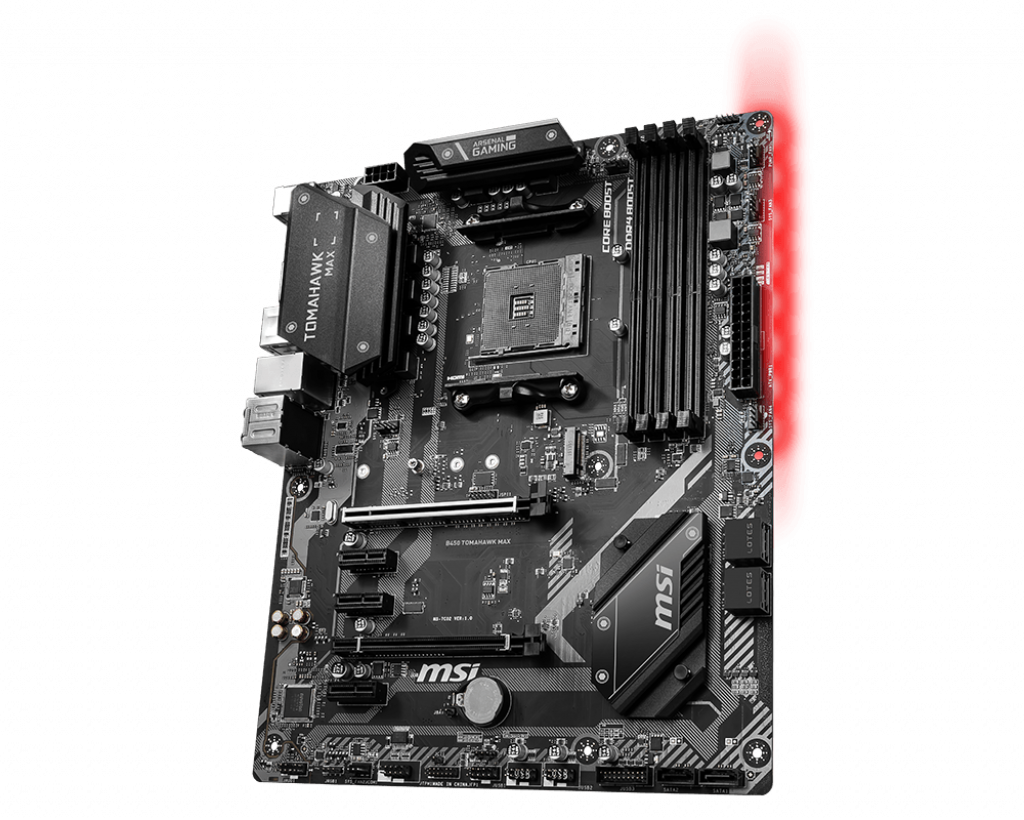

The right side of this motherboard features built-in LED lighting. Choose from over a million colors and a variety of lighting effects to fit your style. You can also sync it with other MSI Mystic Light-compatible hardware and peripherals to complete your build.

Additional Features

• Turbo M.2
• AMD Turbo USB 3.2 Gen 2
• Extended Heatsink Design
• Core Boost
• DDR4 Boost
• Audio Boost
• 2-Way AMD CrossFire
• EZ Debug LED

Model - MSI B450 TOMAHAWK MAX, CPU Sockets - AM4, Chipset - AMD B450 Chipset, Supported CPU - AMD Ryzen 1st/2nd/3rd Generation / Ryzen with Radeon Vega Graphics Processors & Athlon with Radeon Vega Graphics, Memory Type - DDR4, Memory MHz - 1866/ 2133/ 2400/ 2667Mhz by JEDEC, AMD Ryzen Gen3 (R5/R7/R9) (2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133MHz) (by A-XMP OC MODE), AMD Other CPU (2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz) (by A-XMP OC MODE), Memory Channel - Dual Channel, Memory Slot - 4, Memory Max. - 64GB, Optane Memory Support - No, Graphic - Onboard Graphics, Multi-GPU Support - 2-Way AMD CrossFire, PCI Express Slot - 1 x PCIe 3.0 x16 slot (PCI_E1), 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode), 3 x PCIe 2.0 x1 slots, Storage Interface - 6Gb/s, M.2 Slot - 1 x M.2 slot (PCIe 3.0 x4 or PCIe 3.0 x2 and Supports SATA 2242/ 2260 /2280/ 22110 storage devices), LAN Chipset - Realtek 8111H, LAN Speed (Mbps) - 10/100/1000Mbps, Audio Chipset - Realtek ALC892, Audio Channel - 7.1-Channel, WiFi - No, Bluetooth - No, USB Port - 1 x USB3.2 Gen 2 Type-C, 1 x USB3.2 Gen 2 Type-A, 4 x USB3.2 Gen 1 Type-A, 6 x USB2.0, VGA Port - No, DVI Port - 1, HDMI Port - 1, DisplayPort (DP) - No, IDE Port - No, SATA Port - 2 x SATA, 4 x SATA, DirectX Support - 12, FireWire - No, CrossFire Support - Yes, RaidSupport - 0,1,10, Thunderbolt - No, TPM Port - Yes, COM Port - No, Form Factor - ATX, Supported Operating System - Windows 7 / 10, Special Features - Military style with extended heatsink design for better thermal solution, plus DDR4 Boost, Core Boost, Turbo M.2 and USB 3.2 Gen2 connector, Extended Heatsink Design, Lightning Fast Game experience, MULTI-GPU With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire, Flash BIOS Button, Heavy Plated Gaming Heatsinks, Military Style designed for maximum cooling, PCI-E Steel Armor, Arsenal Sticker Area, Free for customization with personal style, Others - 1 x M.2 slot, 1 x 4-pin CPU fan connector, 1 x 4-pin water-pump-fan connector, 1 x TPM module connector, 1 x Front panel audio connector, 1 x Serial Port connector, 1 x Clear CMOS jumper, 9 mounting holes, Warranty - 3 Year
