General | ||

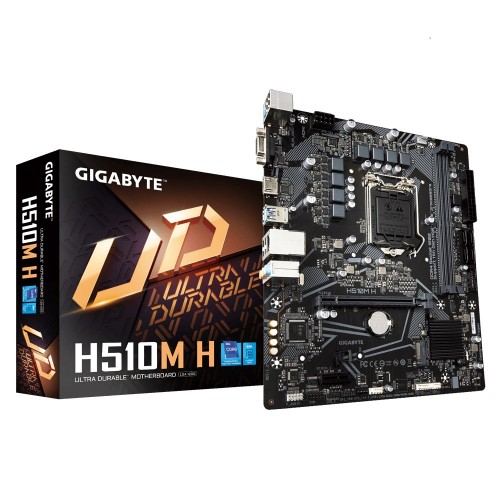

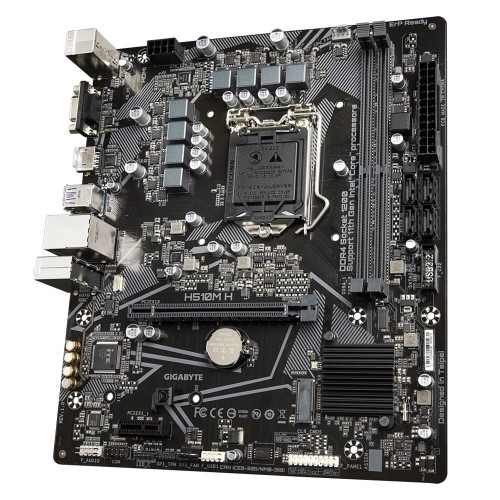

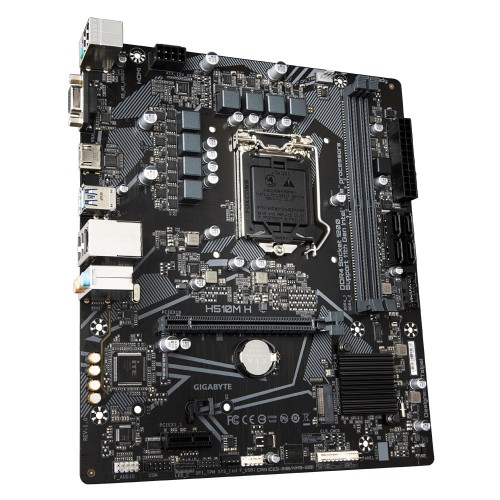

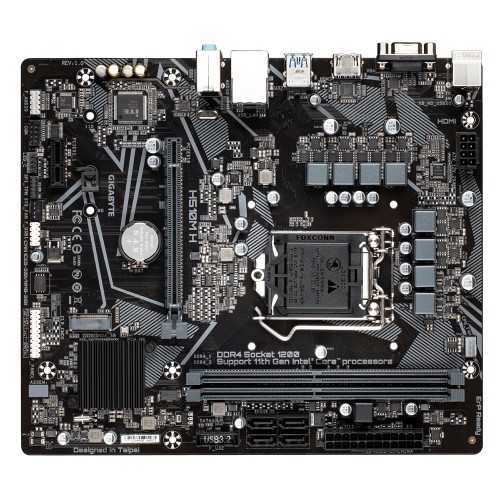

Model | Gigabyte H510M H | |
Chipset | Intel H510 Express | |
Form Factor | Micro ATX | |
Additional Info | ||
BIOS Type | 1 x 256 Mbit flash | |
BIOS Model | AMI UEFI BIOS | |
BIOS Version | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
TPM Port | Yes | |
RGB Support | Yes | |
RGB Sync | Aura Sync | |
RGB Connector | 1 x RGB LED strip header | |
Memory Specifications | ||
Memory Type | DDR4 | |
Memory MHz | 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz | |
Memory Channel | Dual | |
Memory Slot | 2 | |
Memory Max | 64GB | |
Graphics Specifications | ||
PCI Express Slot | 1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x1 slot (PCIEX1) | |
Warranty Information | ||
Manufacturing Warranty | 03 Years | |
Compatibility | ||
Sockets Supported | LGA1200 | |
Supported CPU | Core i9, i7, i5, i3, Pentium, Celeron processors | |
Generation | 10th/11th | |
Supported Operating System | Windows 10 | |
Storage | ||
Storage Interface | 6.0Gb/s | |
M.2/SSD Expansion Slot | 1 | |
SATA Port | 4 | |
Network & Connectivity | ||
LAN Chipset | Realtek GbE LAN | |
LAN Speed (Mbps) | 10/100 Mbit | |
Ports | ||
USB Port | 6 x USB 3.2 Gen 1, 10 x USB 2.0 | |
VGA Port | 1 | |
HDMI Port | 1 | |
Audio & Video | ||
Audio Chipset | Realtek Audio CODEC | |
Audio Channel | 2/4/5.1/7.1 |
Gigabyte H510M H Motherboard supports 11th and 10th Gen Intel Core Series Processors and comes with Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs. It features Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface. It is powered by GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management. Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users with the most comprehensive features and the fastest and smoothest Internet experience. GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. It features an audio noise guard that essentially separates the board’s sensitive analogue audio components from potential noise pollution at the PCB level. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. The Smart Fan 6 contains several unique cooling features that ensure the gaming PC maintain their performance while staying cool and quiet. Each fan headers support PWM and DC fan and Water cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection. The fan can stop completely below users' specified temperature point. It supports GIGABYTE APP Center and you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version. It is very simple and easy to use. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning. It has 3 years Warranty.
