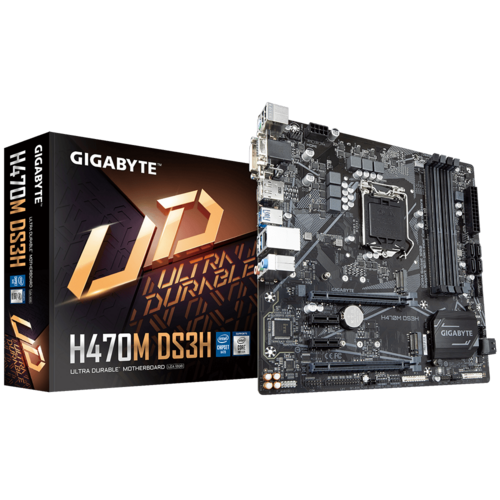

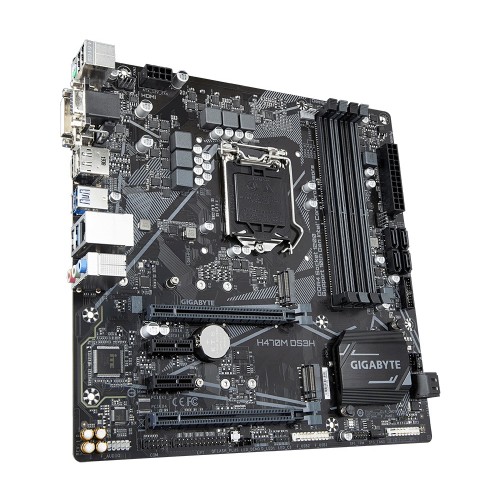

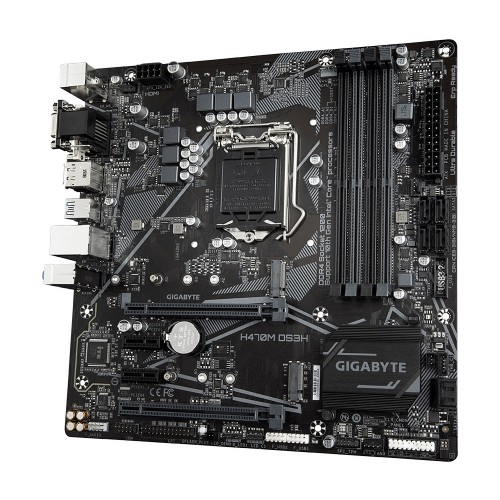

Gigabyte H470M DS3H Ultra durable Intel chipset 10th/11th gen ddr4 motherboard lga-1200
Price : TK.0
Brand : GIGABYTE
Model : Gigabyte H470M DS3H
Warrantty : 3 Year's (Official)
Product Code : TLB-127
Status :
- Out of stock
Payment:
Share:
Related Products
Biostar H310MHP DDR4 Motherboard
TK.6900
Specificaions :
| Technical Specification | ||
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots, 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q) 1 x M.2 connector (Socket 3, M key, ty | |
| Basic Information | ||
| Supported CPU | Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package L3 cache varies with CPU | |
| Chipset | Intel H470 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Physical Description | ||

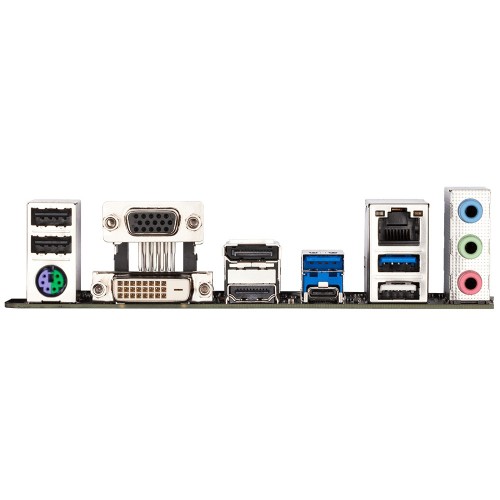

| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz | |
| Display Port (s) | 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz | |
| USB (s) | 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the interna | |
| LAN Port (s) | Intel GbE LAN chip (1000 Mbit/100 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAI | |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front | |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz | |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz | |
| Memory Specifications | ||
| Type | Dual-channel architecture | |
| Slots | 4 x DDR4 DIMM | |
| Supported Memory | Intel Core i9/ i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules Intel Core i5/ i3/ Pentium/ Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate | |
| Maximum Mamory | 128 GB | |
| Graphics Specifications | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz | |
| Max Shared Memory | 512MB | |
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |
Intel® H470 Ultra Durable Motherboard with USB 3.2 Gen1
Type-C™, Dual NVMe PCIe Gen3 X4 M.2 Slots, 2-Way CrossFire™
Multi-Graphics, Intel® GbE with cFosSpeed, 4 Display Interfaces Support, Smart Fan 5, RGB FUSION 2.0
- Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors*
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Dual NVMe PCIe Gen3 X4 M.2 Connectors
- Smart Fan 5 Features Multiple Temperature Sensors,Hybrid Fan Headers with FAN STOP
- Intel® Optane™ Memory Ready
- Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- Intel® USB 3.2 Gen 1 Type-C™ Support
- 4 Display Interfaces Support
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Anti-Sulfur Resistors Design
- Q-Flash Plus Update BIOS without Installing the CPU、Memory and Graphics Card
* Updated BIOS is required for compatibility
