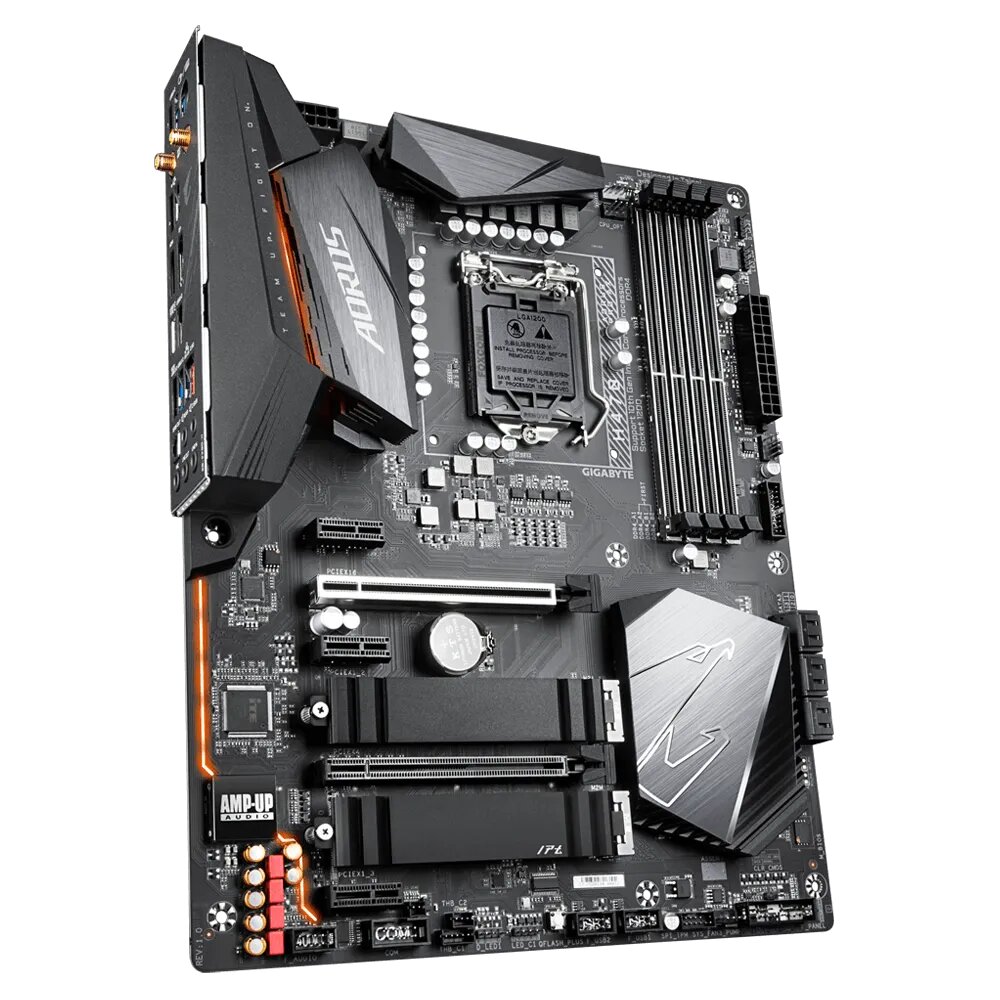

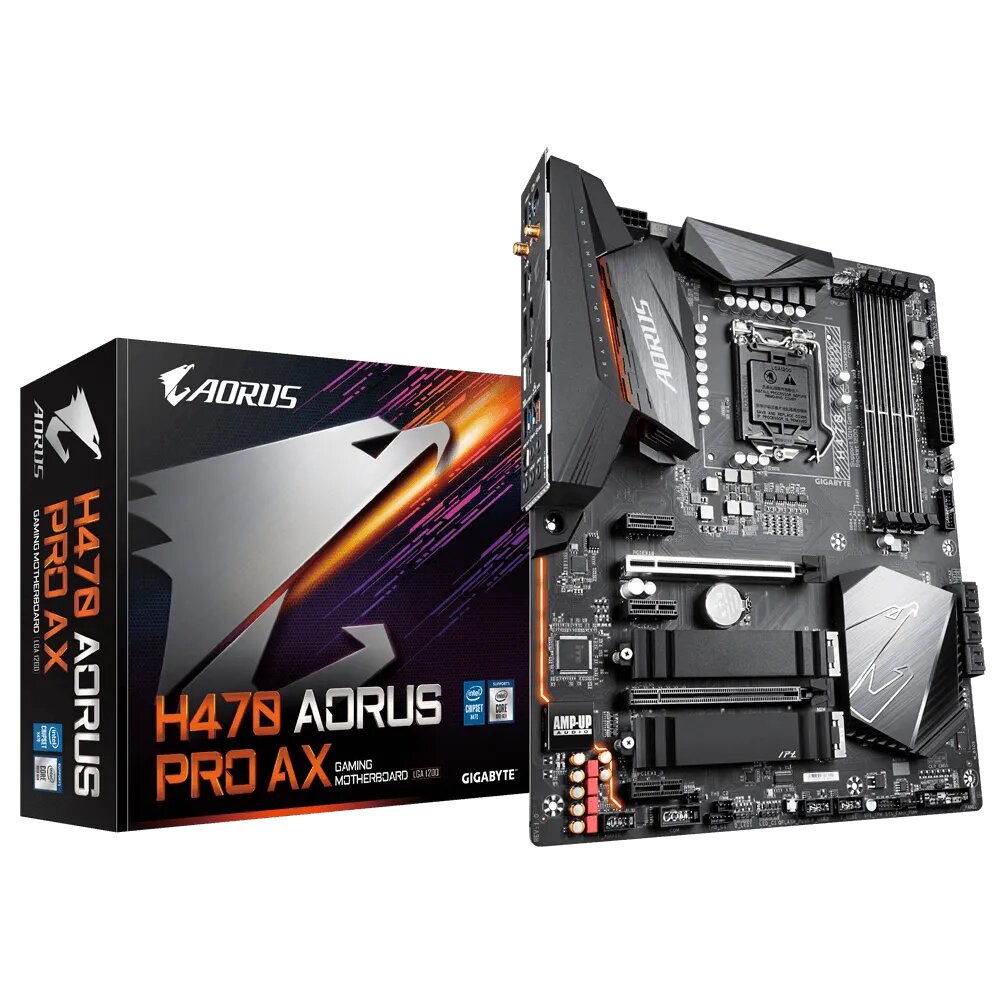

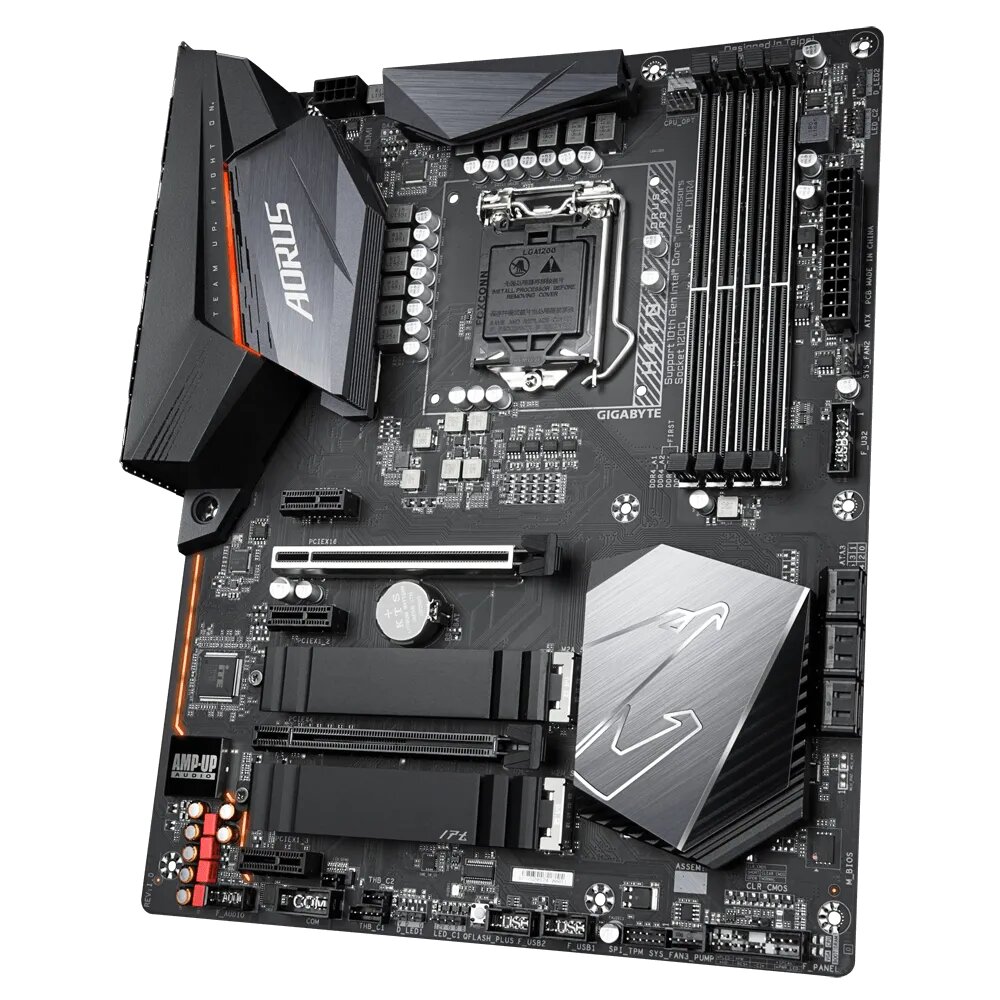

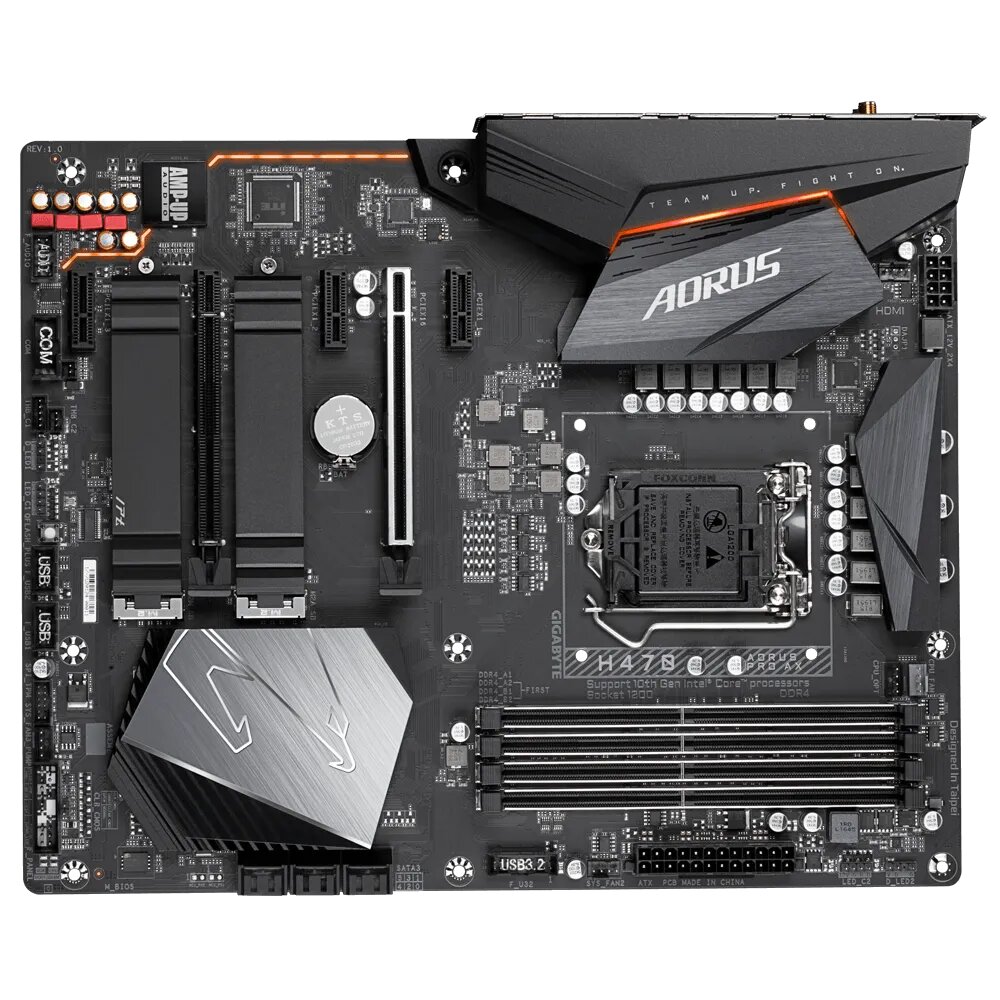

Gigabyte H470 AORUS PRO AX

The Gigabyte H470 AORUS PRO AX LGA 1200 ATX Motherboard is designed around the Intel H470 chipset, supporting 10th Gen Intel Core, Pentium Gold, and Celeron processors with an LGA 1200 socket. It has four memory slots, supporting up to 128GB of dual-channel DDR4 RAM, which can run up to 2933 MHz. There are six SATA III ports and two M.2 slots for storage. This motherboard features an ATX form factor, allowing for use in mid-tower and full-tower cases. Other integrated features include Intel 2.5 Gb/s Ethernet, Realtek 7.1-channel audio support, RGB Fusion 2.0 support, and Gigabyte Q-Flash Plus.

Intel H470 Chipset

This motherboard features the Intel H470 Chipset and the Intel LGA Socket 1200, making it ready for 10th Gen Intel Core, Pentium Gold, and Celeron processors.

Storage

The dual M.2 slots support data transfer rates of up to 32 Gb/s via PCIe 3.0 x4 bandwidth, enabling quicker boot times and app load times with OS or application drives.

Smart Fan 5

Smart Fan 5 keeps your system cool, allowing you to interchange the fan headers to reflect different thermal sensors at different locations on the motherboard. Smart Fan 5 supports both PWM and Voltage mode fans, making this motherboard more liquid cooling friendly.

RGB Fusion 2.0

RGB Fusion 2.0 gives you full control of onboard RGB and external RGB devices and lights. Already feature filled with customizable colors and patterns, RGB Fusion 2.0 also has addressable LED support.

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory, and graphics card with Gigabyte Q-Flash Plus. You don't have to install components or enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file on the USB flash drive, then press the dedicated Q-Flash Plus button.

Model - Gigabyte H470 AORUS PRO AX, CPU Sockets - LGA1200, Chipset - Intel H470 Express, Supported CPU - 10th Generation Intel Core i9/ i7/ i5/ i3/ Pentium/ Celeron Processors, Generation - 10th, Memory Type - DDR4, Memory MHz - Intel Core i9/i7 (2933/2666/2400/2133MHz), Intel Core i5/i3/Pentium/Celeron (2666/2400/2133MHz), Memory Channel - Dual Channel, Memory Slot - 4, Memory Max. - 128GB, Optane Memory Support - Yes, Graphic - Integrated Graphics, Multi-GPU Support - AMD Quad-GPU CrossFire and 2-Way AMD CrossFire, PCI Express Slot - 1 x PCI Express x16 slot, running at x16 (PCIEX16),1 x PCI Express x16 slot, running at x4 (PCIEX4),3 x PCI Express x1 slots, Storage Interface - 6Gb/s, M.2 Slot - 1 x M.2 Socket 3 (Type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD),1 x M.2 Socket 3 (Type 2242/2260/2280/22110 PCIe x4/x2 SSD), LAN Chipset - Intel GbE LAN, LAN Speed (Mbps) - 2.5 Gbit/1 Gbit/100 Mbit, Audio Chipset - Realtek ALC1220-VB, Audio Channel - 2/4/5.1/7.1-channel, WiFi - Yes, WiFi Technology - Intel Wi-Fi 6 AX201, WIFI a/b/g/n/ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band, Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate, Bluetooth - Bluetooth 5.1, USB Port - 1 x USB 3.2 Gen 2 Type-A, 1 x USB Type-C USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 2 x USB 2.0/1.1, VGA Port - No, DVI Port - No, HDMI Port - 1, DisplayPort (DP) - No, IDE Port - No, SATA Port - 6 x SATA, BIOS Type - 256 Mbit flash, BIOS Model - AMI UEFI BIOS, BIOS Version - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, FireWire - No, CrossFire Support - Yes, Sli Support - No, RaidSupport - 0,1,5,10, Thunderbolt - 2 x Thunderbolt, TPM Port - Yes, COM Port - No, RGB Support - Yes, RGB Sync - RGB FUSION 2.0, RGB Connector - 2 x RGB LED strip headers, Form Factor - ATX, Supported Operating System - Windows 10, Special Features - Intel H470 AORUS Motherboard with Direct 11+1 Phases Digital VRM Design, Comprehensive Thermal Solution with Enlarged Surface Heatsink, Dual Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards, Intel WiFi 6 802.11ax, Intel 2.5GbE LAN, USB 3.2 Gen2 Type-C ,RGB FUSION 2.0,Supports 10th Gen Intel Core Series Processors,Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs,Direct 11+1 Phases Digital VRM Solution,Advanced Thermal Design with Enlarged Surface Heatsink,Smart Fan 5 Features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP,Intel Optane Memory Ready,Onboard Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna Blazing Fast Intel 2.5GbE LAN with cFosSpeed,Intel USB 3.2 Gen 2 Type-C Support,ALC1220-VB Enhance 114dB(Rear) / 110dB(Front) SNR in Microphone with WIMA Audio Capacitors,RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips,Pre-installed IO Shield for Easy and Quick Installation,Q-Flash Plus Update BIOS without Installing the CPU Memory and Graphics Card, Others - 1 x water cooling CPU fan header, 3 x system fan headers, 2 x addressable LED strip headers, 1 x Q-Flash Plus button, 6 x SATA 6Gb/s connectors, 2 x M.2 Socket 3 connectors, 1 x front panel header, 1 x front panel audio header,, Warranty - 3 Year, Country of Origin - Taiwan, Made in/ Assemble - China
