Technical Specification | ||
BIOS Type | 1 x 128 Mbit flash | |
BIOS Model | AMI UEFI BIOS | |
BIOS Version | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
RGB Support | Yes | |
RGB Connector | 1 x RGB LED strip header | |
General | ||

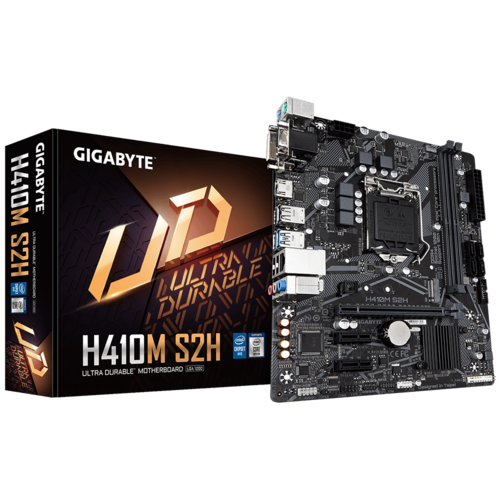

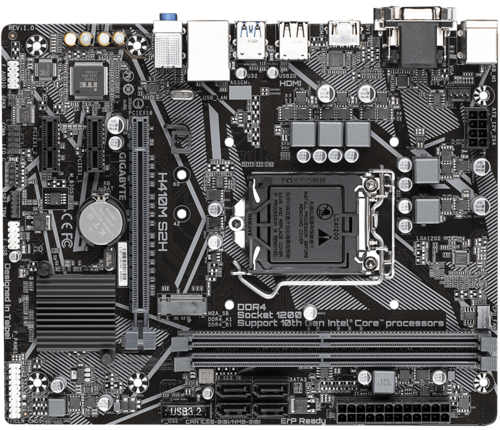

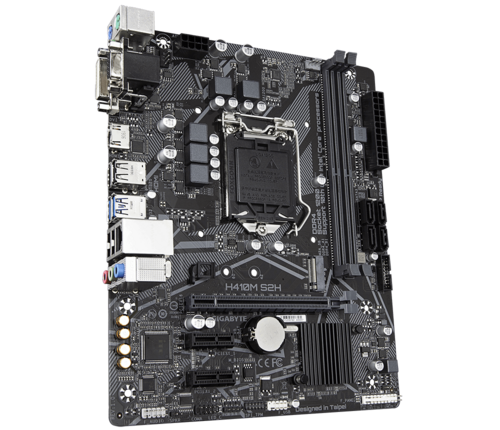

Model | Gigabyte H410M S2H | |
Chipset | Intel H410 Express | |
Form Factor | Micro ATX | |
Memory Specifications | ||
Type | DDR4 | |
MHz | Intel Core i9/i7 (2933/2666/2400/2133MHz), Intel Core i5/i3/Pentium/Celeron (2666/2400/2133MHz) | |
Channel | Dual | |
Slot | 2 | |
Max | 64GB | |
Optane Memory Support | No | |
Graphics Specifications | ||
Graphics | Integrated Graphics | |
Multi-GPU Support | No | |
PCI Express Slot | 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slot | |
CrossFire Support | No | |
Sli Support | No | |
Warranty Information | ||
Manufacturing Warranty | 03 Years | |
Compatibility | ||
Sockets Supported | LGA1200 | |
Supported CPU | Intel Core i9/ i7/ i5/ i3/ Pentium/ Celeron Processors | |
Generation | 10th | |
Supported Operating System | Windows 10 | |
Storage | ||
Storage Interface | 6.0Gb/s | |
M.2/SSD Expansion Slot | 1 | |
SATA Port | 4 x SATA | |
Raid Support | No | |
Network & Connectivity | ||
LAN Chipset | Realtek GbE LAN | |
LAN Speed (Mbps) | 100/1000 Mbps | |

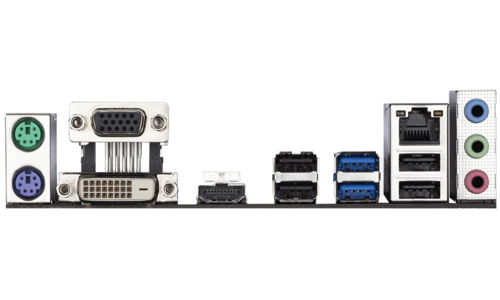

Ports | ||
USB Port | 4 x USB 3.2 Gen 1, 6 x USB 2.0 | |
VGA Port | 1 | |
DVI Port | 1 | |
HDMI Port | 1 | |
Audio & Video | ||
Audio Chipset | Realtek ALC887 | |
Audio Channel | 2/4/5.1/7.1 |
Exclusive Realtek 8118 Gaming LAN
High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
Program On Top Gets Highest Priority
Real-Time Network Monitoring
NVMe PCIe Gen3 x2 2280 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
High Definition Digital Outputs
Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
Fan / Water Pump Connectors
Internal Temperature Sensors
Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.
Temperature Sensors
Hybrid Fan Headers
■ 4 Temperature Sensors
■ 2 Fan Pin Headers
■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Intuitive UI for Fan Control
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
Intelligent Fan Control Design
Brand - Gigabyte, Model - Gigabyte H410M S2H, CPU Sockets - LGA1200, Chipset - Intel H410 Express, Supported CPU - Intel Core i9/ i7/ i5/ i3/ Pentium/ Celeron Processors, Generation - 10th, Memory Type - DDR4, Memory MHz - Intel Core i9/i7 (2933/2666/2400/2133MHz), Intel Core i5/i3/Pentium/Celeron (2666/2400/2133MHz), Memory Channel - Dual Channel, Memory Slot - 2, Memory Max. - 64GB, Optane Memory Support - No, Graphic - Integrated Graphics, Multi-GPU Support - No, PCI Express Slot - 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slot, Storage Interface - 6Gb/s, M.2 Slot - 1 x M.2 Socket 3 (M key, type 2242/2260/2280 SATA and PCIe x2 SSD support), LAN Chipset - Realtek GbE LAN, LAN Speed (Mbps) - 100/1000 Mbps, Audio Chipset - Realtek ALC887, Audio Channel - 2/4/5.1/7.1-channel, Wi-Fi - No, Bluetooth - No, USB Port - 4 x USB 3.2 Gen 1, 6 x USB 2.0, VGA Port - 1, DVI Port - 1, HDMI Port - 1, DisplayPort (DP) - No, IDE Port - No, SATA Port - 4 x SATA, BIOS Type - 1 x 128 Mbit flash, BIOS Model - AMI UEFI BIOS, BIOS Version - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, FireWire - No, CrossFire Support - No, Sli Support - No, RaidSupport - No, Thunderbolt - No, TPM Port - Yes, COM Port - No, RGB Support - Yes, RGB Connector - 1 x RGB LED strip header, Form Factor - Micro ATX, Supported Operating System - Windows 10, Special Features - Supports 10th Gen Intel Core Processors, Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs, 8-Channel HD Audio with High Quality Audio Capacitors, Ultra-Fast M.2 with PCIe Gen3 X2 & SATA Interface, HDMI /DVI-D/D-Sub Ports for Multiple Display, Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP, GIGABYTE APP Center, Simple and Easy Use, Anti-Sulfur Resistors Design, Others - 1 x CPU fan header, 1 x system fan header, 1 x speaker header, 1 x Trusted Platform Module header, 1 x serial port header, 1 x Clear CMOS jumper, 3 x audio jacks, Warranty - 3 Year, Country of Origin - Taiwan, Made in/ Assemble - China
