General | ||

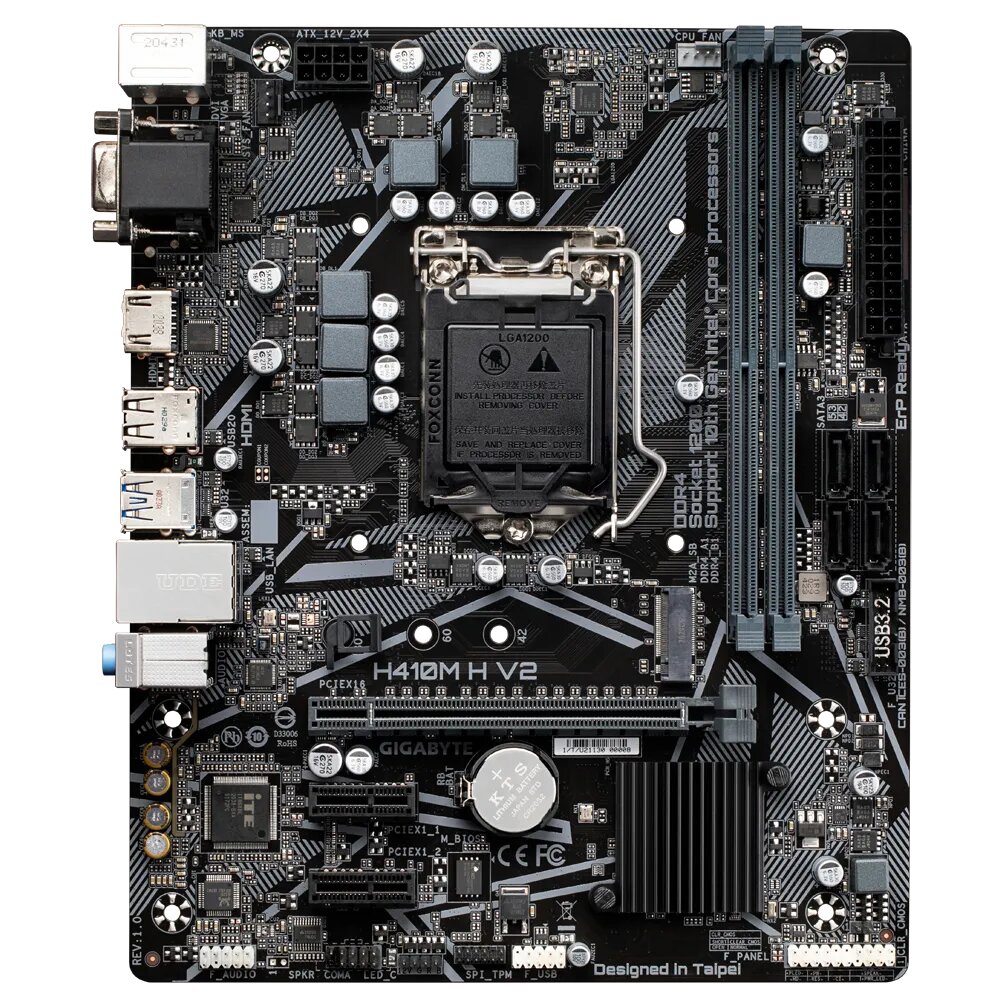

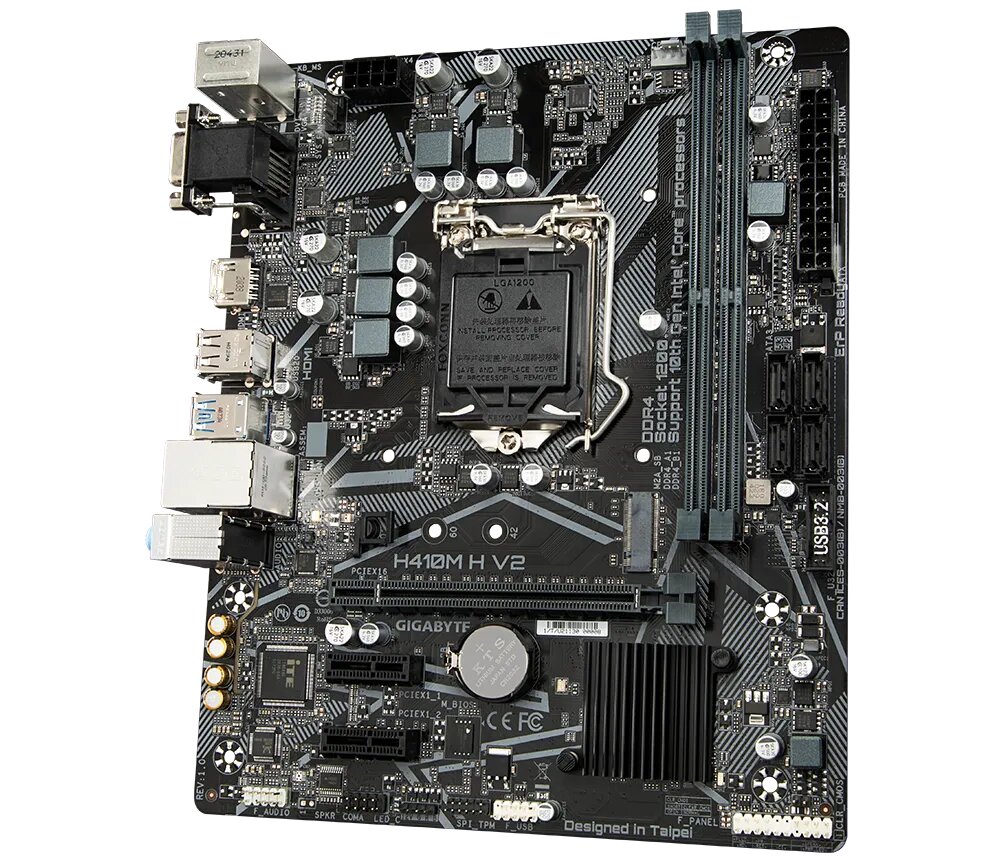

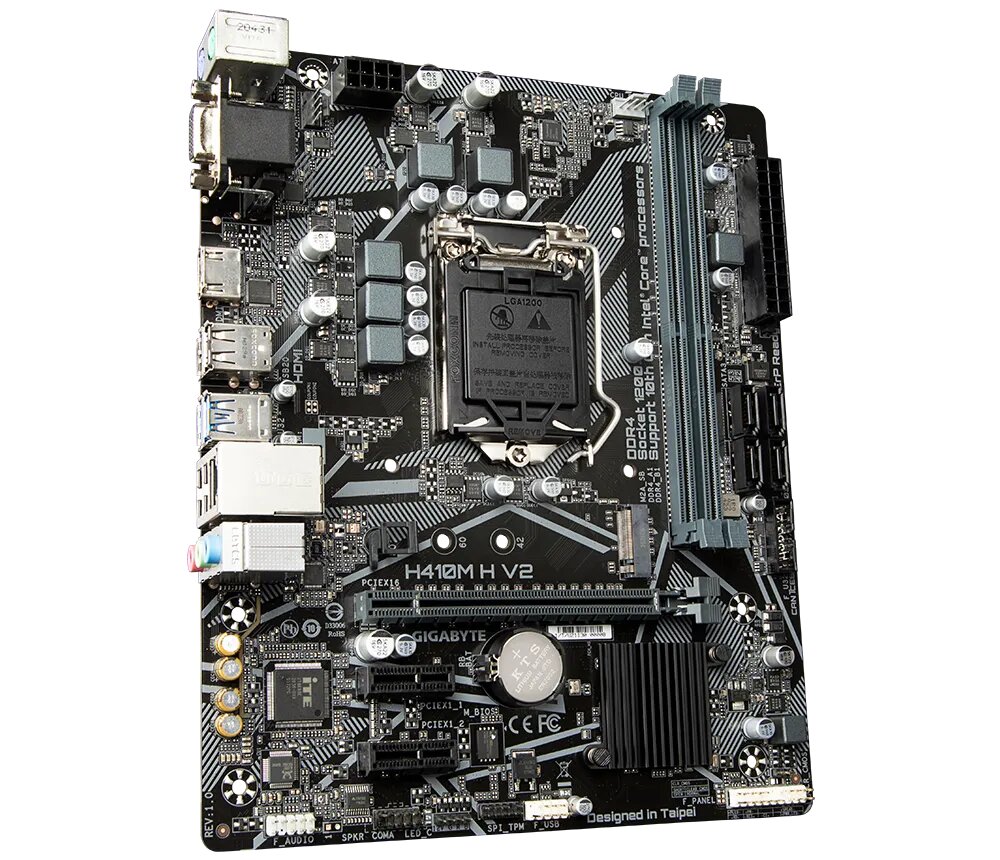

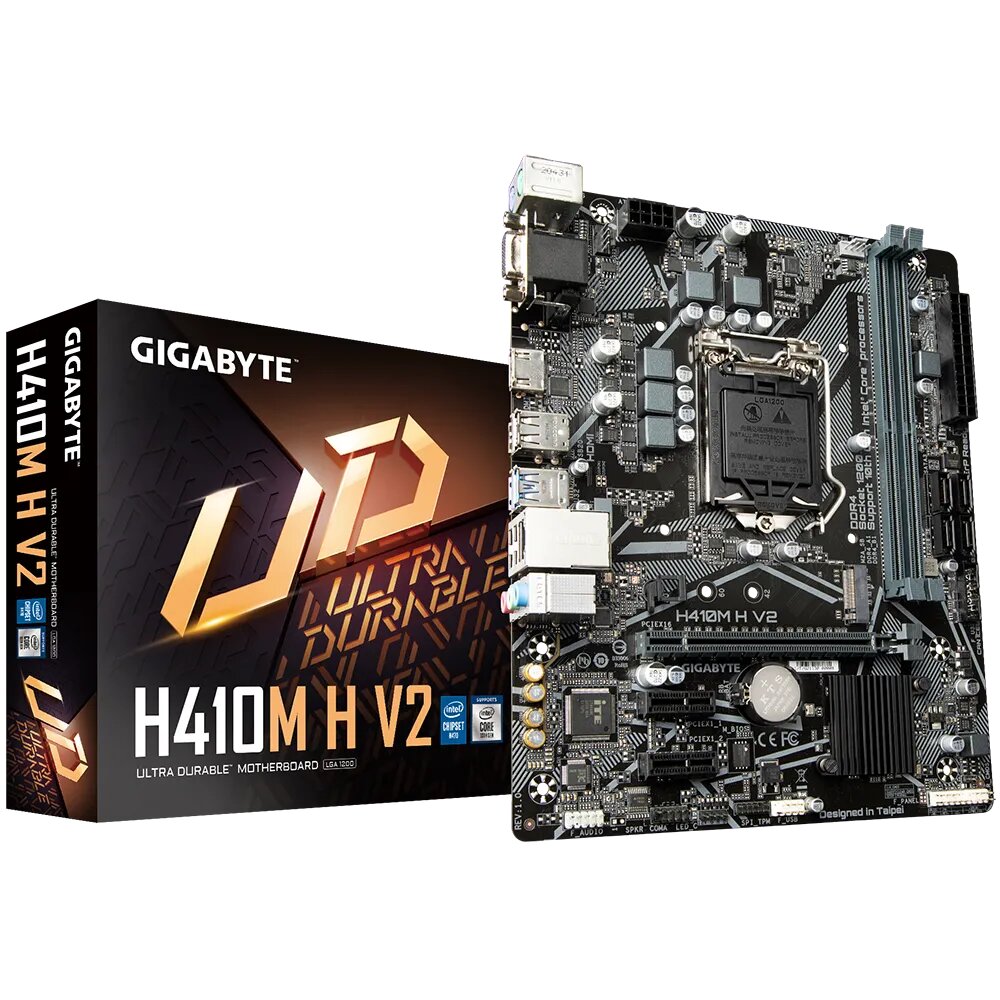

Model | Gigabyte H410M H V2 | |
Chipset | Intel H470 Express | |
Form Factor | Micro ATX | |
Additional Info | ||
BIOS Type | 1 x 256 Mbit flash | |
BIOS Model | AMI UEFI BIOS | |
BIOS Version | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
TPM Port | Yes | |
RGB Support | Yes | |
RGB Connector | 1 x RGB LED strip header | |
Memory Specifications | ||
Memory Type | DDR4 | |
Memory MHz | 2933/ 2666/ 2400/ 2133 MHz | |
Memory Channel | Dual | |
Memory Slot | 2 | |
Memory Max | 64GB | |
Optane Memory Support | Yes | |
Graphics Specifications | ||
Graphics | Intel HD Graphics | |
PCI Express Slot | 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots | |
Warranty Information | ||
Manufacturing Warranty | 3 Year's (Official) | |
Compatibility | ||
Sockets Supported | LGA1200 | |
Supported CPU | Intel Core i9, i7, i5, i3, Pentium, Celeron processors | |
Generation | 10th | |
Supported Operating System | Windows 10 | |
Storage | ||
Storage Interface | 6.0Gb/s | |
M.2/SSD Expansion Slot | 1 | |
SATA Port | 4 | |
Raid Support | 0, 1, 5, 10 | |
Network & Connectivity | ||
LAN Chipset | Intel GbE LAN | |
LAN Speed (Mbps) | 10/100/1000 Mbit | |

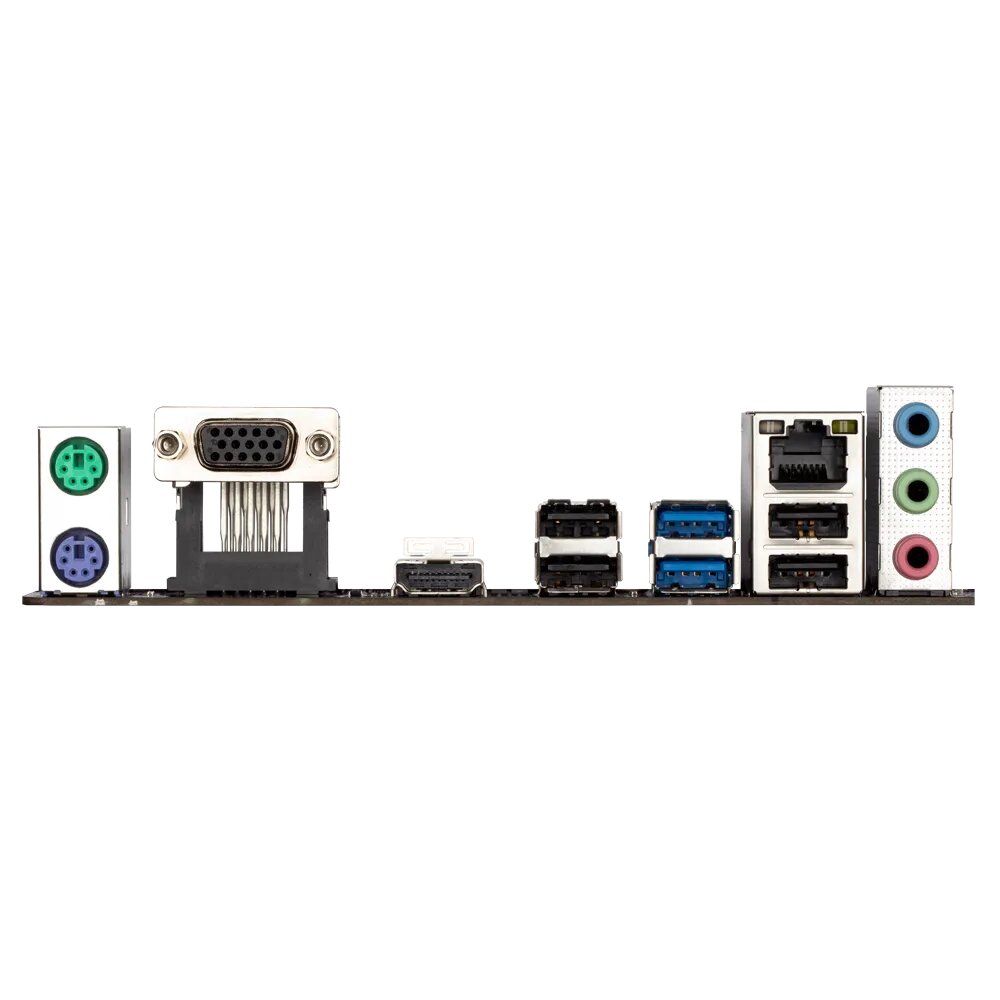

Ports | ||
USB Port | 6 x USB 3.2 Gen 1, 10 x USB 2.0 | |
VGA Port | 1 | |
HDMI Port | 1 | |
Audio & Video | ||
Audio Chipset. | Realtek Audio CODEC | |
Audio Channel | 2/4/5.1/7.1 |
Brand - Gigabyte, Model - Gigabyte H410M H V2, Chipset Brand - Intel, Chipset - Intel H470 Express, CPU Sockets - LGA1200, Supported CPU - Intel Core i9, i7, i5, i3, Pentium, Celeron processors, Generation - 10th Gen, Memory Type - DDR4, Memory MHz - 2933/ 2666/ 2400/ 2133 MHz, Memory Channel - Dual, Memory Slot - 2, Memory Max. - 64GB, Optane Memory Support - Yes, Graphics - Intel HD Graphics, PCI Express Slot - 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots, Storage Interface - 6Gb/s, M.2 Slot - 1 x M.2, type 2242/2260/2280 SATA and PCIe x4/x2 SSD, LAN Chipset - Intel GbE LAN, LAN Speed (Mbps) - 10/100/1000 Mbit, Audio Chipset - Realtek Audio CODEC, Audio Channel - 2/4/5.1/7.1-channel, USB Port - 6 x USB 3.2 Gen 1, 10 x USB 2.0, VGA Port - 1, HDMI Port - 1, SATA Port - 4, BIOS Type - 1 x 256 Mbit flash, BIOS Model - AMI UEFI BIOS, BIOS Version - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, RaidSupport - 0, 1, 5, 10, TPM Port - Yes, RGB Support - Yes, RGB Connector - 1 x RGB LED strip header, Form Factor - Micro ATX, Supported Operating System - Windows 10, Special Features - Intel H470 Ultra Durable Motherboard with Intel GbE LAN, Anti-Sulfur Resistor, Smart Fan 5, Supports 10th Gen Intel Core Processors, Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs, 8-Channel HD Audio with High Quality Audio Capacitors, NVMe PCIe Gen3 x4 2280 M.2 Connector, Intel GbE LAN with cFosSpeed Internet Accelerator Software, Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP, GIGABYTE APP Center, Simple and Easy Use, Anti-Sulfur Resistors Design, Others - HDMI version: 1.4 and HDCP version: 2.3, 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x system fan header, 1 x front panel header, 1 x front panel audio header, 1 x serial port header, 1 x Clear CMOS jumper, 1 x RJ-45 port, 3 x audio jacks, Warranty - 3 Year
