Physical Specification | ||
LAN Chipset | Realtek GbE LAN | |
LAN Speed (Mbps) | 10/100/1000Mbps | |
USB Port | 2 x USB3.0, 6 x USB2.0 | |
VGA Port | 1 | |
Audio Chipset. | Realtek ALC887 | |
Audio Channel | 2/4/5.1/7.1 | |
Technical Specification | ||
Sockets Supported | LGA1150 | |
Supported CPU | 4th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron Processors | |
Supported Operating System | Windows 7 / 8 / 8.1 / 10 | |
Storage Interface | 6Gb/s, 3Gb/s | |
SATA Port | 2 x SATA3, 2 x SATA2 | |
General | ||

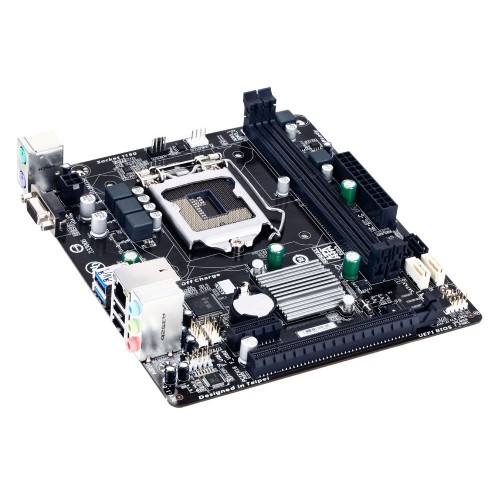

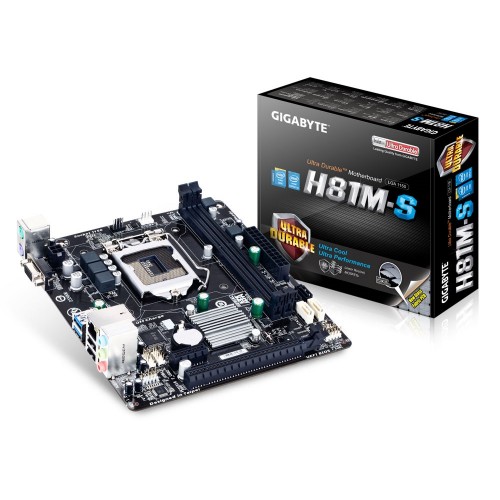

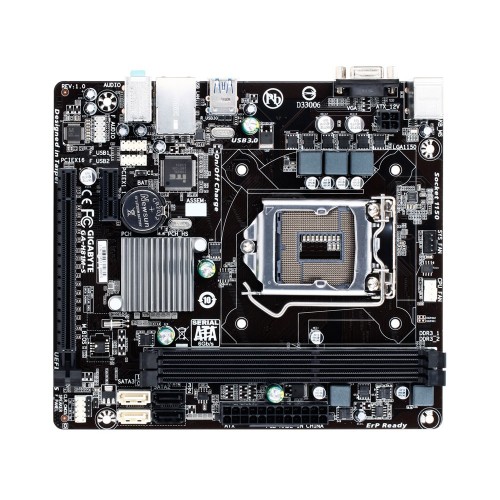

Model | Gigabyte GA H81M-S | |
Chipset | Intel H81 Express | |
Form Factor | Micro ATX | |
Additional Info | ||
BIOS Type | 1 x 32 Mbit flash | |
BIOS Model | AMI EFI BIOS | |
BIOS Version | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Memory Specifications | ||
Memory Type | DDR3 | |
Memory MHz | 1600/1333MHz | |
Memory Channel | Dual | |
Memory Slot | 2 | |
Memory Max. | 16GB | |
Optane Memory Support | No | |
Graphics Specifications | ||
Graphics | Integrated Graphics | |
PCI Express Slot | 1 x PCI Express x16 slot, running at x16, 1 x PCI Express x1 slot | |
Warranty Information | ||
Manufacturing Warranty | 03 Years |

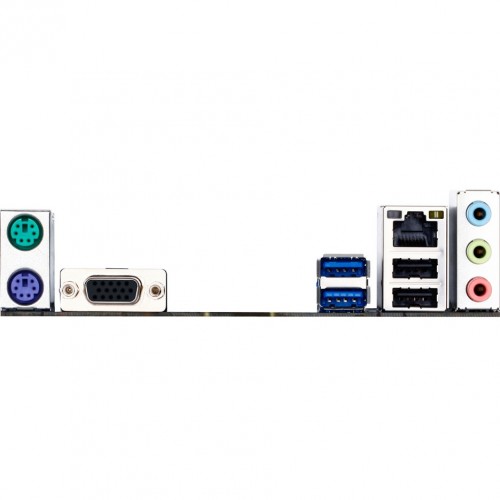

Model - Gigabyte GA H81M-S, CPU Sockets - LGA1150, Chipset - Intel H81 Express, Supported CPU - 4th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron Processors, Memory Type - DDR3, Memory MHz - 1600/1333MHz, Memory Channel - Dual Channel, Memory Slot - 2, Memory Max. - 16GB, Optane Memory Support - No, Graphic - Integrated Graphics, PCI Express Slot - 1 x PCI Express x16 slot, running at x16, 1 x PCI Express x1 slot, Storage Interface - 6Gb/s, 3Gb/s, LAN Chipset - Realtek GbE LAN, LAN Speed (Mbps) - 10/100/1000Mbps, Audio Chipset - Realtek ALC887, Audio Channel - 2/4/5.1/7.1-channel, USB Port - 2 x USB3.0, 6 x USB2.0, VGA Port - 1, SATA Port - 2 x SATA3, 2 x SATA2, BIOS Type - 1 x 32 Mbit flash, BIOS Model - AMI EFI BIOS, BIOS Version - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, Supported Operating System - Windows 7 / 8 / 8.1 / 10, Form Factor - Micro ATX, Warranty - 3 years, Special Features - GIGABYTE Ultra Durable Technology, GIGABYTE UEFI BIOS, GIGABYTE On/Off Charge for USB devices, LAN with high ESD Protection, D-SUB port on rear panel, Solid capacitors for CPU VRM design, Humidity Protection, Power Failure Protection, Electrostatic Protection, Others - 1 x CPU fan header, 1 x system fan header, 1 x front panel header, 1 x front panel audio header, 1 x speaker header, 1 x chassis intrusion header, 1 x Clear CMOS jumper, 3 x audio jacks (Line In, Line Out, Mic In), Country of Origin - Taiwan, Made in/ Assemble - China
