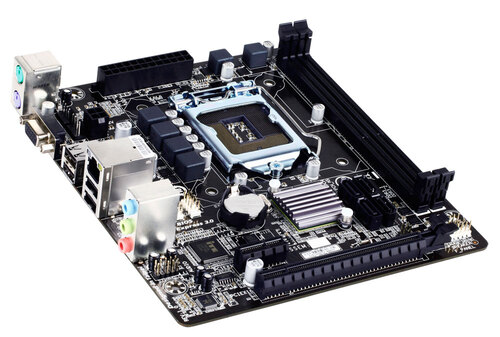

Gigabyte GA-H61M-S Ultra durable Intel chipset 2nd/3rd gen ddr3 motherboard lga-1155
Price : TK.7500
Brand : GIGABYTE
Model : Gigabyte GA-H61M-S
Product Code : TLB-123
Status :
- In stock
Payment:
Share:
Related Products
Biostar H310MHP DDR4 Motherboard
TK.6900
Specificaions :
| Technical Specification | ||
| Expansion Slots | 1 x PCI Express x16 slot, running at x16, 1 x PCI Express x1 slot | |
| Basic Information | ||
| Supported CPU | Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package | |
| Chipset | Intel H61 Express Chipset | |
| BIOS | 1 x 32 Mbit flash Use of licensed AMI EFI BIOS PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a | |
| Form Factor | Micro ATX Form Factor; 19.0cm x 17.0cm | |
| Physical Description | ||
| HDMI | No | |
| USB (s) | 4 x USB 2.0/1.1 headers | |
| LAN Port (s) | 1 x RJ-45 port | |
| Supported Storage | 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices | |
| Audio | 3 x audio jacks (Line In, Line Out, Mic In) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x speaker header 1 x chassis intrusion he | |
| D-Sub (s) | 1 x D-Sub port | |
| Memory Specifications | ||
| Type | Dual channel memory architecture | |
| Slots | 2 x 1.5V DDR3 DIMM sockets | |
| Supported Memory | Support for DDR3 1333/1066/800 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules | |
| Maximum Mamory | 16 GB | |
| Graphics Specifications | ||
| Max Shared Memory | 1 GB | |
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |
Gigabyte GA-H61M-S DDR3 Micro ATX Motherboard has the compatibility with
Supports 3rd Gen Intel 22nm CPUs and 2nd Gen, Intel Core CPUs (LGA1155
socket). This board also Humidity Protection PCB design. Electrostatic
Protection and Power Failure Protection design. Unique On/Off Charge
delivers the best recharging capability to iPad, iPhone and iPod
Touch.Supports 3rd generation PCI-Express interface. Enhanced Intel HD
Graphics 2000/3000 integrated with the processor.
