Physical Specification | ||
LAN Chipset | Realtek GbE | |
VGA Port | 1 | |
Audio Chipset. | Realtek ALC887 audio | |
Audio Channel | 2/4/5.1/7.1 | |
Technical Specification | ||
Sockets Supported | LGA1155 | |
Supported CPU | Intel Core i7 / i5/ i3/ Pentium/ Celeron processors | |
Generation | 3rd | |
Supported Operating System | Windows 8 / 7 / Vista / XP | |
Storage Interface | 3Gb/s | |
SATA Port | 4 x SATA | |
BIOS Type | 2 x 32 Mbit | |
BIOS Model | AMI EFI BIOS | |
BIOS Version | PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a | |
WiFi | No | |
Bluetooth | No | |
General | ||

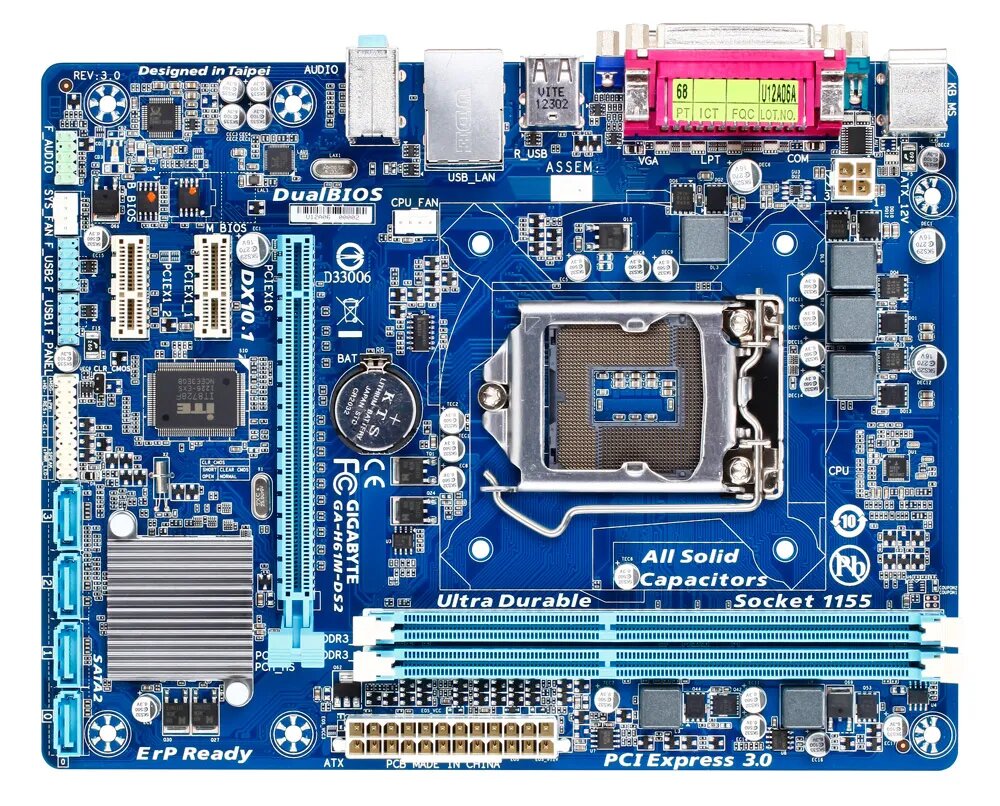

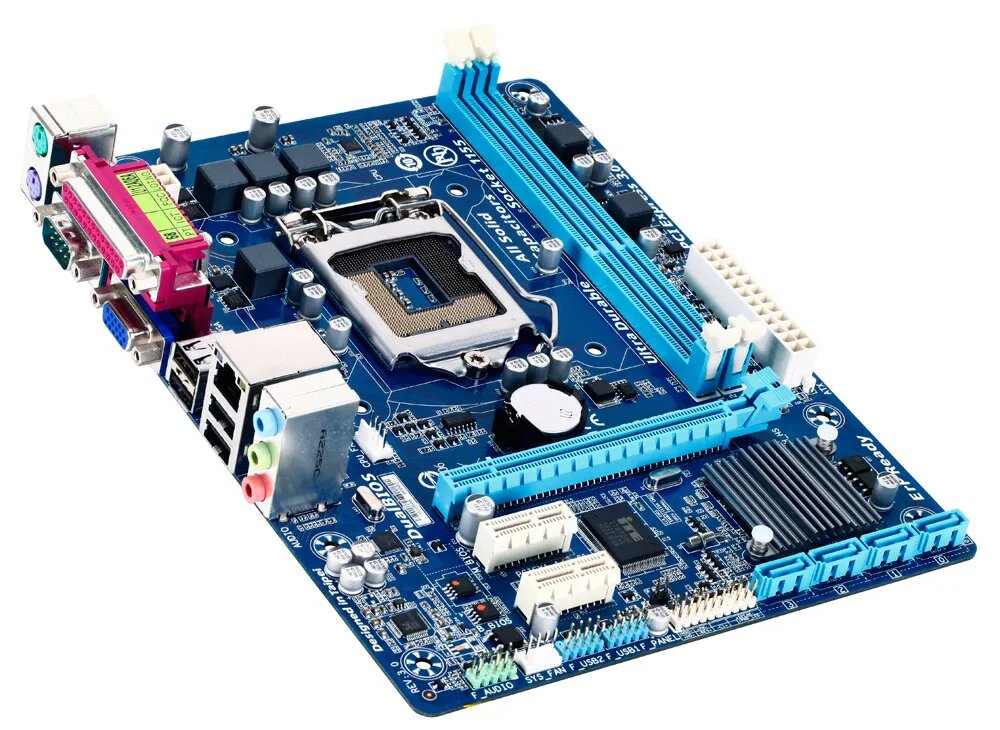

Model | Gigabyte GA-H61M-DS2 | |
Chipset | Intel H61 Express | |
Form Factor | Micro ATX | |
Memory Specifications | ||
Memory Type | DDR3 | |
Memory MHz | 1333/1066/800 MHz | |
Memory Channel | Dual | |
Memory Slot | 2 | |
Memory Max. | 16GB | |
Optane Memory Support | No | |
Graphics Specifications | ||
Graphics | Integrated Graphics | |
Multi-GPU Support | No | |
PCI Express Slot | 1 x PCI Express x 16 | |
Warranty Information | ||
Manufacturing Warranty | 03 Years |
GIGABYTE Ultra Durable™ 4 Classic
Humidity Protection Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments. |
|
Electrostatic Protection GIGABYTE Ultra Durable 4 Classic motherboards feature High ESD Resistance ICs which help protect the motherboard against electrostatic discharge. |
|
Power Failure Protection Permanent damage from power surge or failure during BIOS update, can be avoided with GIGABYTE DualBIOS, which automatically enables a secondary, back up BIOS. GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges. |
|
High Temperature Protection GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures, providing up to 50,000* hour component lifespan. |
Support Intel 22nm processors
GIGABYTE motherboards support Intel 22nm processors.
Designed for PCI Express Gen.3 Support
The GIGABYTE motherboard is fully configured to provide gamers with the
latest Gen.3 PCI Express technology, delivering maximum data bandwidth
for forthcoming discrete graphics cards.
* PCIe Gen. 3 is dependent on CPU and expansion card compatibility.
GIGABYTE Touch BIOS™ (Patent Pending)
An Innovative New Way to Modify BIOS Settings
Navigating
through the BIOS to change system settings can be a daunting task for
users not familiar with control “F”functions and mouse-less navigation.
While some EFI BIOS try to address this with a mouse friendly
environment, many implementations still lack a certain ease-of-use
necessary for most people. With GIGABYTE Touch BIOS™, GIGABYTE engineers
have completely re-imagined how users can interact with their BIOS,
allowing for a more intuitive user experience. In fact, with a touch
screen monitor, GIGABYTE Touch BIOS™ is as easy to use as most apps on
your iPhone.
New 100% Hardware VRD 12 Compliant CPU Power Design
GIGABYTE 6 series motherboards incorporate an Intel® approved Intersil
PWM controller that is VRD 12 (Voltage Regulator Down) compliant. This
means that it offers new features that include SerialVID (SVID) which
transfers power management information between the processor and voltage
regulator controller, allowing more robust and efficient signaling
control between the CPU and PWM controller – hence, delivering a more
energy efficient platform.
Intel® HD Graphics Core 2000/3000 Enhanced Visual Features
Intel® Quick Sync Video
Intel® Quick Sync Video provides breakthrough media processing for incredibly fast editing and sharing.
Intel® InTru™ 3D
2nd Generation Intel® Core™ Processors offer an outstanding Blu-Ray
Stereo 3D experience in full high definition resolution (1080p) with
HDMI 1.4.
Intel® Advanced Vector Extensions (AVX)
Increases the performance of Accelerated Floating Point and Vector Computing Intensive Applications with minimal power gains.
On/Off Charge Technology
GIGABYTE On/Off Charge technology allows you to charge your iPhone,
iPad and iPod Touch regardless of whether your PC is on, in standby mode
or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power
feature, On/Off Charge enables devices to draw more current from
GIGABYTE motherboard USB ports than standard USB ports allow, so that
charging from your PC can be as fast as with a charger..
DualBIOS™ 3TB+ HDD Support (Hybrid EFI Technology)
Hybrid EFI Technology combines the benefits of GIGABYTE's mature
BIOS platform including stability and compatibility with 3rd party
products with 3TB+ HDD support from EFI technology, allowing GIGABYTE to
offer the best of both worlds through a quick and easy BIOS update
using GIGABYTE's @BIOS utility that is freely available from the
GIGABYTE website.
GIGABYTE DualBIOS™ is a patented technology that automatically recovers
BIOS data when the main BIOS has crashed or failed. Featuring 2
physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick
and seamless recovery from BIOS damage or failure due to viruses or
improper BIOS updating. In addition, GIGABYTE DualBIOS™ now supports
3TB+ (terabyte) hard drive booting without the need for partitioning,
and enables more data storage on a single hard drive.
Smart 6 – Smarter PC system Management
Smart QuickBoot |
Smart DualBIOS Smart personal reminder of PC passwords. |
||
Smart QuickBoost* One-click Overclocking |
Smart Recorder Your PC's Watch Dog |
||
Smart Recovery 2 Allows you to go back in time on your PC and retrieve lost files |
Smart TimeLock Time Controller for your PC. |
AutoGreen- Greening your PC via Bluetooth cellphone
AutoGreen technology can automatically save power by simply putting
your PC in a state of sleep when your Bluetooth® cell phone is out of
range of your computer.
Note: GIGABYTE motherboards do not include a Bluetooth® receiver; the addition of a 3rd party Bluetooth receiver is required.
ErP Lot 6 support
The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.
Model - Gigabyte GA-H61M-DS2, CPU Sockets - LGA1155, Chipset - Intel H61 Express, Supported CPU - Intel Core i7 / i5/ i3/ Pentium/ Celeron processors, Generation - 3rd Gen, Memory Type - DDR3, Memory MHz - 1333/1066/800 MHz, Memory Channel - Dual Channel, Memory Slot - 2, Memory Max. - 16 GB, Optane Memory Support - No, Graphic - Integrated Graphics, Multi-GPU Support - No, PCI Express Slot - 1 x PCI Express x 16, Storage Interface - 3Gb/s, M.2 Slot - No, LAN Chipset - Realtek GbE, LAN Speed (Mbps) - 10/100/1000 Mbit, Audio Chipset - Realtek ALC887 audio, Audio Channel - 2/4/5.1/7.1-channel, WiFi - No, Bluetooth - No, USB Port - 8 x USB 2.0/1.1, VGA Port - 1, DVI Port - No, HDMI Port - No, DisplayPort (DP) - No, IDE Port - No, SATA Port - 4 x SATA, BIOS Type - 2 x 32 Mbit, BIOS Model - AMI EFI BIOS, BIOS Version - PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a, FireWire - No, CrossFire Support - No, Sli Support - No, RaidSupport - No, Thunderbolt - No, TPM Port - No, COM Port - No, Form Factor - Micro ATX, Supported Operating System - Windows 8 / 7 / Vista / XP, Warranty - 3 Year, Country of Origin - Taiwan, Made in/ Assemble - China
