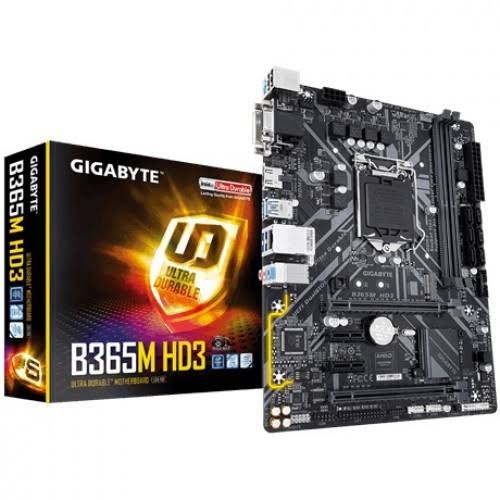

Gigabyte GA B365M HD3 Ultra durable Intel chipset 8th/9th gen ddr4 motherboard lga-1151

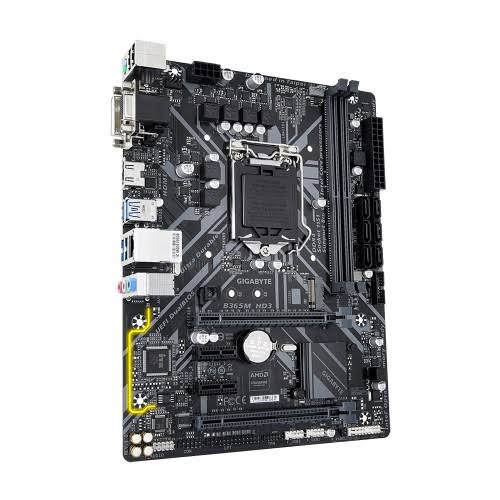

Gigabyte GA-B365M HD3

Intel B365 Ultra Durable motherboard with GIGABYTE 8118 Gaming LAN, PCIe Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 5, DualBIOS, CEC 2019 ready

• Supports 9th and 8th Gen Intel Core Processors
• Dual Channel Non-ECC Unbuffered DDR4
• New Hybrid Digital PWM Design
• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
• Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface
• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
• CEC 2019 Ready, Save the Power as Easy as One Click
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Anti-Sulfur Resistors Design
• Ultra Durable 15KV Surge LAN Protection
• Intel Optane Memory Ready
• GIGABYTE UEFI DualBIOS

Exclusive Realtek 8118 Gaming LAN
High Speed Gigabit LAN with Automatic Bandwidth Allocation

Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

Program On Top Gets Highest Priority

Real-Time Network Monitoring

NVMe PCIe Gen3 x4 2280 M.2 Connector (Up to 32 Gb/s)

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

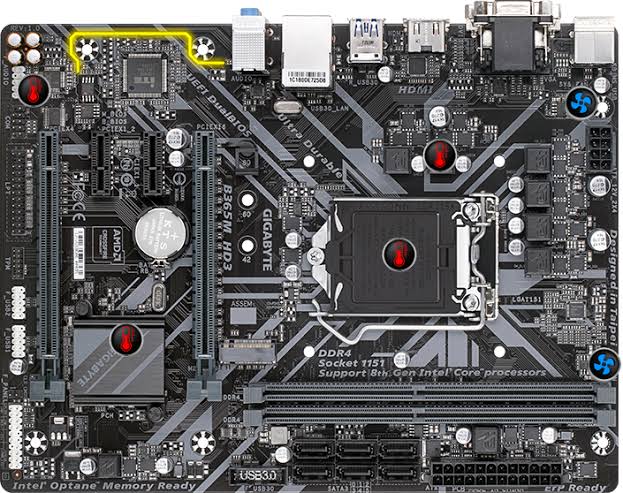

■ 4 Temperature Sensors
■ 2 Fan Pin Headers
■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Intuitive UI for Fan Control
Temperature Sensors
Fan Pin Headers
Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.

Fan Stop

Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
Intelligent Fan Control Design

Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC.
All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

Immersive VR
Gaming Experience

> VR requires more performance than Full HD graphics for a steady 90FPS or greater.
> Only Gaming PCs can provide the best VR experience.

Recommended configuration for VR Gaming PC*

■ Graphics Card: NVIDIA GTX 1060 / AMD RX 480 or greater, Compatible HDMI 1.4 video output.
■ CPU: Intel i5 equivalent or greater
■ Motherboard: GIGABYTE H370 / B365 / B360 / H310 series motherboards
■ Memory: 8GB RAM or greater
■ USB Ports: 3x USB 3.0 ports plus 1x USB 2.0 port or greater
■ OS: Windows 10 64-bit or newer
*Please check VR vendor website for full system requirements.
To create a seamless VR experience GIGABYTE Motherboards offer the best features to make your virtual reality feel like your actual reality. With technologies such as NVMe support via M.2 or U.2 it's obvious that GIGABYTE has the tools you need to start your journey in VR.
Any copyrighted images or trademarks displayed are the property of their respective owners and are shown for reference purposes only. Reference herein does not constitute or imply affiliation or endorsement of Gigabyte products by the respective trademark owners.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

                        =

GIGABYTE Patented Double Locking Bracket

GIGABYTE Patented  DualBIOS Design

GIGABYTE Ultra Durable motherboards feature GIGABYTE DualBIOS, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

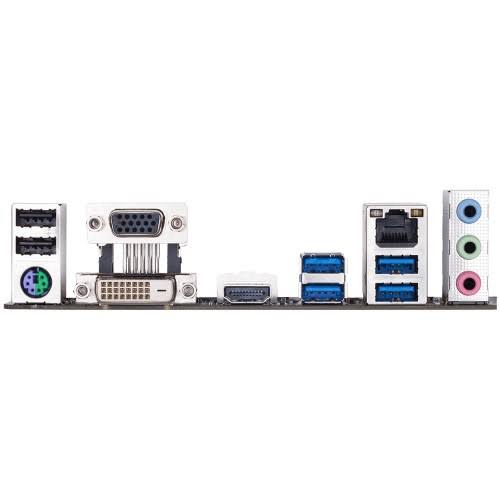

Model - Gigabyte GA-B365M HD3, CPU Sockets - LGA1151, Chipset - Intel B365 Express, Supported CPU - 9th/8th Generation Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron Processors, Generation - 8th/9th, Memory Type - DDR4, Memory MHz - 2666/2400/2133MHz, Memory Channel - Dual Channel, Memory Slot - 2, Memory Max. - 32GB, Optane Memory Support - Yes, Graphic - Onboard Graphics, Multi-GPU Support - AMD Quad-GPU CrossFire and 2-Way AMD CrossFire, PCI Express Slot - 1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 2 x PCI Express x1 slots, Storage Interface - 6Gb/s, M.2 Slot - 1 x M.2 Socket 3 (type 2242/2260/2280 SATA and PCIe x4/x2 SSD support), LAN Chipset - Realtek GbE LAN, LAN Speed (Mbps) - 10/100/1000Mbps, Audio Chipset - Realtek ALC887, Audio Channel - 2/4/5.1/7.1-channel, WiFi - No, Bluetooth - No, USB Port - 6 x USB3.1 Gen 1, 6 x USB2.0, VGA Port - 1, DVI Port - 1, HDMI Port - 1, DisplayPort (DP) - No, IDE Port - No, SATA Port - 6 x SATA, BIOS Type - 2 x 128 Mbit flash, BIOS Model - AMI UEFI BIOS, BIOS Version - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, FireWire - No, CrossFire Support - Yes, Sli Support - No, RaidSupport - 0,1,5,10, Thunderbolt - No, TPM Port - Yes, COM Port - No, Form Factor - Micro ATX, Supported Operating System - Windows 10, Special Features - Ultra Durable motherboard with GIGABYTE 8118 Gaming LAN, PCIe Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 5, DualBIOS, CEC 2019 ready, Dual Channel Non-ECC Unbuffered DDR4, New Hybrid Digital PWM Design, High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting, Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface, GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management, CEC 2019 Ready, Save the Power as Easy as One Click, Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP, Anti-Sulfur Resistors Design, Ultra Durable 15KV Surge LAN Protection, Intel Optane Memory Ready, GIGABYTE UEFI DualBIOS, Others - 1 x M.2 Socket 3, 1 x CPU fan header, 1 x system fan header, 1 x front panel header, 1 x front panel audio header, 1 x Trusted Platform Module (TPM) header, 1 x parallel port header, 1 x serial port header, 1 x Clear CMOS jumper, 3 x audio jacks, Warranty - 3 Year, Country of Origin - Taiwan, Made in/ Assemble - China
