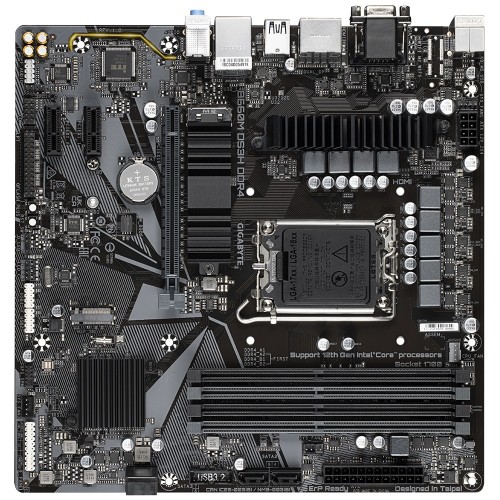

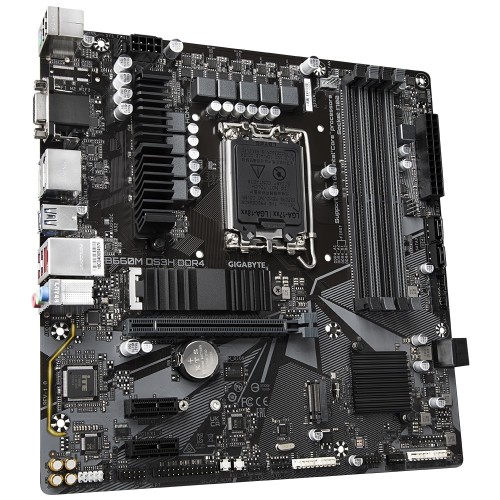

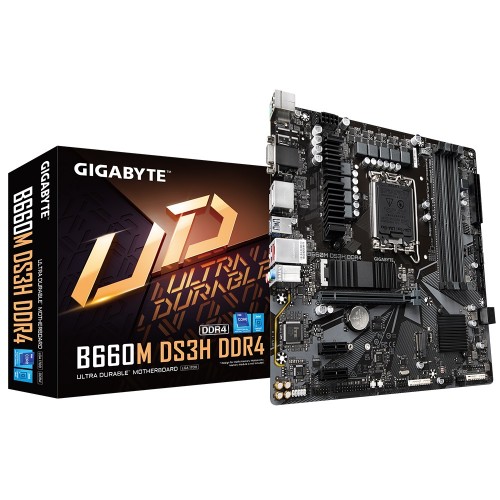

Gigabyte B660M DS3H DDR4 12th Gen Micro ATX Motherboard
Price : TK.15000
Brand : GIGABYTE
Model : Gigabyte B660M DS3H
Warrantty : 3 Year's (Official)
Product Code : TLB-816
Status :
- In stock
Biostar H310MHP DDR4 Motherboard
Specificaions :
| Physical Specification | ||
| Supported CPU | LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU | |
| Chipset | Intel B660 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. | |
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 2 x PCI Express x1 slots | |
| Special Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart B | |
| Memory Specifications | ||
| Type | DDR4 | |
| Slots | 4 x DDR DIMM sockets | |
| Supported Memory | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C. | |
| Maximum Memory | up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Graphics Specifications | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDM | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

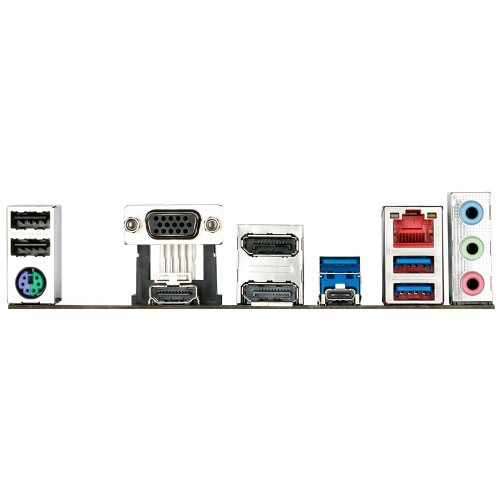

| Ports | ||
| HDMI | 1 x HDMI port | |
| Display Port (s) | 2 x DisplayPort | |
| D-Sub (s) | 1 x D-Sub port | |
| USB (s) | 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports a | |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and | |
| Audio | 3 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
Gigabyte B660M DS3H DDR4 12th Gen Micro ATX Motherboard
The Gigabyte B660M DS3H DDR4 12th Gen Micro ATX Motherboard comes with LGA1700 socket which supports 12th Gen Intel Core Series Processors. It comes with Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. It features 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink. It is a Fully Covered Thermal Design with High Coverage MOSFET Heatsinks. It is equipped with Fast 2.5 GbE LAN with Bandwidth Management and Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard. It offers Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard. It has pre-installed IO Shield for easy and quick installation. It comes with RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card. The Gigabyte B660M DS3H DDR4 comes with 3 years of warranty.
