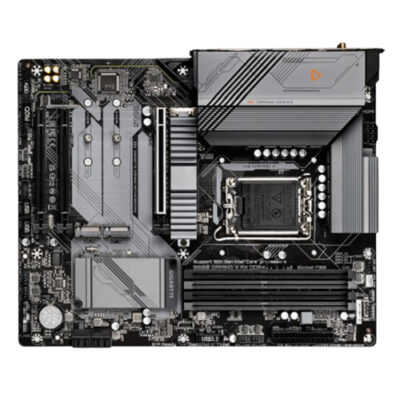

Gigabyte B660 GAMING X AX DDR4 12th Gen Motherboard
Price : TK.19700
Brand : GIGABYTE
Model : Gigabyte B660 GAMING X AX
Warrantty : 3 Year's (Official)
Product Code : TLB-823
Status :
- In stock
Payment:
Share:
Related Products
Biostar H310MHP DDR4 Motherboard
TK.6900
Specificaions :
| Physical Specification | ||
| CHIPSET | Intel® B660 Express Chipset | |
| CPU | LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU * Please refer to "CPU Support List" for more information. | |
| AUDIO | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out | |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| H/W MONITORING | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| UNIQUE FEATURES | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart B | |
| BUNDLED SOFTWARE | Norton® Internet Security (OEM version) LAN bandwidth management software | |
| OPERATING SYSTEM | Support for Windows 11 64-bit Support for Windows 10 64-bit | |
| Memory Specifications | ||
| MEMORY | Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) /3200/3000/2933/2666/2400/2133 MHz memory modules 4 x DDR DIMM | |
| Graphics Specifications | ||
| ONBOARD GRAPHICS | Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
| Storage | ||
| STORAGE INTERFACE | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22 | |
| Network & Connectivity | ||
| USB Chipset: | 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 1 x USB | |
| INTERNAL I/O CONNECTORS | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 So | |

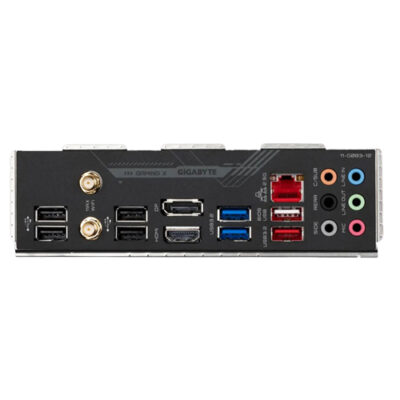

| BACK PANEL CONNECTORS | 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 1 x DisplayPort 1 x HDMI 2.0 port 1 x RJ-45 port 6 x audio jacks | |
| I/O CONTROLLER | iTE® I/O Controller Chip | |
| Ports | ||
| WIRELESS COMMUNICATION MODULE | AMD Wi-Fi 6E RZ608 (MT7921K) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate (Actual data rate may vary depending on environment and equipment.) | |
| EXPANSION SLOTS | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 2 x PCI Express x16 | |
Gigabyte Intel B660 GAMING Motherboard
- Supports 12th Gen Intel Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- 8+1+1 Hybrid Digital VRM Design with DrMOS*
- Fully Covered Thermal Design with High Coverage VRM Heatsinks
- WIFI 6 802.11ax 2T2R & BT5 with AERO Antenna
- Fast 2.5 GbE GAMING LAN with Bandwidth Management
- Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
- SuperSpeed USB 3.2 Gen 2 Type-C delivers up to 10Gb/s transfer speeds
- Pre-installed IO Shield for easy and quick installation
- High Quality Audio Capacitors and Audio Noise Guard
- RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
UNPARALLELED PERFORMANCE
With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIAGBYTE B660 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.
NEXT GENERATION CONNECTIVITY
GIGABYTE B660 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network, storage, and WIFI connectivity.
DEFINITIVE AESTHETICS
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
ULTRA DURABLE
GIGABYTE Ultra Durable™ features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
