General | ||
Model | Gigabyte B560M DS3H | |
Chipset | Intel B560 Express | |
Form Factor | Micro ATX | |
Additional Info | ||
BIOS Type | 1 x 256 Mbit flash | |
BIOS Model | AMI UEFI BIOS | |
BIOS Version | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
RGB Support | Yes | |
RGB Sync | RGB Fusion | |
RGB Connector | 1 x RGB LED strip header | |
Memory Specifications | ||
Type | DDR4 | |
MHz | 11th Gen: 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O | |
Channel | Dual | |
Slot | 4 | |
Max | 128GB | |
Optane Memory Support | Yes | |
Graphics Specifications | ||
Graphics | Intel HD Graphics | |
PCI Express Slot | 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots | |
Warranty Information | ||
Manufacturing Warranty | 03 Years | |
Compatibility | ||
Sockets Supported | LGA1200 | |
Supported CPU | 11th Gen Intel Core i9, i7, i5 processors, 10th Gen: Intel Core i9, i7, i5, i3, Pentium, Celeron processors | |
Generation | 10th/11th | |
Supported Operating System | Windows 10 | |
Storage | ||
Storage Interface | 6.0Gb/s | |
M.2/SSD Expansion Slot | 2 | |
SATA Port | 6 | |
Network & Connectivity | ||
LAN Chipset | Realtek GbE LAN | |
LAN Speed (Mbps) | 100/1000 Mbit | |
Ports | ||
USB Port | 1 x USB 3.2 Gen 1 Type-C, 5 x USB 3.2 Gen 1, 6 x USB 2.0 | |
VGA Port | 1 | |
DVI Port | 1 | |
HDMI Port | 1 | |
Audio & Video | ||
Audio Chipset | Realtek Audio CODEC | |
Audio Channel | 2/4/5.1/7.1 |

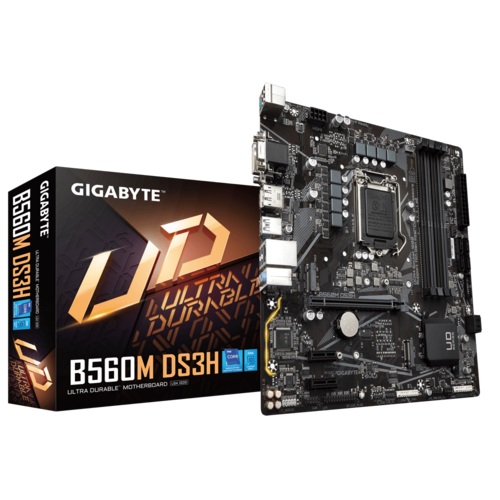

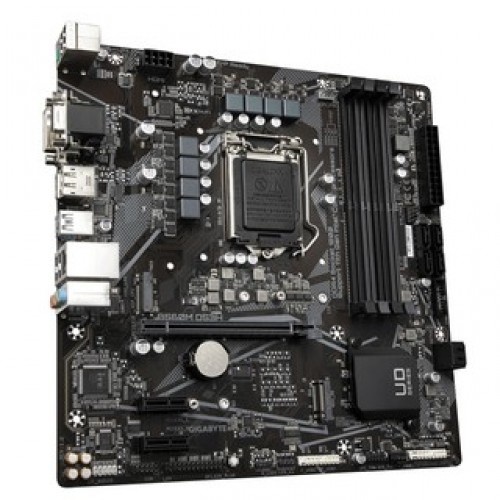

Gigabyte B560M DS3H Micro ATX Motherboard supports 11th and 10th Gen Intel Core Series Processors and Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs with Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs. It features Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 and GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management. It has USB 3.2 Gen1 Type-C for Fast and Versatile Connections and High-Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting. It supports RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips and Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. The Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card. It has 3 years warranty.
