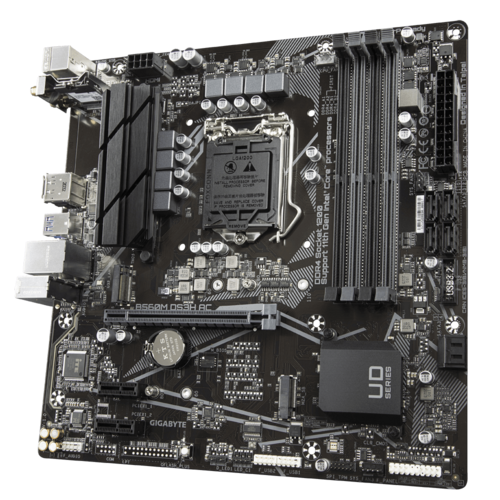

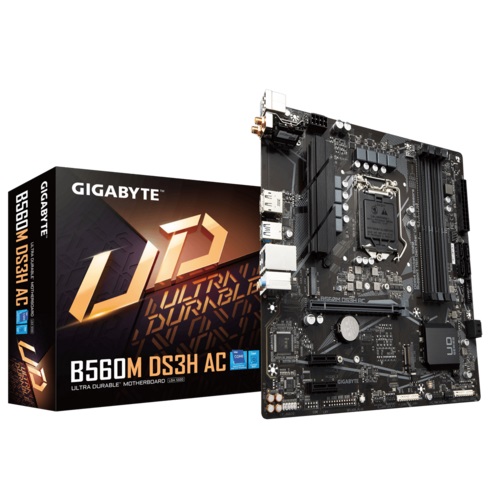

Gigabyte B560 M-DS3H AC (WI-FI) Ultra durable Intel chipset 10th/11th gen ddr4 motherboard lga-1200
Price : TK.13500
Brand : GIGABYTE
Model : B560 M-DS3H AC
Warrantty : 3 Year's (Official)
Product Code : TLB-592
Status :
- In stock
Biostar H310MHP DDR4 Motherboard
Specificaions :
| Main Feature | ||
| Chipset | Intel® B560 Express Chipset | |
| Memory Specifications | ||
| Memory | 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O. | |
| Graphics Specifications | ||
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 * When the D-Sub port and DisplayPort are connected at the same time, images wi | |
| Performance | ||
| CPU | LGA1200 package: 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front | |
| More Information | ||
| Operating System | Support for Windows 10 64-bit | |
| Storage | ||
| Storage Interface | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors * Refer to "1-7 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Network & Connectivity | ||
| Wireless Communication module | AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate * Actual data rate may vary depending on environment and equipment. | |
| Audio & Video | ||
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. | |
GIGABYTE B560 M-DS3H AC (WI-FI) ULTRA DURABLE INTEL CHIPSET 10th/11th gen ddra motherboard lga-1200
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.Digital PWM Controller to deliver appropriate voltage to the CPU.Direct 6+2Phases Low RDS(on) MOSFETs without PWM Doublers, each power phase connects directly to the CPU.All-solid capacitors to improve transient response and minimize oscillation.8-pin Solid Pin CPU Power Connector.
High Current SupportEach fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current ProtectionPrecision ControlUp to 7 temperature/fan speed control points for precise fan curveDual Curve ModeSlope/Stair dual mode for different user scenarioFan StopFan can stop completely below users' specified temperature point
