Main Feature | ||
Chipset | Intel B560 Express Chipset | |
Technical Specification | ||
Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connecto | |
Basic Information | ||
BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Memory Specifications | ||
Memory | Type Dual channel memory architecture Slots 4 x DDR4 DIMM 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O. | |
Graphics Specifications | ||
Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for Displa | |
Warranty Information | ||
Official Warranty | 3 Years | |
Performance | ||
CPU | 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celer | |
Storage | ||
Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)* * Supported by 11th Generation processors only. Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 6 | |
Network & Connectivity | ||

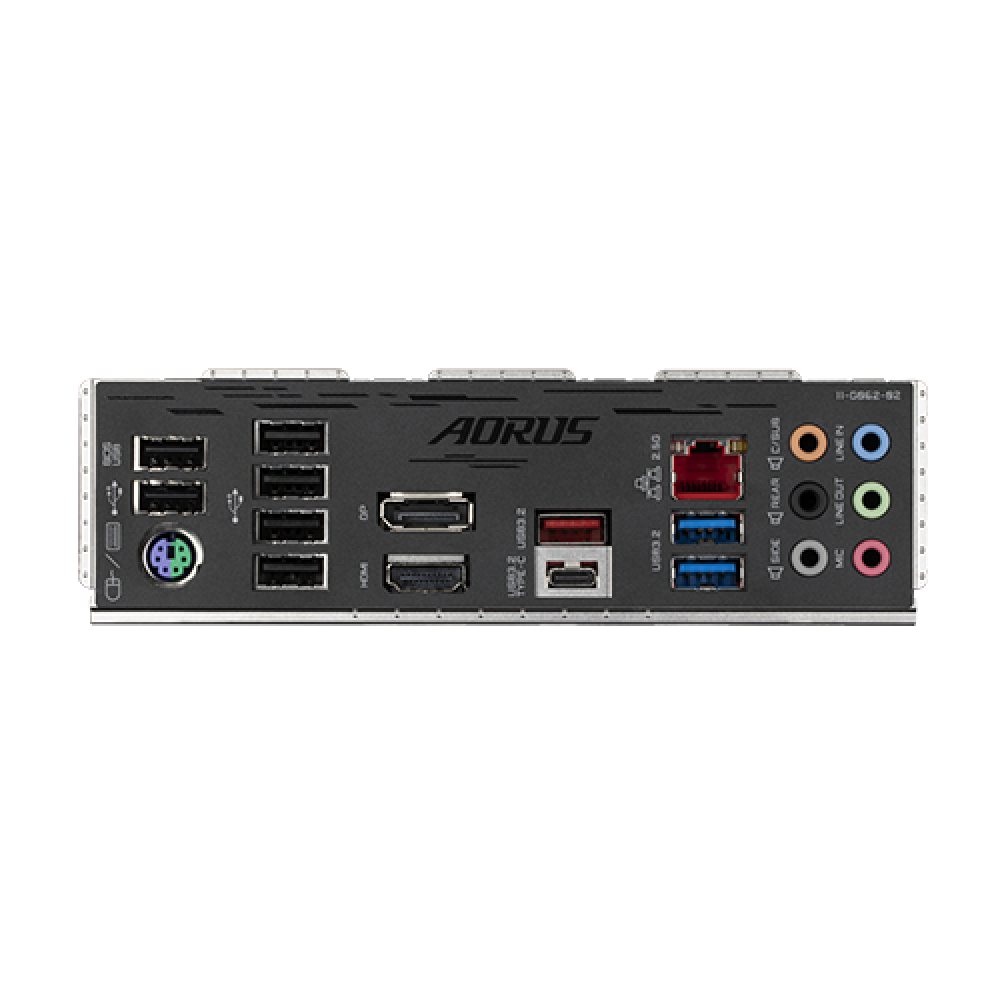

USB Port | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen2 support 1 x USB 3.2 Gen2 Type-A ports (red) on the back panel 3 x USB 3.2 Gen1 ports (2 ports on the back panel, 1 port available through the internal USB header) 2 x USB 2.0/1.1 ports on th | |
Audio & Video | ||
Audio | 6 x audio jacks Realtek Audio codec High Definition Audio 2/4/5.1/7.1-channel |

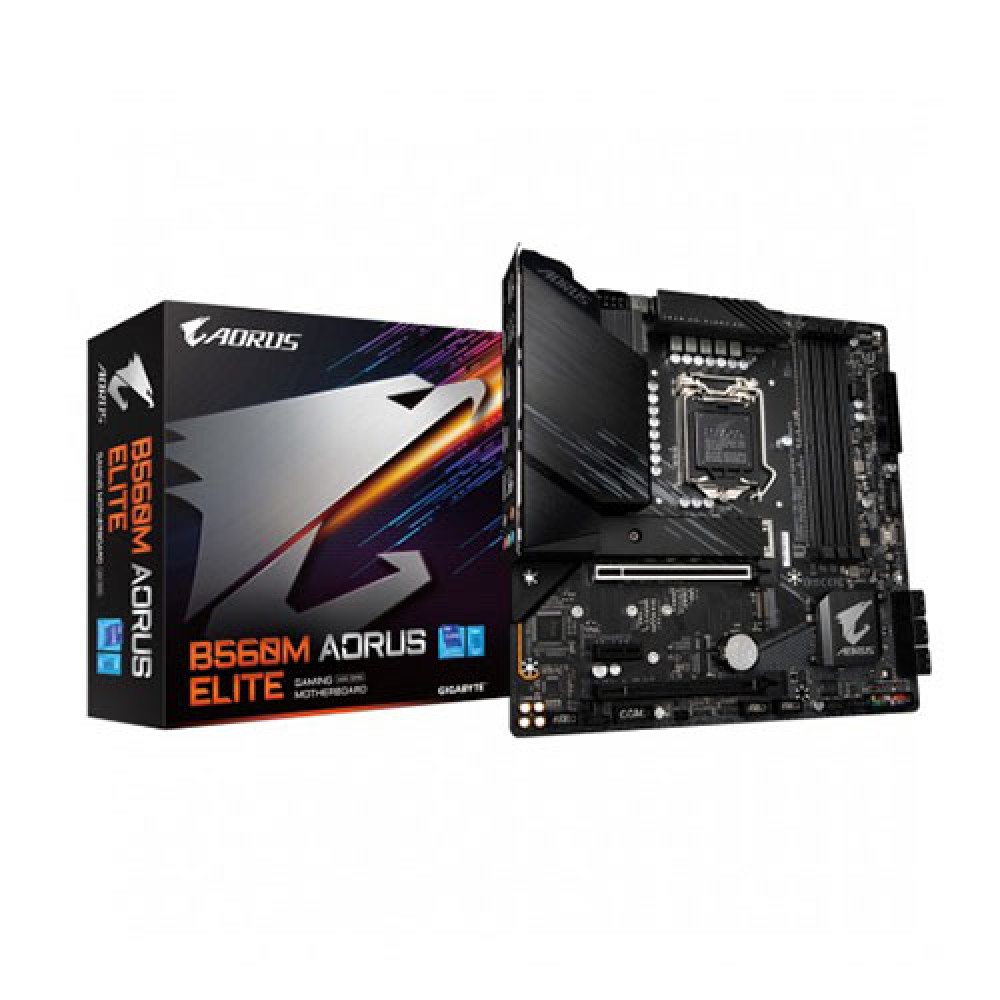

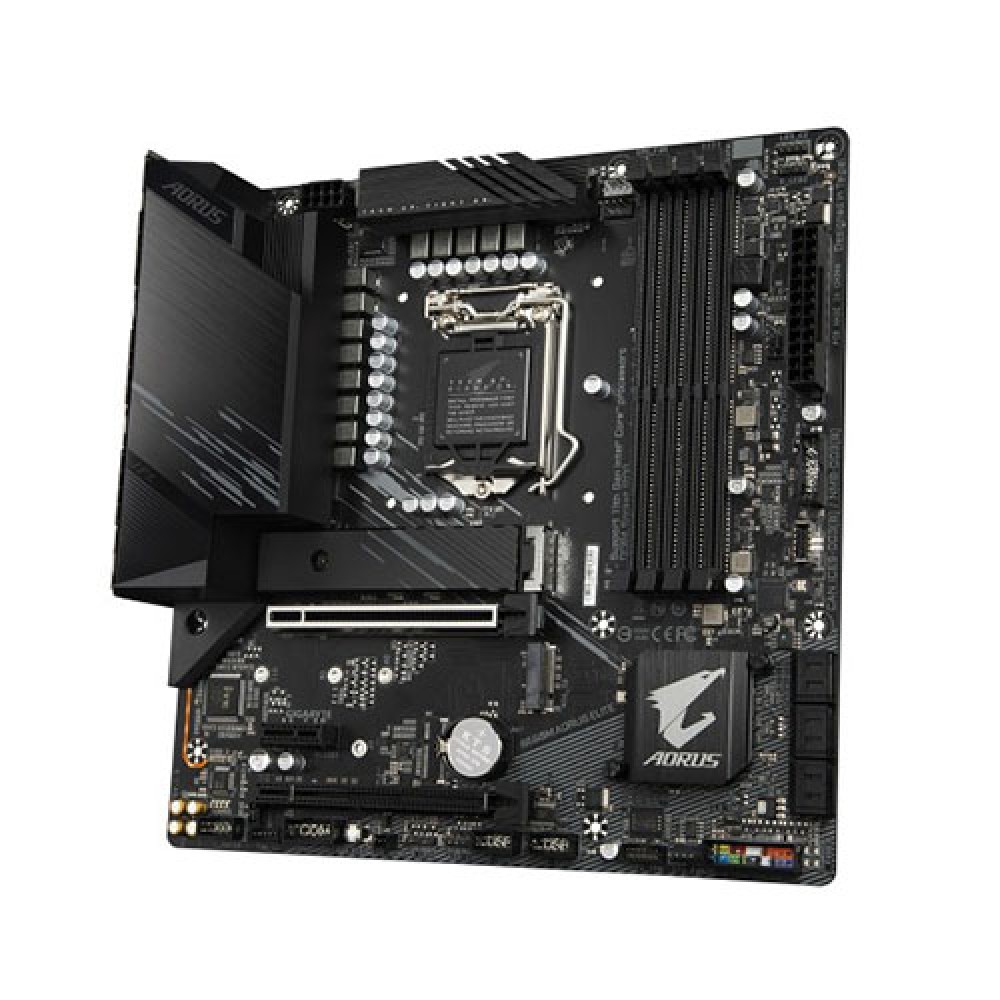

The Gigabyte B560M AORUS ELITE Motherboard From Gigabyte. Gigabyte B560M AORUS ELITE Motherboard supports 11th and 10th Gen Intel Core Series Processors. Gigabyte B560M AORUS ELITE Motherboard has Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. Gigabyte B560M AORUS ELITE Motherboard features direct 12+1 Phases Digital VRM with Low RDS(on) MOSFETs. It has Shielded Memory Routing for Better Memory Overclocking. It comes with a Fully Covered Thermal Design with High Coverage MOSFET Heatsinks. Gigabyte B560M AORUS ELITE Motherboard is powered by a fast 2.5GbE LAN with Bandwidth Management. It supports Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard It comes with Rear USB 3.2 Gen2 Type-C and Front USB3.2 Gen1 Type-C for Connecting Devices. Gigabyte B560M AORUS ELITE Motherboard has pre-installed IO Shield for Easy and Quick Installation. RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card. Gigabyte B560M AORUS ELITE Motherboard has a 3 Years Warranty.Direct 12+1 Phases Digital VRM Solution with Low RDS(on) MOSFETCleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.ADVANCED THERMAL SOLUTIONB560M AORUS uses high performance Fully Covered thermal design with high coverage MOSFET Heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.
