Main Feature | ||
Chipset | Intel® B560 Express Chipset | |
Memory Specifications | ||
Memory | 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O. | |
Graphics Specifications | ||
Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 * When the D-Sub port and DisplayPort are connected at the same time, images wi | |
Warranty Information | ||
Warranty | 3 Year | |
Performance | ||
CPU | LGA1200 package: 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® | |
More Information | ||
Operating System | Support for Windows 10 64-bit | |
Storage | ||
Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors * Refer to "1-7 | |
BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Network & Connectivity | ||
Wireless Communication module | AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate * Actual data rate may vary depending on environment and equipment. | |
Audio & Video | ||
Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. |

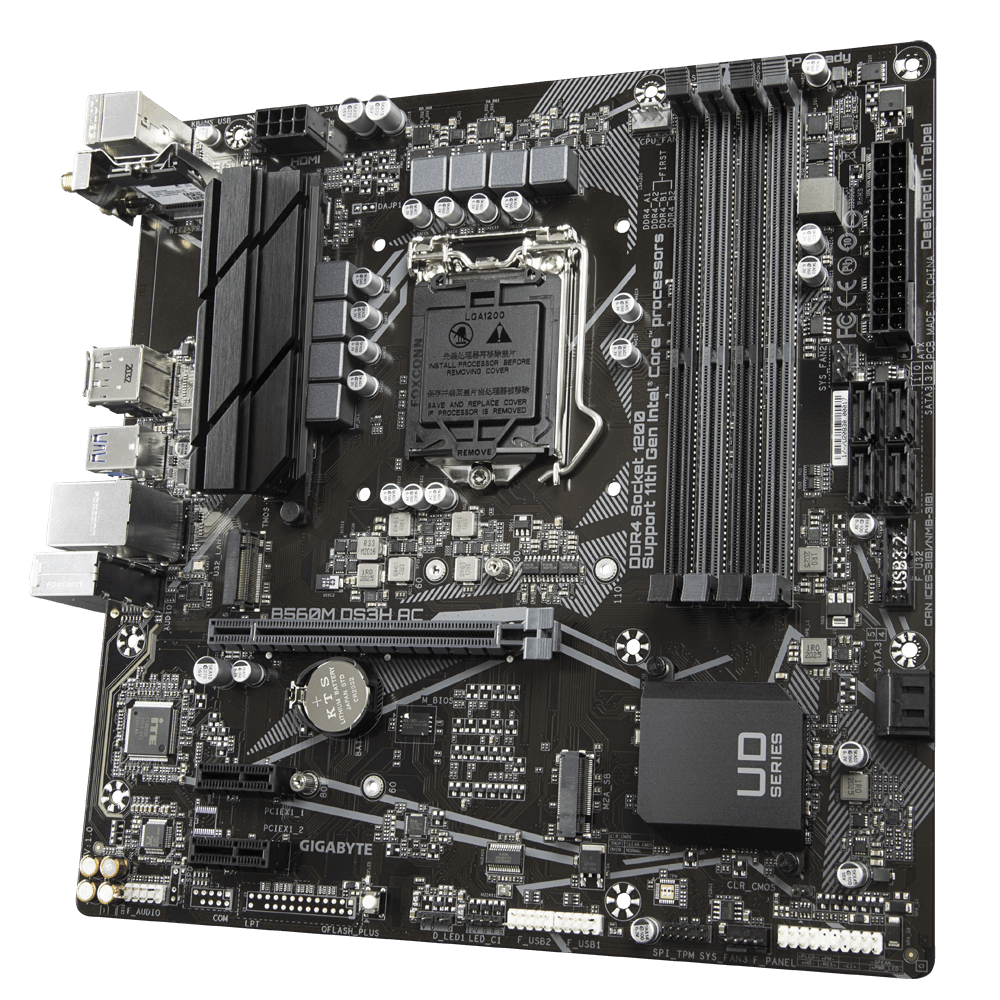

Intel® B560 Ultra Durable Motherboard with Direct 6+2 Phases Digital VRM, Full PCIe 4.0* Design, PCIe 4.0 M.2, Dual Band 802.11ac WIFI, GIGABYTE 8118 Gaming LAN, 8-ch HD Audio with Audio Caps, USB TYPE-C®, RGB FUSION 2.0, Q-Flash PlusSupports 11th and 10th Gen Intel® Core™ Series ProcessorsDual Channel Non-ECC Unbuffered DDR4, 4 DIMMsDirect 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETsDual Ultra-Fast NVMe PCIe 4.0/3.0* x4 M.2GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth ManagementOnboard Dual Band 802.11ac Wireless & BT 4.2 with WIFI AntennaUSB 3.2 Gen1 Type-C® for Fast and Versatile ConnectionsHigh Quality Audio Capacitors and Audio Noise GuardRGB FUSION 2.0 Supports Addressable LED & RGB LED StripsSmart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOPQ-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card* Actual support may vary by CPU.
