General | ||
Model | Gigabyte B550M AORUS PRO-P | |
Chipset | AMD B550 | |
Form Factor | Micro ATX | |
Additional Info | ||
BIOS Type | 1 x 256 Mbit flash | |
BIOS Model | AMI UEFI BIOS | |
BIOS Version | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
WiFi | No | |
Bluetooth | No | |
DisplayPort (DP) | 1 | |
FireWire | No | |
FireWire | No | |
TPM Port | Yes | |
RGB Support | Yes | |
RGB Sync | RGB FUSION 2.0 | |
RGB Connector | 2 x RGB LED strip headers | |
Memory Specifications | ||
Memory Type | DDR4 | |
Memory MHz | AMD Ryzen 5000 series (4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz), AMD Ryzen 3rd Gen (4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O. | |
Memory Channel | Dual | |
Memory Slot | 4 | |
Memory Max | 128GB | |
Optane Memory Support | No | |
Graphics Specifications | ||
Multi-GPU Support | No | |
PCI Express Slot | 2 x PCI Express x 16, 1 x PCI Express x 1 | |
CrossFire Support | No | |
Sli Support | No | |
Warranty Information | ||
Manufacturing Warranty | 01 Year | |
Compatibility | ||
Sockets Supported | AM4 | |
Supported CPU | AMD Ryzen 5000 Series/ 3rd Generation AMD Ryzen processors/ AMD Ryzen with Radeon Graphics processors | |
Supported Operating System | Windows 10 | |
Storage | ||
Storage Interface | 6.0Gb/s | |
M.2/SSD Expansion Slot | 2 | |
SATA Port | 4 x SATA | |
Raid Support | 0, 1, 10 | |
Network & Connectivity | ||
LAN Chipset | Realtek 2.5GbE LAN chip | |
LAN Speed (Mbps) | 2.5 Gbit / 1 Gbit / 100 Mbit | |
Ports | ||

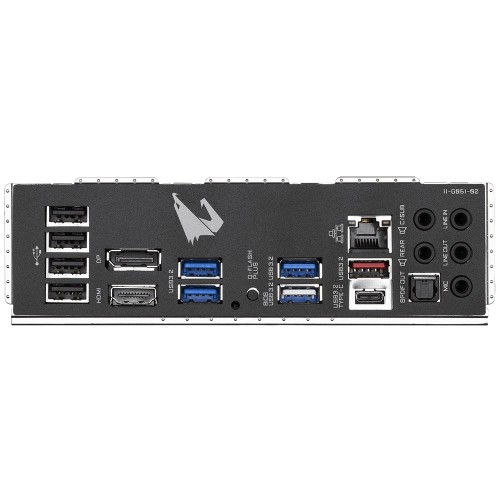

USB Port | 4 x USB2.0/1.1, 4 x USB3.2 Gen 1, 1 x USB3.2 Gen 2 Type-A, 1 x USB Type-C | |
HDMI Port | 1 | |
Audio & Video | ||
Audio Chipset | Realtek ALC1200 codec | |
Audio Channel | 2/4/5.1/7.1 |
Brand - Gigabyte, Model - Gigabyte B550M AORUS PRO-P, CPU Sockets - AM4, Chipset - AMD B550, Supported CPU - AMD Ryzen 5000 Series/ 3rd Generation AMD Ryzen processors/ AMD Ryzen with Radeon Graphics processors, Memory Type - DDR4, Memory MHz - AMD Ryzen 5000 series (4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz), AMD Ryzen 3rd Gen (4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz), AMD Ryzen 3rd Gen with Radeon Graphics (4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz), Memory Channel - Dual Channel, Memory Slot - 4, Memory Max. - 128 GB, Optane Memory Support - No, Multi-GPU Support - No, PCI Express Slot - 2 x PCI Express x 16, 1 x PCI Express x 1, Storage Interface - SATA 6Gb/s, M.2 Slot - 1 x M.2 (M2A_CPU 2242/2260/2280/22110), 1 x M.2 (M2B_SB 2242/2260/2280), LAN Chipset - Realtek 2.5GbE LAN chip, LAN Speed (Mbps) - 2.5 Gbit / 1 Gbit / 100 Mbit, Audio Chipset - Realtek ALC1200 codec, Audio Channel - 2/4/5.1/7.1-Channel, Wi-Fi - No, Bluetooth - No, USB Port - 4 x USB 2.0/1.1, 4 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-A, 1 x USB Type-C, VGA Port - No, DVI Port - No, HDMI Port - 1, DisplayPort (DP) - 1, IDE Port - No, SATA Port - 4 x SATA, BIOS Type - 1 x 256 Mbit flash, BIOS Model - AMI UEFI BIOS, BIOS Version - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, FireWire - No, CrossFire Support - No, Sli Support - No, RaidSupport - 0, 1, 10, Thunderbolt - No, TPM Port - Yes, COM Port - No, RGB Support - Yes, RGB Sync - RGB FUSION 2.0, RGB Connector - 2 x RGB LED strip headers, Form Factor - Micro ATX, Supported Operating System - Windows 10, Special Features - Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 12+2 Phases Digital Twin Power Design with 50A DrMOS Advanced Thermal Design with Enlarged VRM Heatsinks Ultra Durable PCIe 4.0 Ready x16 Slot Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with One Thermal Guard AMP-UP Audio with ALC1200 and premium capacitor Blazing Fast 2.5GbE LAN with Bandwidth Management DisplayPort & HDMI for Multiple Display RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP, Others - 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x water cooling CPU fan header, 3 x system fan headers, 2 x addressable LED strip headers, 2 x RGB LED strip headers, Warranty - 3 Year, Country of Origin - Taiwan, Made in/ Assemble - China
