Technical Specification | ||
BIOS Type | 2 x 128 Mbit flash | |
BIOS Model | AMI UEFI BIOS | |
BIOS Version | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
RGB Support | Yes | |
RGB Connector | 2 x RGB LED strip headers | |
General | ||

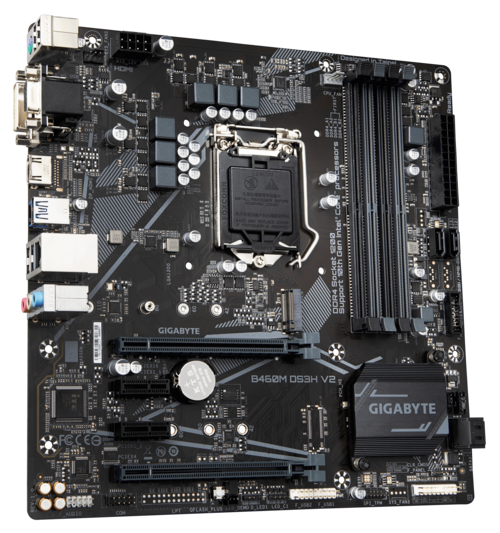

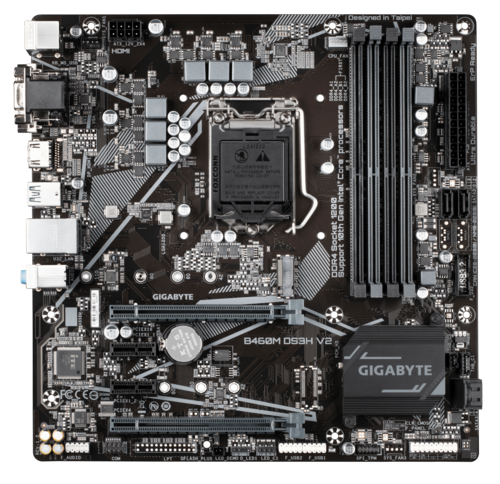

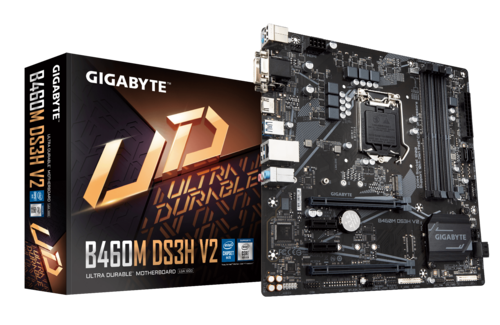

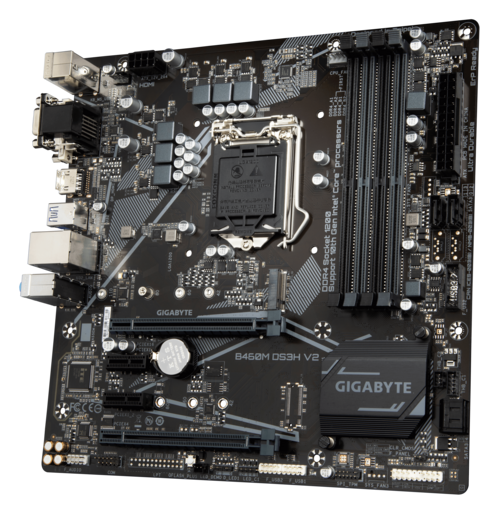

Model | Gigabyte B460M DS3 | |
Chipset | Intel B460 Express | |
Form Factor | Micro ATX | |
Memory Specifications | ||
Type | DDR4 | |
MHz | Intel Core i9/i7 (2933/2666/2400/2133MHz), Intel Core i5/i3/Pentium/Celeron (2666/2400/2133MHz) | |
Channel | Dual | |
Slot | 4 | |
Max | 128GB | |
Optane Memory Support | Yes | |
Graphics Specifications | ||
Graphics | Integrated Graphics | |
PCI Express Slot | 1 x PCI Express x 16 running at x16 (PCIEX16), 2 x PCI EXpress x 1 | |
Warranty Information | ||
Manufacturing Warranty | 03 Years | |
Compatibility | ||
Supported CPU | Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron Processors | |
Generation | 10th | |
Supported Operating System | Windows 10 | |
Storage | ||
Storage Interface | 6.0Gb/s | |
M.2/SSD Expansion Slot | 1 | |
SATA Port | 6 x SATA | |
Raid Support | 0,1,5,10 | |
Network & Connectivity | ||
LAN Chipset | Realtek GbE LAN | |
LAN Speed (Mbps) | 10/100/1000 | |

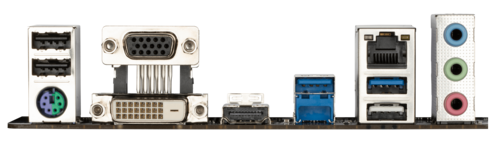

Ports | ||
USB Port | 5 x USB3.2 Gen 1, 4 x USB2.0 | |
VGA Port | 1 | |
DVI Port | 1 | |
HDMI Port | 1 | |
Audio & Video | ||
Audio Chipset | Realtek ALC887 | |
Audio Channel | 2/4/5.1/7.1 |
Brand - Gigabyte, Model - Gigabyte B460M DS3H, CPU Sockets - LGA 1200, Chipset - Intel B460 Express Chipset, Supported CPU - Intel Core i9/ i7/ i5/ i3/ Pentium/ Celeron Processors, Generation - 10th Gen, Memory Type - DDR4, Memory MHz - Intel Core i9/i7 (2933/2666/2400/2133MHz), Intel Core i5/i3/Pentium/Celeron (2666/2400/2133MHz), Memory Channel - Dual channel, Memory Slot - 4, Memory Max. - 128GB, Optane Memory Support - Yes, Graphic - Integrated Graphics, PCI Express Slot - 1 x PCI Express x 16 running at x16 (PCIEX16), 2 x PCI EXpress x 1, Storage Interface - 6Gb/s, M.2 Slot - 1 x M.2 Socket 3 (M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support), LAN Chipset - Realtek GbE LAN, LAN Speed (Mbps) - 10/100/1000, Audio Chipset - Realtek ALC887, Audio Channel - 2/4/5.1/7.1-channel, USB Port - 5 x USB 3.2 Gen 1, 4 x USB 2.0, VGA Port - 1, DVI Port - 1, HDMI Port - 1, SATA Port - 6 x SATA, BIOS Type - 2 x 128 Mbit flash, BIOS Model - AMI UEFI BIOS, BIOS Version - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, RaidSupport - 0,1,5,10, RGB Support - Yes, RGB Connector - 2 x RGB LED strip headers, Form Factor - Micro ATX, Supported Operating System - Windows 10, Special Features - Supports 10th Gen Intel Core Processors, Dual Channel Non-ECC Unbuffered DDR4 , 4 DIMMs, High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting, Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface, GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management, Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP, Anti-Sulfur Resistors Design, Ultra Durable 15KV Surge LAN Protection, GIGABYTE UEFI DualBIOS, Intel Optane Memory Ready, Others - 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 1 x front panel header, 1 x front panel audio header, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 2 x serial port headers, 1 x Clear CMOS jumper, Warranty - 3 Year, Country of Origin - Taiwan, Made in/ Assemble - China
