Technical Specification | ||
BIOS Type | 1 x 128 Mbit flash | |
BIOS Model | AMI UEFI BIOS | |
BIOS Version | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
RGB Support | Yes | |
RGB Sync | RGB Fusion supports RGB LED Strips in 7-Colors | |
General | ||

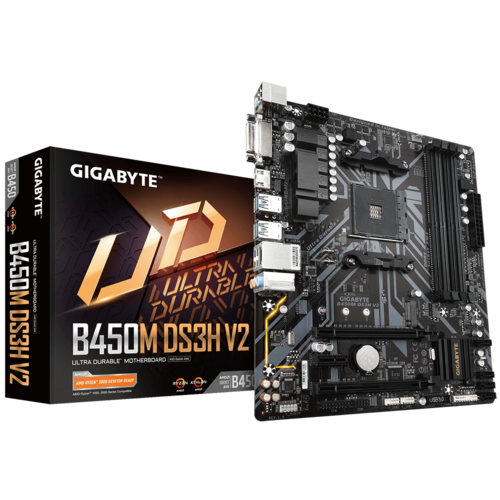

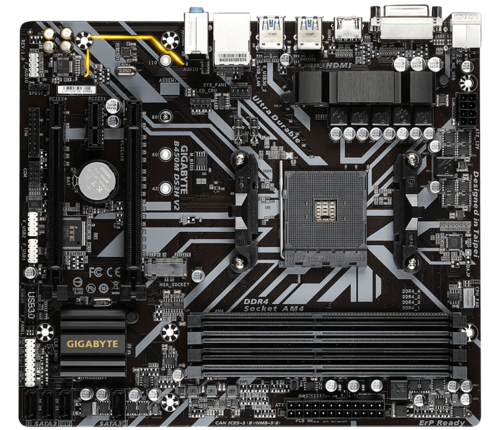

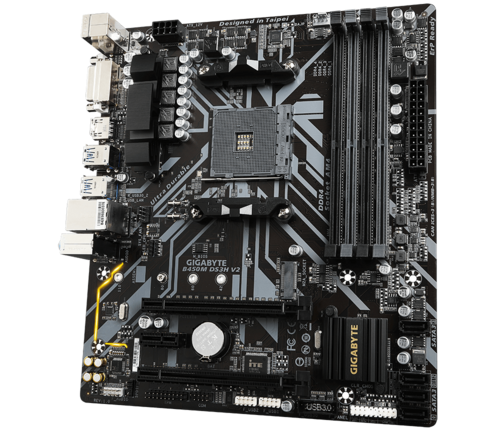

Model | Gigabyte B450M DS3H V2 | |
Chipset | AMD B450 | |
Form Factor | Micro ATX | |
Memory Specifications | ||
Type | DDR4 | |
MHz | 3600(O.C.) / 3466(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz | |
Channel | Dual | |
Slot | 4 | |
Max | 128GB | |
Optane Memory Support | No | |
Graphics Specifications | ||
Multi-GPU Support | AMD Quad-GPU CrossFire and 2-Way AMD CrossFire | |
PCI Express Slot | 2 x PCI Express x 16, 1 x PCI Express x 1 | |
CrossFire Support | Yes | |
Sli Support | No | |
Warranty Information | ||
Manufacturing Warranty | 03 Years | |
Compatibility | ||
Sockets Supported | AM4 | |
Supported CPU | 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors | |
Supported Operating System | Windows 10 | |
Storage | ||
Storage Interface | 6.0Gb/s | |
M.2/SSD Expansion Slot | 1 | |
SATA Port | 4 x SATA | |
Raid Support | 0, 1, 10 | |
Network & Connectivity | ||
LAN Chipset | Realtek GbE LAN chip | |
LAN Speed (Mbps) | 1000/100 Mbit | |

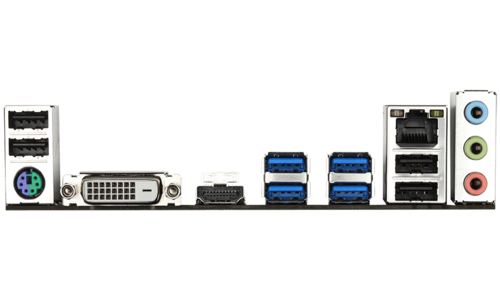

Ports | ||
USB Port | 4 x USB2.0/1.1, 4 x USB3.1 Gen 1 | |
DVI Port | 1 | |
HDMI Port | 1 | |
Audio & Video | ||
Audio Chipset. | Realtek ALC887 codec | |
Audio Channel | 2/4/5.1/7.1 |
GET READY FOR AMD RYZEN™ 3000-SERIES
GIGABYTE AM4 motherboards are ready to support the latest AMD Ryzen™ 3000 Processors and are backwards compatible with AMD Ryzen™ 2000 and 1000 Processors. With a rich list of features on GIGABYTE AM4 motherboards such as Ultra Durable™ Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design, GIGABYTE AM4 motherboards are perfect for users looking to build the best AMD platform systems.
AMD StoreMI technology
GIGABYTE 400-series motherboards maximize your PC's potential with
AMD StoreMI technology. StoreMI accelerates traditional storage devices
to reduce boot times and enhance the overall user experience. This
easy-to-use utility combines the speed of SSDs with the high capacity of
HDDs into a single drive, enhances the read/write speeds of the device
to match that of SSDs, bolsters data performance for incredible value,
and transforms the everyday PC to a performance driven system.
The benefits of AMD StoreMI:
• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users' computing behaviors
4+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
GIGABYTE UD series motherboards use a 4+2 phases digital PWM + Low
RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by
offering incredible precision in delivering power to the motherboard's
most power-hungry and energy-sensitive components as well as delivering
enhanced system performance and ultimate hardware scalability.
Benefits of Low RDS(on) MOSFETs
‧ Optimized gate charge to minimize switching losses.
‧ Lower temperature, smaller size, better thermal characteristics.
CONNECTIVITY
NVMe PCIe Gen3 x4 22110 M.2 Connector
GIGABYTE M.2 solution offers considerably faster storage performance
and support for both PCIe and SATA interfaces* for M.2 SSD devices.
* Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU.
Exclusive Realtek 8118 Gaming LAN
High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
Program On Top Gets Highest Priority
Real-Time Network Monitoring
The Industry's Leading LAN Static-Electricity & Surge Protection
GIGABYTE motherboards use ICs with up to 3 times the ESD resistance
levels compared to traditional ICs. This helps to better protect the
motherboard and its components against potential damage caused by static
electricity. GIGABYTE motherboards also feature special anti-surge ICs
that protect your motherboard, and your PC from any surge in power
delivery that may occur, helping to ensure that your PC is equipped to
deal with any potentially irregular and inconsistent power delivery.
Brand - Gigabyte, Model - Gigabyte B450M DS3H V2, CPU Sockets - AM4, Chipset - AMD B450, Supported CPU - 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors, Memory Type - DDR4, Memory MHz - 3600(O.C.) / 3466(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz, Memory Channel - Dual Channel, Memory Slot - 4, Memory Max. - 128 GB, Optane Memory Support - No, Multi-GPU Support - AMD Quad-GPU CrossFire and 2-Way AMD CrossFire, PCI Express Slot - 2 x PCI Express x 16, 1 x PCI Express x 1, Storage Interface - SATA 6Gb/s, M.2 Slot - 1 x M.2 (Type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD), LAN Chipset - Realtek GbE LAN chip, LAN Speed (Mbps) - 1000/100 Mbit, Audio Chipset - Realtek ALC887 codec, Audio Channel - 2/4/5.1/7.1-Channel, Wi-Fi - No, Bluetooth - No, USB Port - 4 x USB2.0/1.1, 4 x USB3.1 Gen 1, VGA Port - No, DVI Port - 1, HDMI Port - 1, DisplayPort (DP) - No, IDE Port - No, SATA Port - 4 x SATA, BIOS Type - 1 x 128 Mbit flash, BIOS Model - AMI UEFI BIOS, BIOS Version - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, FireWire - No, CrossFire Support - Yes, Sli Support - No, RaidSupport - 0, 1, 10, Thunderbolt - No, TPM Port - Yes, COM Port - No, RGB Support - Yes, RGB Sync - RGB Fusion supports RGB LED Strips in 7-Colors, Form Factor - Micro ATX, Supported Operating System - Windows 10, Special Features - Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs Feature Digital VRM Solution with Low RDS(on) MOSFETs HDMI, DVI-D Ports for Multiple Display Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management RGB Fusion supports RGB LED Strips in 7-Colors Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP, Others - 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x system fan header, 1 x M.2 Socket 3 connector, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, Warranty - 3 Year, Country of Origin - Taiwan, Made in/ Assemble - China
