Physical Specification | ||
PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) | |
M.2 Socket | 1 x M.2 connector | |
DVI-D port | 1 | |
HDMI port | 1 | |
USB (s) | 12 | |
LAN Port (s) | Intel® GbE LAN chip | |
Supported Storage | 6 x SATA 6Gb/s connectors | |
Audio | Realtek® ALC1220-VB codec | |
Technical Specification | ||
Supported CPU | AMD Ryzen 1st/2nd/3rd Generation / Ryzen with Radeon Vega Graphics Processors & Athlon with Radeon Vega Graphics | |
General | ||

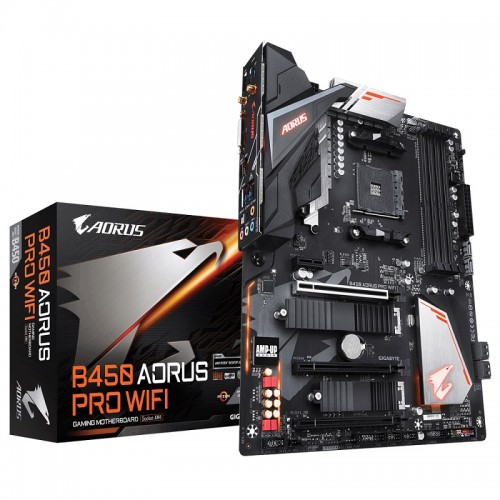

Model | Gigabyte B450 AORUS PRO WiFi | |
Chipset | AMD B450 | |
Form Factor | ATX | |
Additional Info | ||
BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Memory Specifications | ||
Memory Type | Dual Channel | |
Slots | 4 x DIMM | |
Supported Memory | DDR4 | |
Maximum Mamory | 64 GB | |
Graphics Specifications | ||
Graphics | Integrated Graphics | |
Max Shared Memory | 16 GB | |
Warranty Information | ||
Manufacturing Warranty | 03 Years |
