Input Features | ||
Audio | 1 x front panel audio header 1 x S/PDIF Out header | |
Fans | 1 x CPU fan header | |
Misc | 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) | |
Power | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector | |
Storage | 4 x SATA 6Gb/s connectors | |
USB | 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers | |

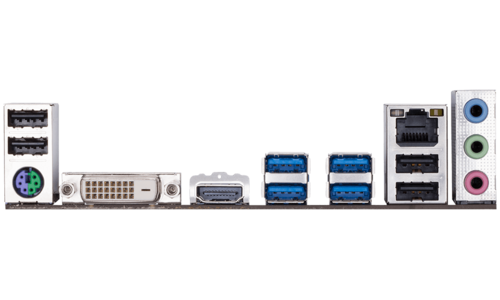

Output Features | ||
Audio | 3 x audio jacks | |
Misc | 1 x PS/2 keyboard/mouse port | |
Network | 1 x RJ-45 port | |
USB | 4 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports | |
Video | 1 x DVI-D port 1 x HDMI port | |
Physical Specification | ||
CPU | AMD Ryzen™ 2nd Generation processors AMD Ryzen™ with Radeon™ Vega Graphics processors AMD Ryzen™ 1st Generation processors | |
Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out | |
LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 | |
USB | 2 x USB 3.1 Gen 1 ports available through the internal USB header 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel | |
Technical Specification | ||
Operating System | Support for Windows 10 64-bit Support for Windows 7 64-bit * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it be | |
General | ||
Manufacturer | Gigabyte | |
Year | July 25, 2018 | |
Socket(s) | AM4 | |
Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm | |
Chipset | AMD B450 | |
Memory Specifications | ||
Slot Protocol | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) | |
Slot Type | Support for Extreme Memory Profile (XMP) memory modules | |
Maximum Speed | Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules | |
Maximum Capacity | 4 x DDR4 DIMM sockets supporting up to 128 GB of system memory | |
Maximum Channels | Dual channel memory architecture | |
ECC support | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
Graphics Specifications | ||
Integrated Graphics Processor | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) * Support for HDMI 2.0 version and HDCP 2. | |
Warranty Information | ||
Warranty | 3 Years | |
Warranty | 3 Years |
