Physical Specification | ||
Pump Connector | 3-pin | |
Fan Connector | 4-pin PWM | |
Bearing Type | Hydro Bearing | |
LED Type Addressable | RGB LED | |
LED Connector | 3-pin(+5V-D-G) | |
Technical Specification | ||
Pump Speed | 2400 RPM±10% | |
Pump Noise | 17.8 dB(A) | |
Fan Speed | 500~1800 RPM±10% | |
Fan Airflow | 69.34 CFM | |
Fan Air Pressure | 2.42 mmAq | |
Fan Noise | ≤30 dB(A) | |
Overall Noise | ≤37.2 dB(A) | |
General | ||
Model | Deepcool Gammaxx GL240 A RGB | |
Power | ||
Pump Rated Voltage | 12 VDC | |
Pump Rated Current | 0.2 A | |
Pump Power Consumption | 2.4 W | |
Fan Rated Voltage | 12 VDC | |
Fan Rated Current | 0.17 A | |
Fan Power Consumption | 2.04 W | |
LED Rated Voltage | 5 VDC | |
LED Power Consumption | 2.25 W(PUMP)/ 4.4 W(FAN×2) | |
Physical Description | ||
Net Weight | 1330 g | |
Radiator Dimensions | 282×120×27 mm | |
Radiator Material | Aluminum | |
Tube length | 380 mm | |
Pump Dimensions | 91×79×47 mm | |
Fan Dimensions | 120×120×25 mm | |
Warranty Information | ||
Manufacturing Warranty | 02 Years |
Protect what’s yours
In keeping safety first, GAMMAXX L240 A-RGB is equipped with DeepCool’s new standard for liquid cooling systems—Anti-Leak Technology.This new design helps regulate system pressure balance to significantly improve operational safety and minimize leakage risk.
EFFICIENT COOLING
The E-shaped micro water channel design effectively enhances heat transfer efficiency and circulation throughout the radiator.
ULTRA COMPATIBILITY

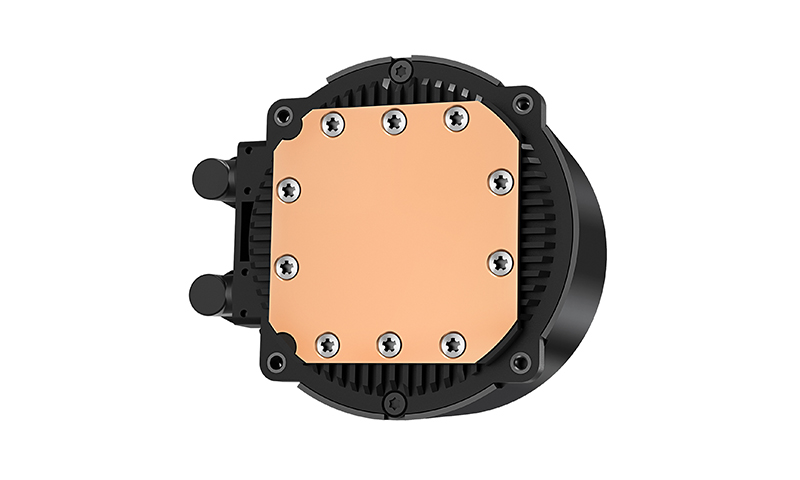

The large copper base provides more contact with CPU and supports mainstream Intel & AMD socket types
A-RGB & PWM FANS
Three A-RGB fans are included with exceptional performance and minimum noise level. The fans come with noise damping pads and support PWM control; its A-RGB lighting can also be synchronized with the waterblock.
