Physical Specification | ||
Heatpipes | 4 | |
CPU Socket | LGA1200, LGA1151, LGA1150, LGA1155, LGA1156, LGA775, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1 | |
Heat Sink Material | 4 Heat Pipes, Direct Contact, Aluminum Fins | |
LED Color | Red | |
Technical Specification | ||
Fan Speed | 600-2000 RPM (PWM) ± 10% | |
Fan Airflow | 34.13 CFM ± 10% | |
Fan Air Pressure | 1.79 mmH2O ± 10% | |
Fan Life Expectancy | 40,000 Hours | |
Fan Noise Level | 29.4 dBA | |
Fan Rated Voltage | 12VDC | |
Fan Rated Current | 0.2A | |
Fan Safety Current | 0.4A | |
Fan Power Consumption | 2.4W | |
General | ||
Model | Hyper H410 | |
Product Number | RR-H410-20PK-R1 | |
Series | Hyper | |
Type | Air Cooler | |
Physical Description | ||
Dimensions | 102 x 83.4 x 136 mm / 4.0 x 3.3 x 5.4 inch | |
Heat Sink Dimensions | 90 x 63.5 x 136 mm / 3.5 x 2.5 x 5.4 inch | |
Heat Sink Weight | 358g / 0.79lb | |
Heat Pipe Dimensions | Ø6mm | |
Fan Dimensions (L x W x H) | 92 x 92 x 25 mm / 3.6 x 3.6 x 1 inch | |
Fan Power Connector | 4-Pin (PWM) | |
Warranty Information | ||
Manufacturing Warranty | 02 Years |

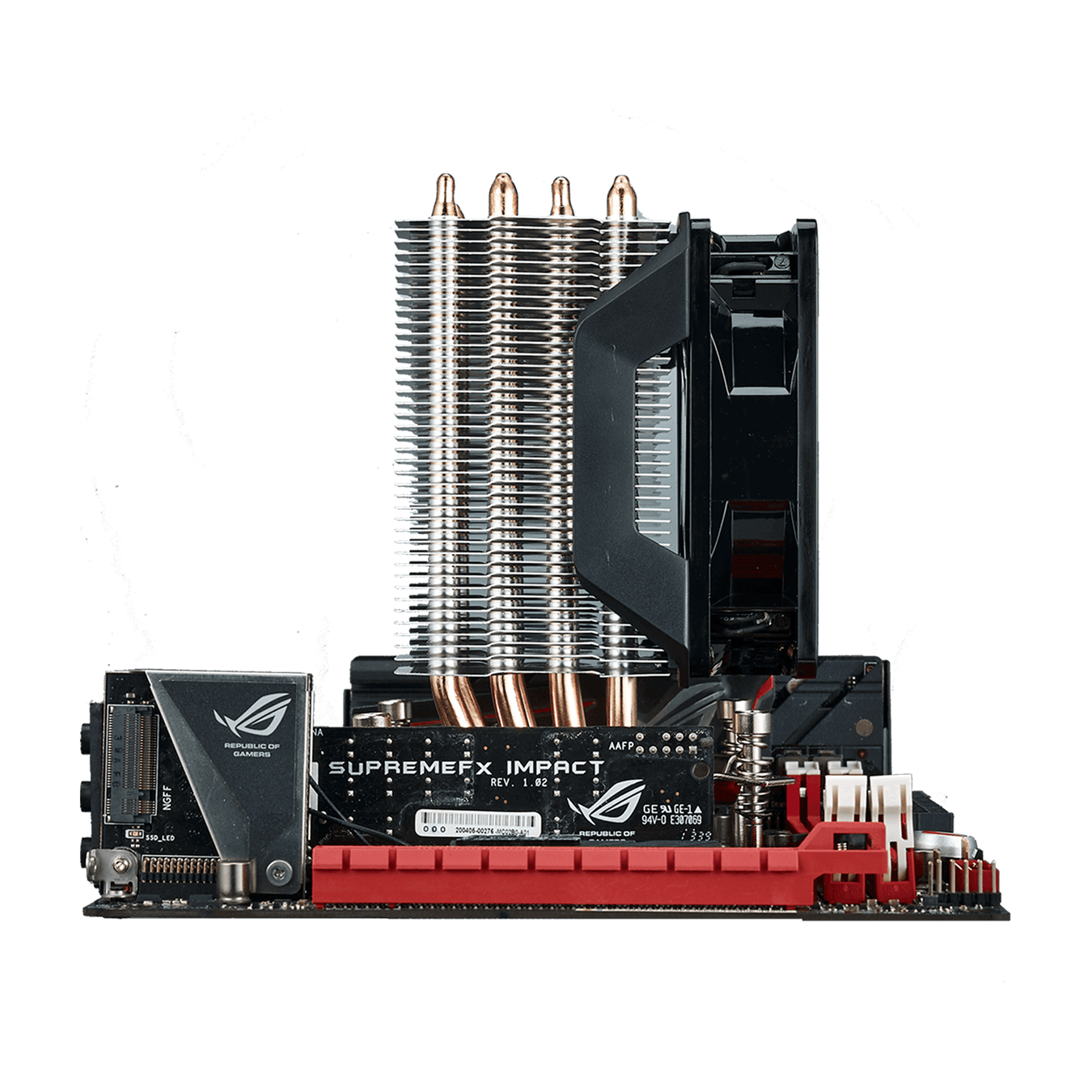

Outstanding Performance in Compact Size
The
Hyper H410R is a small low-profile quiet cooler designed to fit in
limited spaces. With its outstanding performance in its class, it is
clearly a perfect solution for small form factor cases.

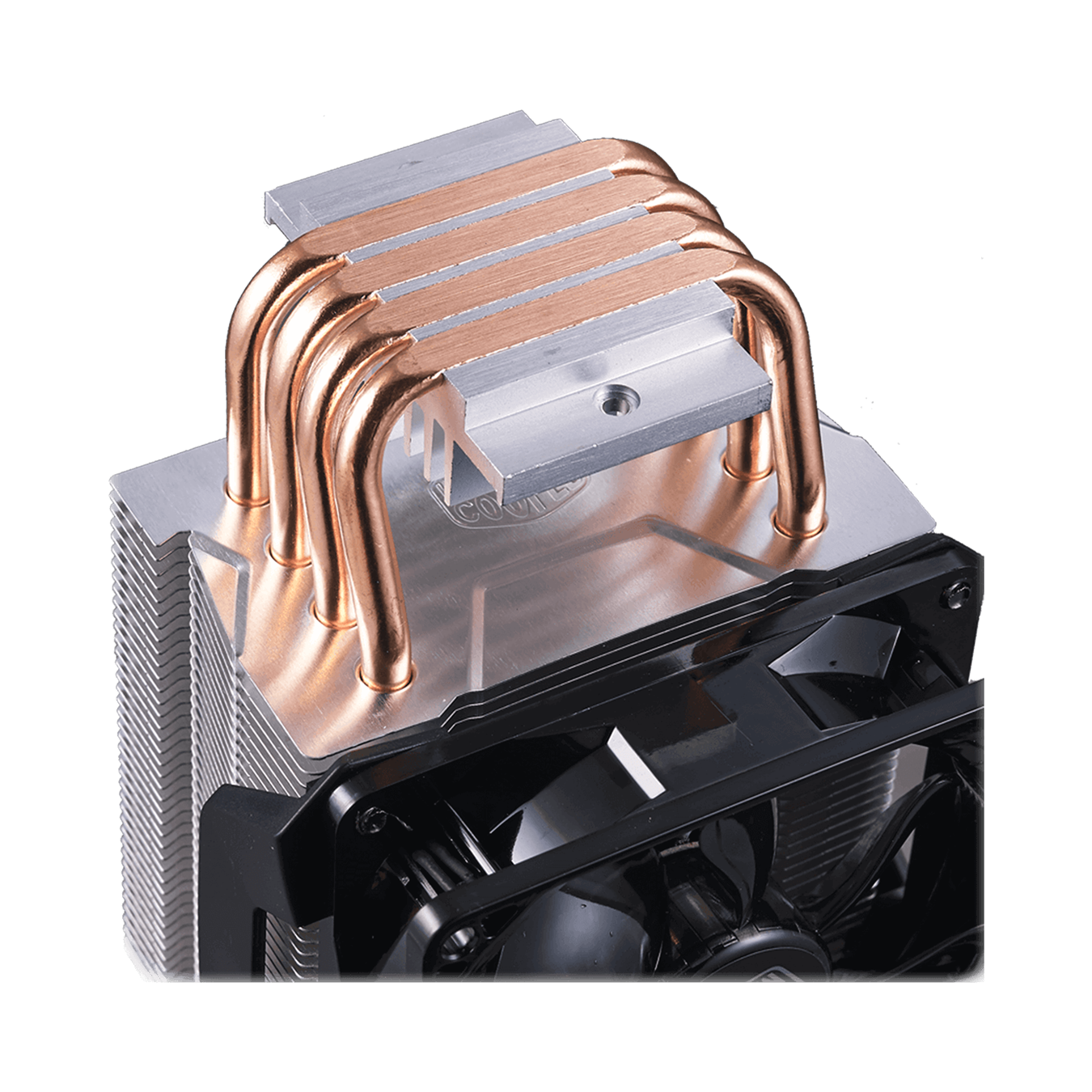

Direct Contact Technology
4 heat pipes with Direct Contact Technology effectively provide excellent heat dissipation
Precise Combination of Air Flow and Heat sink
Stacked fin array ensure least airflow resistance which allows cooler air flow into the heat sink
Snap and Play
Intuitive fan bracket design makes upgrading and removing the fa
