Asus TUF B365M-Plus Gaming Intel chipset 8th/9th gen ddr4 motherboard lga-1151
Price : TK.0
Brand : Asus
Model : Asus TUF B365M-Plus Gaming
Warrantty : 3 Year's (Official)
Product Code : TLB-102
Status :
- Out of stock
Biostar H310MHP DDR4 Motherboard
Specificaions :
| Physical Specification | ||
| HDMI | 1 x HDMI resolution 4096 x 2160 @ 30 Hz | |
| Display Port (s) | 1 x DisplayPort 1.2 resolution 4096 x 2304 @ 60 Hz | |

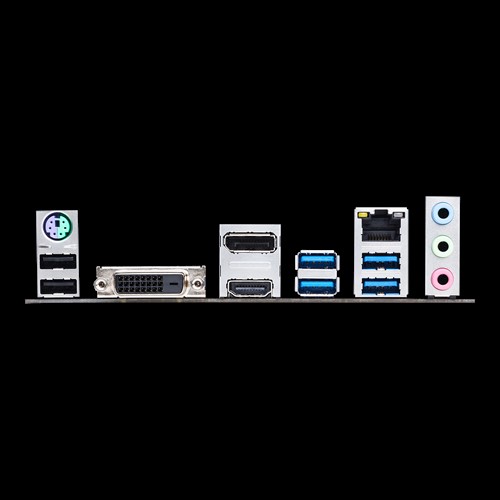

| USB (s) | Intel B365 Chipset : 6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board) Intel B365 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board) | |
| LAN Port (s) | Intel I219V, 1 x Gigabit LAN TUF LANGuard | |
| Supported Storage | 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 Intel O | |
| Audio | Realtek ALC1200 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PC | |
| Internal I/O Ports | 1 x Addressable RGB header 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin, moss green) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 for M Key, | |
| Technical Specification | ||
| Expansion Slots | 1 x PCIe 3.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (max at x4 mode) 1 x PCIe 3.0/2.0 x1, 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices suppor | |
| Basic Information | ||
| Supported CPU | Intel Socket 1151 9th / 8th Gen Intel® Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 | |
| Chipset | Intel B365 | |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F6 Qfan Control, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information | |
| Form Factor | mATX Form Factor 9.6 inch x 9.5 inch ( 24.4 cm x 24.1 cm ) | |
| Additional Info | ||
| Special Features | ASUS TUF PROTECTION - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: Precision control fo | |
| Memory Specifications | ||
| Type | Dual Channel Memory Architecture | |
| Slots | 4 x DIMM DDR4 | |
| Supported Memory | DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors | |
| Maximum Mamory | 64GB | |
| Graphics Specifications | ||
| Graphics | Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DVI-D/DisplayPort ports Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider Supports AMD CrossFireX Technology Supports up to 3 displays sim | |
| Max Shared Memory | Maximum shared memory of 1024 MB (for iGPU exclusively) | |
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |

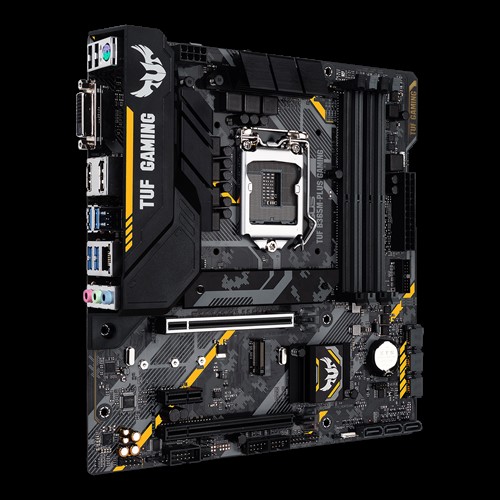

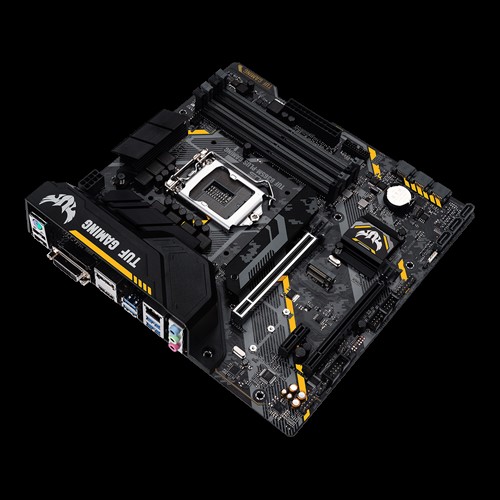

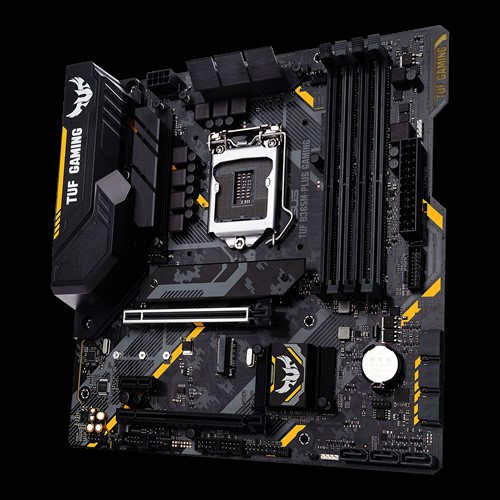

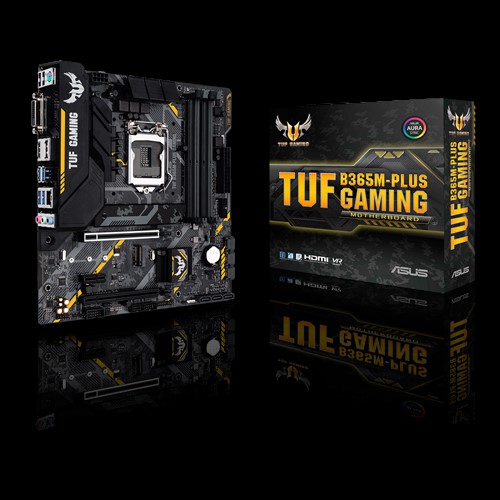

Asus TUF B365M-Plus Gaming LGA1151 9TH Gen Micro ATX Motherboard
TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case. TUF Gaming motherboards offer easy and safe DIY builds by leveraging great design, innovative engineering, and strong partnerships with major component manufacturers. The unrivalled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance. TUF Gaming Alliance is the marque of collaboration between ASUS and major PC-component manufacturers, including trusted brands like Ballistix, Cooler Master, Corsair, G.Skill, In Win and Themaltake. A growing range of compliant parts, from PC chassis and power supplies to CPU coolers and DRAM, guarantee both compatibility and aesthetic harmony. We're also continually increasing our partnerships, making the TUF Gaming Alliance ever stronger. SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards. System temperatures are key to a stable gaming rig. TUF Gaming motherboards include FAN Xpert 2+ software that's able to intelligently control system fans based upon the input of sensor. This ensures that your TUF Gaming system stays perfectly cooled, no matter how long you play. ASUS OptiMem preserves memory signal integrity by routing traces and vias to the optimal PCB layer, and our T-Topology trace layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements allow the TUF Gaming motherboards to support a wide range of dual and quad-DIMM memory kits, while providing your rig with the stability it needs to deal with any type of workload - whether you're gaming or running intensive applications. A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware. TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
