Physical Specification | ||
PCI | 1 x PCIe 3.0 x16 (x16 mode), 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 | |
M.2 Socket | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports, 1 x M.2_1 socket 3, | |
HDMI | 1 | |
Display Port (s) | 1 | |

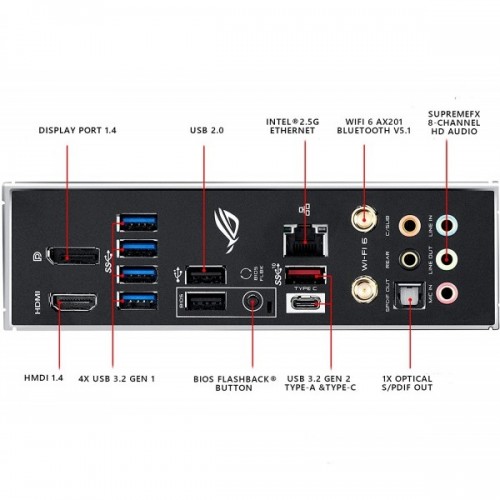

USB | Rear USB Port ( Total 8 ) | |
LAN Port | Intel I225-V 2.5Gb Ethernet ASUS LANGuard | |
Supported Storage | 6 x SATA 6Gb/s port(s) | |
Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A | |
Technical Specification | ||
Sockets Supported | LGA 1200 | |
Supported CPU | 10th Gen Intel Core and Pentium Gold / Celeron processors | |
Generation | 10th | |
Supported Operating System | Windows 10 | |
General | ||

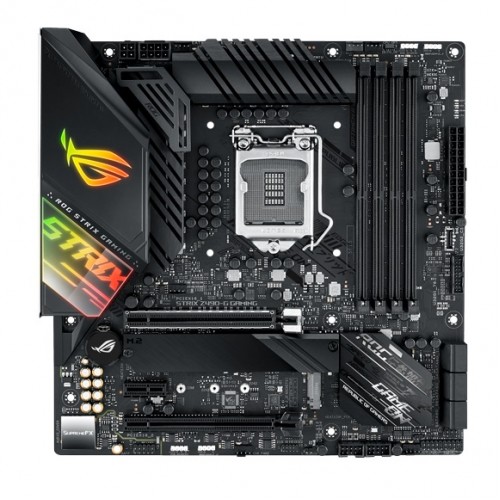

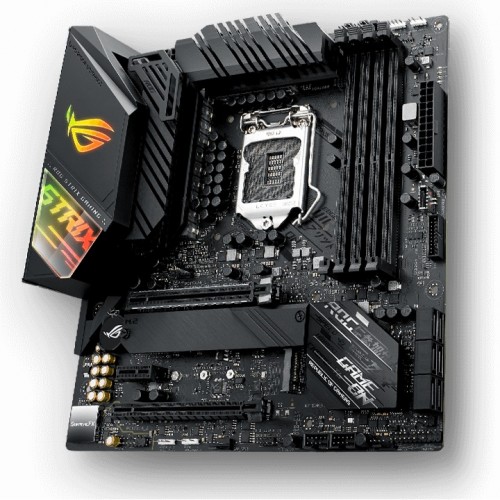

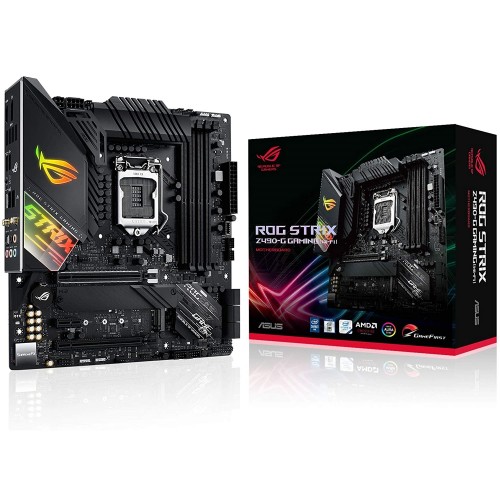

Model | Asus ROG STRIX Z490-G GAMING WI-FI | |
Chipset | Intel Z490 | |
Form Factor | mATX | |
Memory Specifications | ||
Type | Dual | |
Slots | 4 | |
Supported Memory | 4800(O.C.)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Suppor | |
Memory Max | 128 GB | |
Graphics Specifications | ||
Graphics | Integrated Graphics Processor | |
DisplayPort | 1 x 1.4 | |
HDMI | 1 x 1.4b | |
Technology | Supports AMD 2-Way CrossFireX Technology | |
Warranty Information | ||
Manufacturing Warranty | 03 Years |
The ROG Strix Z490-G Gaming (Wi-Fi) motherboard boasts boosted power delivery, optimized cooling design, and intuitive ROG software to help you get the most out of the latest 10th Generation Intel Core processors. And it's not just about performance, its cyberpunk-inspired aesthetics and a mirrored stainless steel Strix nameplate give it looks to match. ROG Strix Z490-G Gaming (Wi-Fi) helps you get the most out of your gaming build with up-rated power delivery and optimized cooling. Intelligent controls let you manage to overclock, cooling, and networking settings easily, giving you everything you need to harness the full potential of your build for top-tier gaming performance. Digital power control and an array of power stages ensure ROG Strix Z490-G Gaming (Wi-Fi) has the muscle to control the latest Intel CPUs. The ProCool II socket is built to tight specifications to ensure flush contact with the PSU power lines and have a metal armor for improved heat dissipation. The connector's lower impedance helps prevent hotspots and improves reliability. The Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU. ROG Strix Z490-G Gaming (Wi-Fi) utilizes 12+2 power stages to combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand. Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard. ROG Strix Z490-G Gaming (Wi-Fi) provides you with the latest connectivity for supersmooth online experiences and blisteringly-fast file transfers. The superior audio performance gives you a massive advantage, allowing you to pick up on the smallest audio cues for a completely immersive gaming experience. The cyberpunk-inspired aesthetics are accentuated by the bold slashes and cybertext. Together with the most diverse ROG ecosystem, Pair your ROG Strix Z490-G Gaming (Wi-Fi) with other ROG products to customize a gaming rig that reflects your personal style. ROG Strix Z490-G Gaming (Wi-Fi) is unmistakably ROG, with its mirrored stainless steel Strix nameplate, diagonal lines across the I/O shield, and futuristic cybertext markings. Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics. The automated CPU tuning feature of 5-Way Optimization leverages the same onboard intelligence as AI Overclocking but goes further by running a Prime95 based stress test to deliver a result that's well-tuned from the get-go.
