Physical Specification | ||
EXPANSION SLOTS | Intel 12th Gen Processors 1 x PCIe 5.0 x16 slot(s) Intel B660 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2x PCIe 4.0 x1 slots | |
SPECIAL FEATURES | Extreme Engine Digi+ – 5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink ASUS EZ DIY – BIOS FlashBack™ butto | |
OPERATING SYSTEM | Windows 11 64-bit, Windows 10 64-bit | |
FORM FACTOR | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) | |
Basic Information | ||
CPU | Intel Socket LGA1700 for 12th Gen Intel Core™, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 | |
CHIPSET | Intel B660 Chipset | |
MEMORY | 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(OC)/ Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II | |
Memory Specifications | ||
STORAGE | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 – Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel B660 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 | |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
Graphics Specifications | ||
GRAPHICS | 1 x DisplayPort 1 x HDMI port | |
Warranty Information | ||
Manufacturing Warranty | 3 years | |
Network & Connectivity | ||
ETHERNET | 1 x Intel 2.5Gb Ethernet ASUS LANGuard | |
WIRELESS & BLUETOOTH | "Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2" | |
Ports | ||

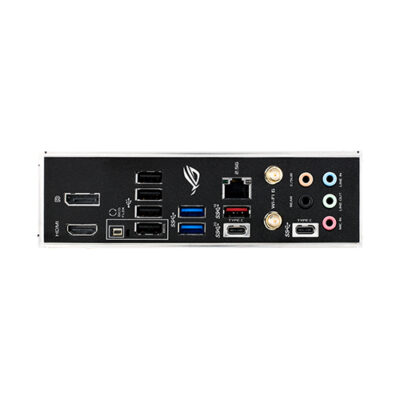

USB | Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 3x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector | |
AUDIO | "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 |

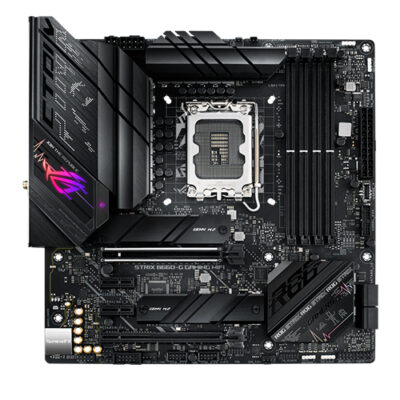

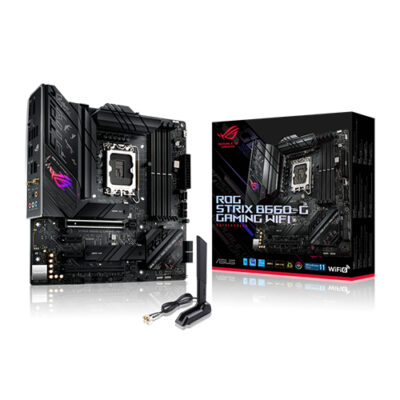

ASUS ROG STRIX B660-G GAMING WIFI Motherboard is the premier choice for DIY builders who enjoy working with a well-balanced microATX-based platform. Its hefty heatsinks and premium power delivery unleash the full force of 12th Gen Intel Core processors that feature full support for DDR5 memory and PCIe 5.0. Meanwhile, onboard passively cooled PCIe 4.0 M.2 slots offer lightning-fast data transfers for an endless variety of scenarios.
TEAMED POWER STAGES
12+1 power stages combine high-side and low-side MOSFETS and drivers into a single package, delivering the power and efficiency that the latest Intel processors can take full advantage of.
ALLOY CHOKES AND DURABLE CAPACITORS
High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
PROCOOL POWER CONNECTOR
The ASUS ProCool socket is built to exact specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.
DIGI+ POWER CONTROL
The Digi+ voltage regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.
SIX-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
PCIe Performance
With two strategically placed M.2 slots, ROG Strix B660-G Gaming WiFi takes full advantage of CPU and chipset bandwidth to usher in support for dizzyingly quick PCIe 4.0 SSDs and high-capacity drives that blaze past traditional SATA-based storage.
