Technical Specification | ||
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
Audio | Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features: - Audio Shielding - Premium Japanese audio capacitors - De | |
PCI | 1 x PCIe 4.0/3.0 x16 slot 1 x PCIe 3.0 x1 slot | |
M.2 Socket | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports | |
General | ||

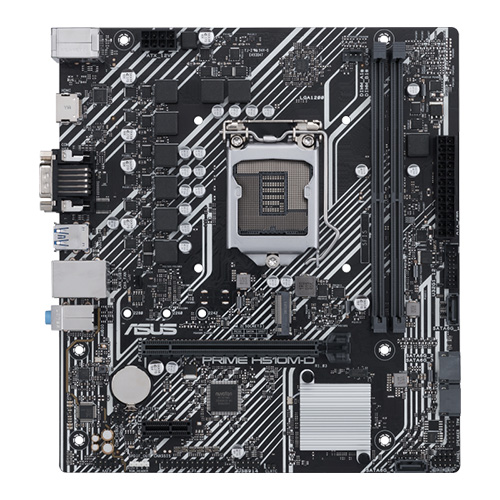

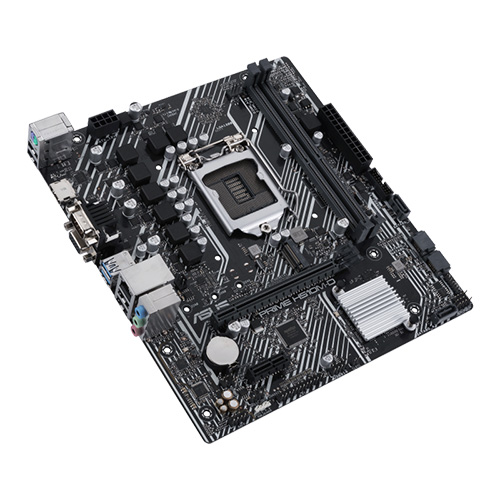

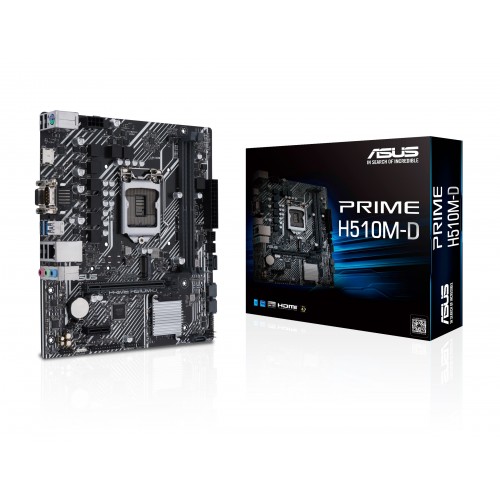

Model | PRIME H510M-D | |
Intel LGA 1200 socket | 11th and 10th Gen Processors | |
Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 | |
Chipset | Intel H510 Chipset | |
Form Factor | microATX 22.6cm x 20.3cm | |
Memory Specifications | ||
Type | 2DDR4 (Dual Channel) | |
Supported Memory | 64GB | |
Maximum Mamory | DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture | |
Graphics Specifications | ||
Graphics | 1 x D-Sub 1 x HDMI 2.0 | |
Warranty Information | ||
Manufacturing Warranty | 03 Years | |
Ports | ||
HDMI | 1 x HDMI 2.0 | |

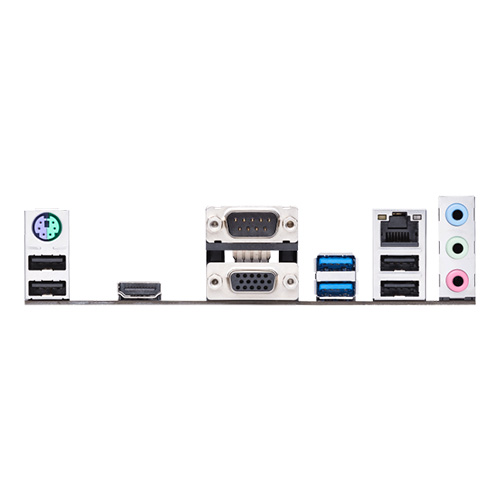

USB (s) | Rear USB:Total 6 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB:Total 4 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports | |
Supported Storage | M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports | |
Audio | Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC: - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features: - Audio Shielding - Premium Japanese audio capacitors - De | |
Internal I/O Ports | Fan and Cooling related: 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related: 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related: 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 1 header support | |
D-Sub (s) | 1 x D-Sub port |
ASUS Prime series motherboards are expertly engineered to unleash the full potential and supports 11th and 10th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME H510M-D provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
This motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity. ASUS PRIME H510M-D Motherboard featured with Intel LGA 1200 socket: Ready for 11th and 10th Gen Intel Processors, Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel 1 Gb Ethernet and USB 3.2 Gen 1, Comprehensive cooling: PCH heatsink and Fan Xpert, 5X Protection III: Multiple hardware safeguards for all-round protection.The ASUS Prime H510 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads and also features with comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS.
ASUS H510 series motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. This latest ASUS PRIME H510M-D Intel 10th and 11th Gen Micro ATX Motherboard comes with 03 Years Warranty.
