Physical Specification | ||
D-Sub (s) | 1 x D-Sub | |
Technical Specification | ||
Expansion Slots | Intel 10th Gen Processors: 1 x PCIe 3.0 x16 (x16 mode) Intel H410 Chipset: 2 x PCIe 3.0 x1, 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) | |
Basic Information | ||
Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 | |
Chipset | Intel H410 | |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
Form Factor | mATX Form Factor: 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm ) | |
Physical Description | ||
HDMI | 1 x HDMI 1.4b | |
USB (s) | Rear USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) | |
LAN Port (s) | Realtek RTL8111H | |
Internal I/O Ports | 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/228 | |
Additional Info | ||
Special Features | Software Features: ASUS Exclusive Software Armory Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS | |
Memory Specifications | ||
Type | Dual Channel Memory Architecture | |
Slots | 2 x DIMM | |
Supported Memory | 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memor | |
Maximum Mamory | 64GB | |
Graphics Specifications | ||
Graphics | Integrated Graphics Processor 1 x D-Sub 1 x HDMI 1.4b |

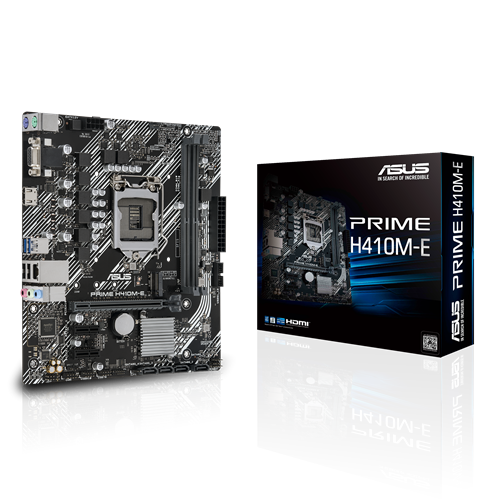

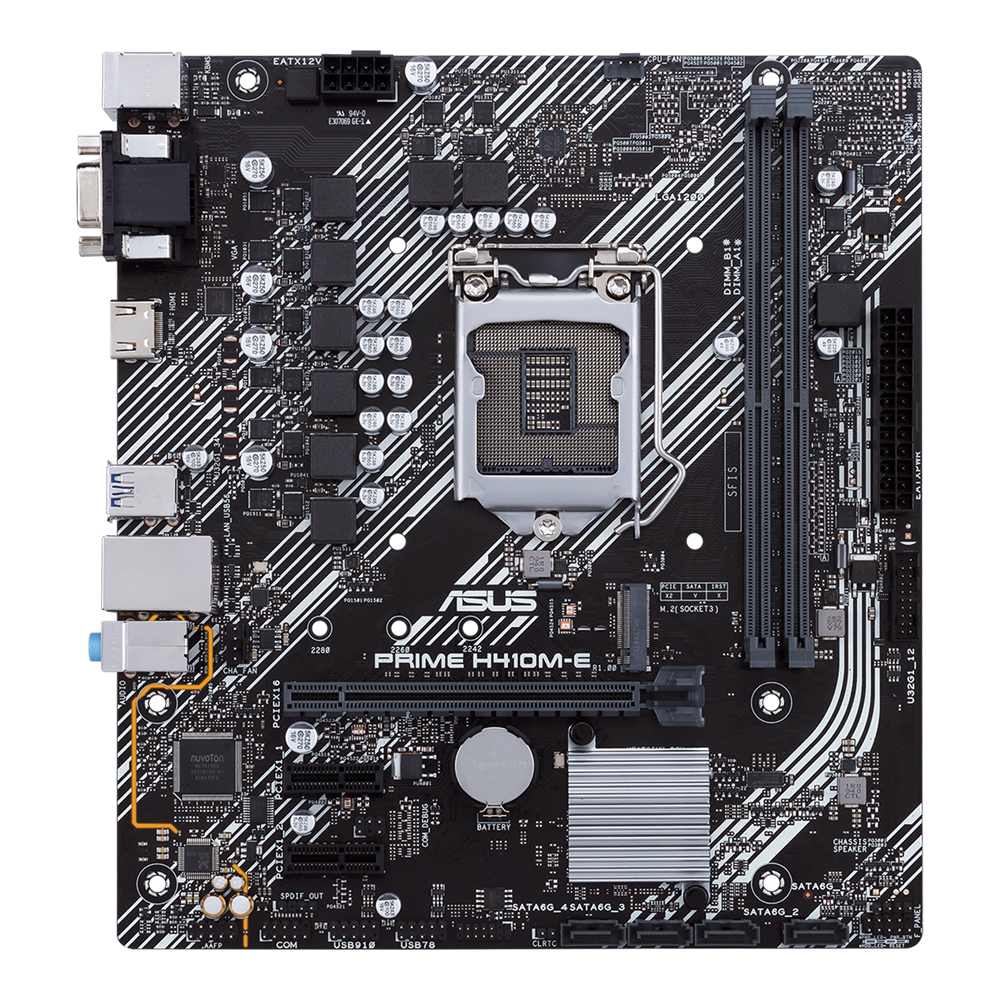

ASUS Prime series is expertly engineered to unleash the full potential of 10th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H410 series motherboards provide daily users and DIY PC builders a range of performance tuning options via included software and hardware. Comprehensive controls form the foundation of the ASUS Prime series. The Prime H410 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity. Prime H410 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Prime H410 series is built to handle the additional cores and increased bandwidth of 10th Generation Intel Core processors. An H410 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling, and flexible transfer options. Prime H410 series add the nuanced details that improve every experience, exclusive codecs that provide pristine audio quality let you customize your system to create a uniquely personal look. Intelligent design and premium hardware create audio quality, unlike anything you've ever experienced. Separates analog/digital signal domains, significantly reducing multi-lateral interference. Ensures minimal crosstalk between audio paths. Premium parts provide an immersive sound signature, with exceptional fidelity.
