Physical Specification | ||
Storage Interface | 6.0Gb/s | |
M.2/SSD Expansion Slot | 1 | |
SATA Port | 6 x SATA | |
Raid Support | 0, 1, 5, 10 | |
LAN Chipset | Realtek RTL8111H | |
LAN Speed (Mbps) | 10/100/1000 | |
Technical Specification | ||
BIOS Type | 128 Mb Flash | |
BIOS Model | AMI UEFI BIOS | |
General | ||
Model | Asus PRIME B460M-A | |
Chipset | Intel B460 | |
Form Factor | Micro ATX | |
Sockets Supported | LGA1200 | |
Supported CPU | 10th Generation Intel Core i9 / i7 / i5 / i3 / Pentium Gold / Celeron Processors | |
Generation | 10th | |
Supported Operating System | Windows 10 | |
Physical Description | ||

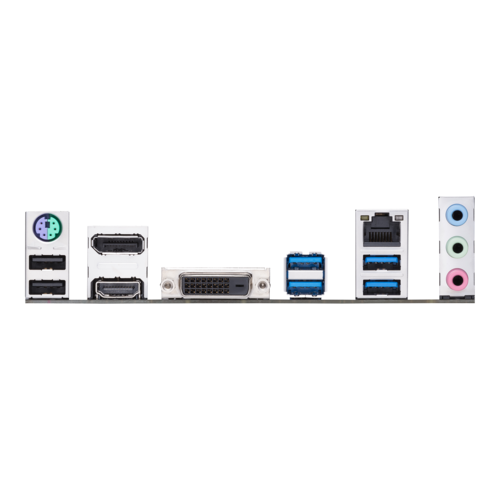

USB Port | 5 x USB 3.2 Gen 1, 4 x USB 2.0 | |
DVI Port | 1 | |
HDMI Port | 1 | |
Audio Chipset | Realtek ALC887 | |
Audio Channel | 7.1 | |
Additional Info | ||
WiFi | No | |
Bluetooth | No | |
DisplayPort (DP) | No | |
TPM Port | Yes | |
COM Port | Yes | |
RGB Support | Yes | |
RGB Sync | Aura Sync | |
RGB Connector | 2 x Aura RGB Strip Header | |
Memory Specifications | ||
Type | DDR4 | |
MHz | 2933/ 2800/ 2666/ 2400/ 2133 MHz | |
Slot | 4 | |
Max | 128GB | |
Optane Memory Support | Yes | |
Graphics Specifications | ||
Graphics | Integrated Graphics | |
Multi-GPU Support | No | |
PCI Express Slot | 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 | |
CrossFire Support | No | |
Sli Support | No | |
Warranty Information | ||
Manufacturing Warranty | 03 Years |

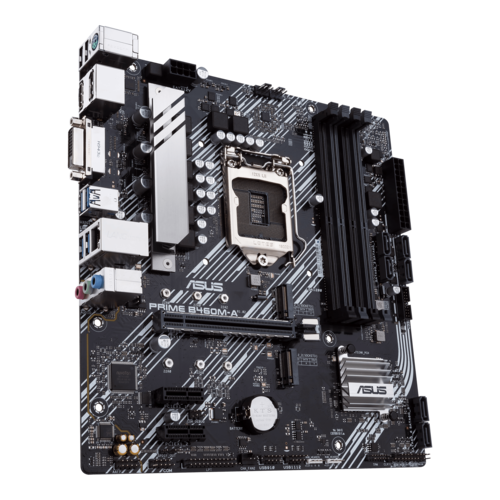

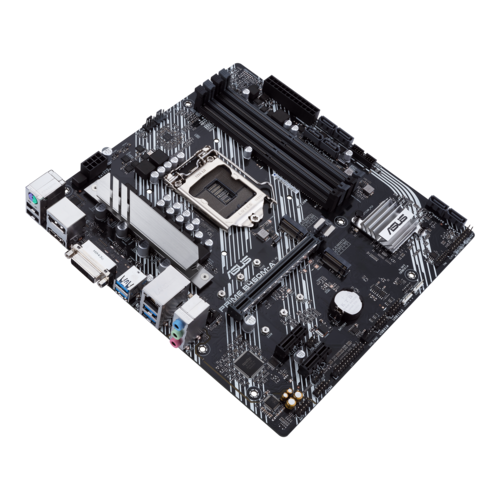

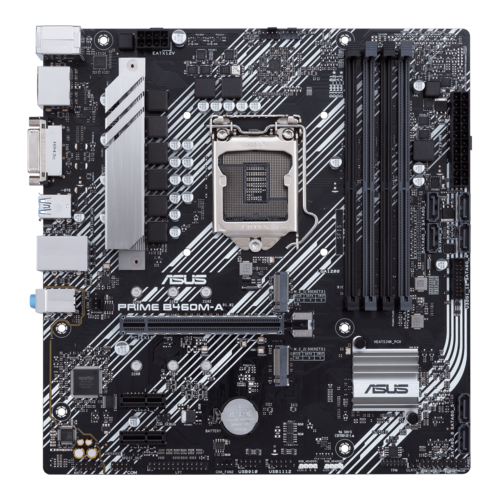

The ASUS PRIME B460M-A LGA 1200 Micro-ATX Motherboard is designed around the Intel B460 chipset, supporting 10th Gen Intel Core, Pentium Gold, and Celeron processors with an LGA 1200 socket. It has four memory slots supporting up to 128GB of dual-channel DDR4 RAM, which can run up to 2933 MHz. There are six SATA III ports and two M.2 slots for storage. This motherboard features a micro-ATX form factor, allowing for use in smaller cases. Other integrated features include Realtek RTL811H Gigabit Ethernet and Realtek ALC887 7.1-channel HD audio.
This motherboard features the Intel B460 Chipset and the Intel LGA Socket 1200, making it ready for 10th Gen Intel Core processors.
ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk. This allows for improved memory stability and compatibility, lower memory latencies at equivalent voltages, and improved memory frequency margin.
The dual M.2 slots support data transfer rates of up to 32 Gb/s via PCIe 3.0 x4 bandwidth, enabling quicker boot times and app load times with OS or application drives.
This motherboard separates analog and digital signal domains, significantly reducing multi-lateral interface. Crosstalk is minimized by the separate layer between left and right tracks.
Armoury Crate is a software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device. The software also provides control of settings for ASUS products, including keyboard and mouse preferences. Armoury Crate can even provide dedicated product registration and help from the ASUS community.
SafeSlot Core is the ASUS-exclusive PCIe slot. The fortified design anchors to the motherboard by a special hook. SafeSlot Core provides 1.6 times the retention and 1.3 times the shearing resistance than standard expansion slots.
Model - Asus PRIME B460M-A, CPU Sockets - LGA1200, Chipset - Intel B460, Supported CPU - 10th Generation Intel Core i9/ i7/ i5/ i3/ Pentium Gold/ Celeron Processors, Generation - 10th, Memory Type - DDR4, Memory MHz - 2933/ 2800/ 2666/ 2400/ 2133 MHz, Memory Slot - 4, Memory Max. - 128GB, Optane Memory Support - Yes, Graphic - Integrated Graphics, Multi-GPU Support - No, PCI Express Slot - 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1, Storage Interface - 6Gb/s, M.2 Slot - 1 x M.2 Socket 3 (M Key type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)), LAN Chipset - Realtek RTL8111H, LAN Speed (Mbps) - 10/100/1000, Audio Chipset - Realtek ALC887, Audio Channel - 7.1-Channel, WiFi - No, Bluetooth - No, USB Port - 5 x USB 3.2 Gen 1, 4 x USB 2.0, VGA Port - No, DVI Port - 1, HDMI Port - 1, DisplayPort (DP) - No, IDE Port - No, SATA Port - 6 x SATA, BIOS Type - 128 Mb Flash, BIOS Model - AMI UEFI BIOS, FireWire - No, CrossFire Support - No, Sli Support - No, RaidSupport - 0, 1, 5, 10, Thunderbolt - No, TPM Port - Yes, COM Port - Yes, RGB Support - Yes, RGB Sync - Aura Sync, RGB Connector - 2 x Aura RGB Strip Header, Form Factor - Micro ATX, Supported Operating System - Windows 10, Special Features - Intel B460 (LGA 1200) mATX motherboard with Aura Sync RGB header, Dual M.2, DDR4 2933MHz, HDMI, DisplayPort, USB 3.2 Gen 1 ports, Intel Optane memory ready, SATA 6 Gbps, ASUS 5X PROTECTION III: ASUS DIGI+ VRM, ASUS LANGuard, ASUS Overvoltage Protection, ASUS Safeslot, ASUS Stainless-Steel Back I/O, ASUS Q-Design - ASUS Q-DIMM, ASUS Sync - Standard RGB header(s), Others - 1 x PS/2 keyboard/mouse combo port(s), 1 x DVI-D, 1 x DisplayPort, 1 x LAN (RJ45) port(s), 3 x Audio jack(s), 1 x CPU Fan connector(s) (1 x 4 -pin), 1 x CPU OPT Fan connector(s) (1 x 4 -pin), 2 x Chassis Fan connector(s) (2 x 4 -pin), 1 x AAFP connector, 1 x SPI TPM header, 1 x LPT header, 6 x SATA 6Gb/s connector(s), 1 x S/PDIF out header(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x System panel(s) (Chassis intrusion header is inbuilt), 1 x Clear CMOS jumper(s), 1 x COM port header, Warranty - 3 Year, Country of Origin - Taiwan, Made in/ Assemble - China
