Technical Specification | ||
Expansion Slots | 1 x PCIe 2.0 x16 1 x PCIe 2.0 x1 | |
Basic Information | ||
Supported CPU | Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium /Celeron Processors Supports Intel 22 nm CPU Supports Intel Turbo Boost Technology 2.0 - The Intel Turbo Boost Technology 2.0 support depends on the CPU types. | |
Chipset | Intel H81 | |
BIOS | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence | |
Form Factor | uATX Form Factor 7.5 inch x 7.0 inch ( 19 cm x 17.7 cm ) | |
Audio | Realtek ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking | |
Physical Description | ||
Internal I/O Ports | 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM header 1 x LPT header 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -p | |

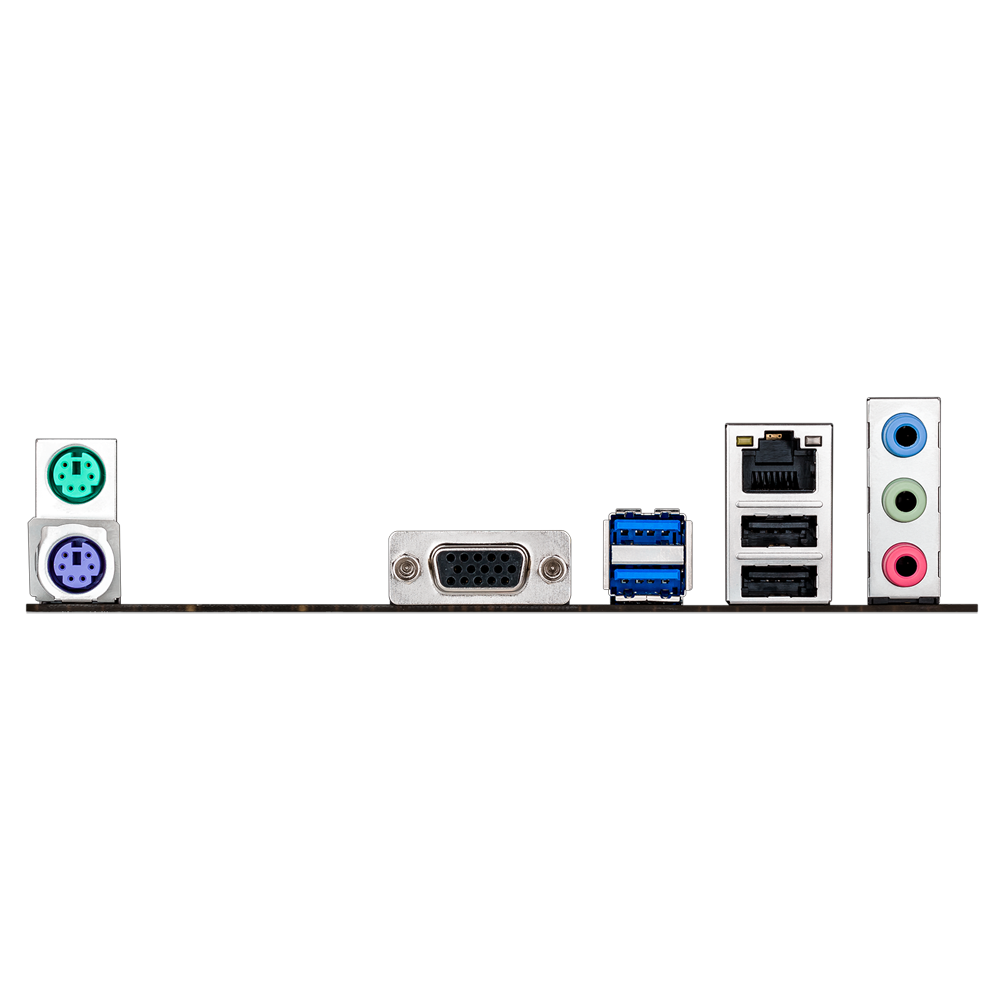

USB (s) | 2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue) 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) - 2 x USB 3.1 Gen 1 (blue) - 2 x USB 2.0 - 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) | |
Additional Info | ||
Special Features | ASUS EPU : - EPU ASUS Exclusive Features : - GPU Boost - AI Suite 3 - Ai Charger - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Disk Unlocker ASUS Quiet Thermal Solution : - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree | |
Memory Specifications | ||
Type | DDR3 | |
Slots | 2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture | |
Supported Memory | Supports Intel Extreme Memory Profile (XMP) - Hyper DIMM support is subject to the physical characteristics of individual CPUs. - Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). - Due to Intel chipset limitation, DDR3 1600 MHz and highe | |
Graphics Specifications | ||
Graphics | Integrated Graphics Processor - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface | |
Max Shared Memory | 1024 MB | |
Warranty Information | ||
Manufacturing Warranty | 03 Years Warranty |

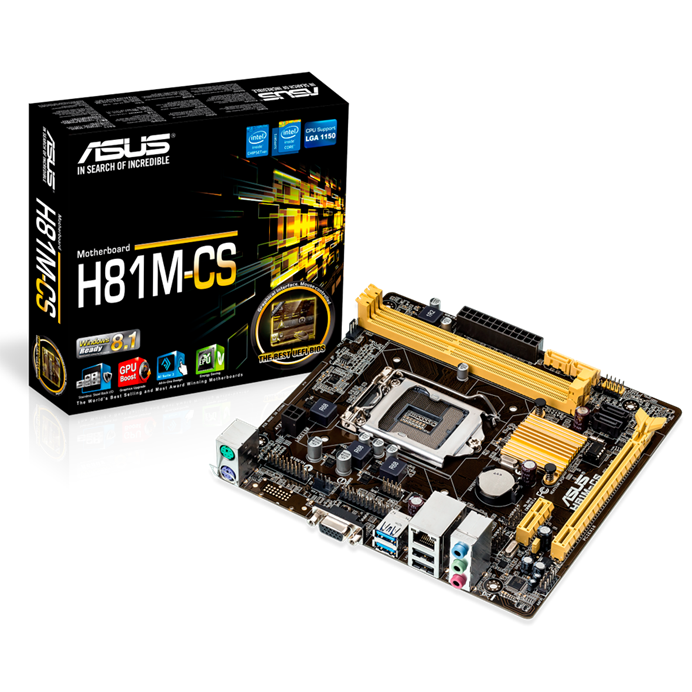

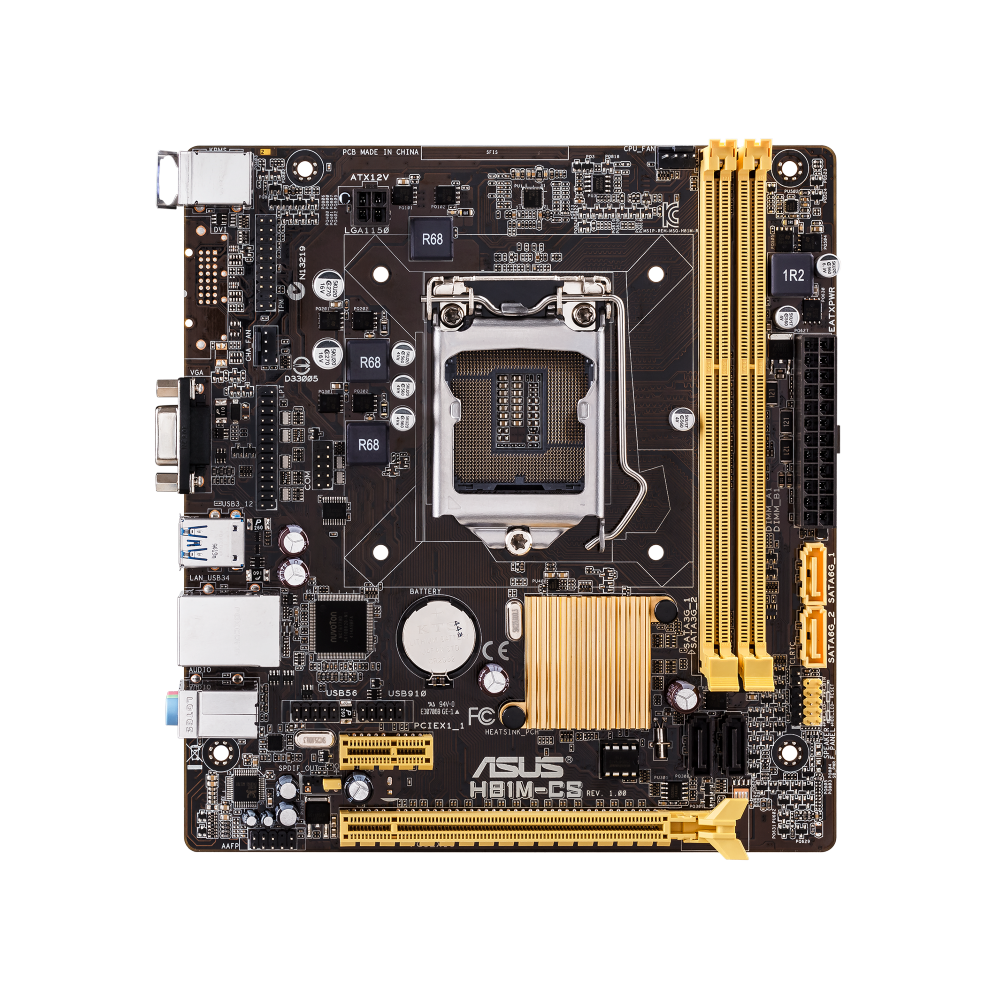

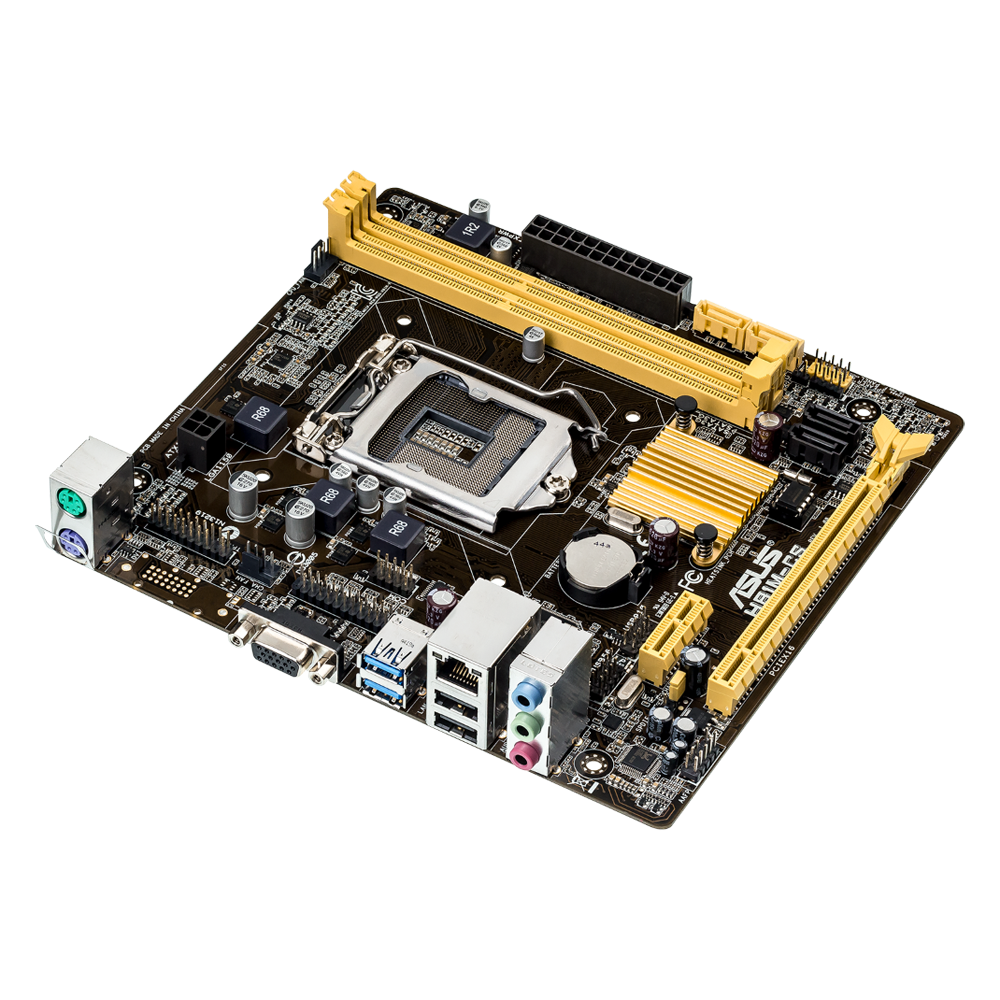

The new ASUS H81M-CS 4th Gen Intel Chipset Motherboard supports Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium /Celeron Processors, Intel 22 nm CPU, Intel Turbo Boost Technology 2.0 (The Intel Turbo Boost Technology 2.0 support depends on the CPU types.). In this motherboard, Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts by which you can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ Mode has a whole new look, upgraded with extra-friendly capabilities like detailed fan controls, XMP profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience. It is featured with 2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture and support Intel Extreme Memory Profile (XMP). This motherboard comes with GPU Boost, it accelerates the integrated GPU for extreme graphics performance. The user-friendly interface facilitates flexible frequency adjustments. It easily delivers stable system-wide upgrades for every use. In this motherboard, the ASUS Boot Setting provides better flexibility in customizing your PC’s startup process and you can shorten system boot-up time to 2-seconds for a smoother user experience under Windows 8, and even previous versions of Windows. Also, you can enter the BIOS directly with one click through a user-friendly interface, and quickly select your preferred system boot up method: either get to the OS in seconds or opt for regular boot up. Here, The ASUS AI Suite 3 offers a brand new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, that allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This ASUS H81M-CS 4th Gen Intel Motherboard has 03 years warranty.
