General | ||
Model | Asus EX-B460M-V5 | |
Chipset | Intel B460 | |
Form Factor | MATX | |
Additional Info | ||
BIOS Type | 1 x 128 Mbit Flash ROM | |
BIOS Model | UEFI AMI BIOS | |
Memory Specifications | ||
Type | DDR4 | |
MHz | 2933/ 2800/ 2666/ 2400/ 2133MHz | |
Slot | 2 | |
Max | 64GB | |
Optane Memory Support | Yes | |
Graphics Specifications | ||
Graphics | Integrated Graphics | |
Multi-GPU Support | No | |
PCI Express Slot | 1 x PCIe 3.0/2.0 x16, 2 x PCIe 3.0 x1 | |
Warranty Information | ||
Manufacturing Warranty | 03 Years | |
Compatibility | ||
Sockets Supported | LGA1200 | |
Supported CPU | Intel Core and Pentium Gold / Celeron processors | |
Generation | 10th | |
Supported Operating System | Windows 10 | |
Storage | ||
Storage Interface | 6.0Gb/s | |
M.2/SSD Expansion Slot | 1 | |
SATA Port | 4 x SATA | |
Network & Connectivity | ||
LAN Chipset | Realtek RTL8111H | |

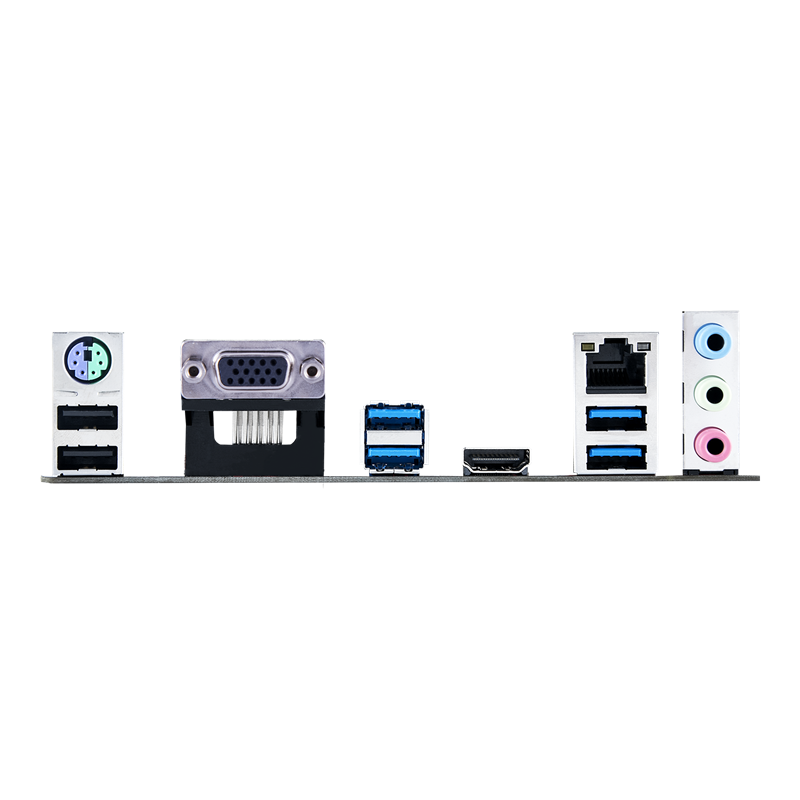

Ports | ||
USB Port | 6 x USB3.2 Gen 1, 6 x USB2.0 | |
VGA Port | 1 | |
HDMI Port | 1 | |
Audio & Video | ||
Audio Chipset | Realtek ALC887 | |
Audio Channel | 7.1 |
ASUS Expedition: Ready for non-stop battle
ASUS Expedition motherboards are made for non-stop action, engineered with non-stop durability to prevent damage from moisture, corrosion and overvoltages — for immense longevity. We even test them to the limits, with 144 hour of diskless-system tests and extensive checks for compatibility with top games and over 100 gaming peripherals. And for the ultimate audio, Expedition motherboards have Epic gaming audio to provide exhilarating non-stop gaming performance — and the best stability, reliability, and value for you!
Exceptional stability and protection
ASUS Expedition motherboards offer an exclusive package of unbeatable
hardware and features to ensure non-stop durability, including a
luminous anti-moisture coating, SafeSlot Core+, LANGuard, USBGuard
protection for 120%-higher overvoltage toleration, and exclusive 5X
Protection III for absolute reliability.
Protects against moisture and corrosion
An innovative moisture-resistant coating provides comprehensive protection to prolong the life of your Expedition motherboard. It combats the negative effects of high humidity often found in crowded environments — such as iCafé , data centers and libraries — and minimizes internal corrosion by preventing the adhesion and migration of moisture. The coating even has a luminous effect when viewed under ultraviolet light, letting you clearly see where it is applied.
