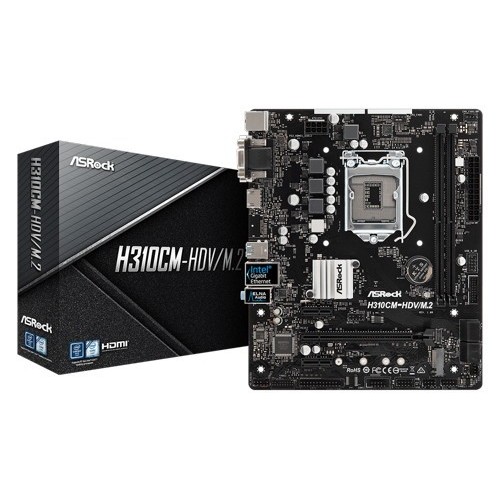

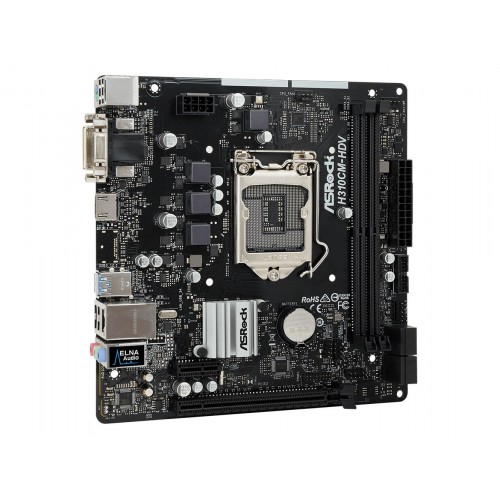

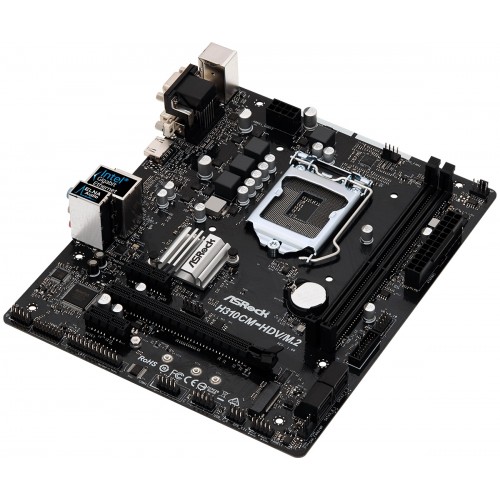

Asrock H310CM-HDV/M.2 8th & 9th Gen DDR4 Motherboard
Price : TK.0
Brand : ASRock
Model : Asrock H310CM-HDV/M.2 8th & 9th Gen
Warrantty : 03 Years
Product Code : TLB-526
Status :
- Out of stock
Biostar H310MHP DDR4 Motherboard
Specificaions :
| General | ||
| Model | Asrock H310CM-HDV/M.2 | |
| Supported CPU | Supports 9th and 8th Gen Intel Core Processors (Socket 1151), Supports CPU up to 95W, 4 Power Phase design, Supports Intel Turbo Boost 2.0 Technology | |
| Chipset | Intel H310 | |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support, ACPI 6.0 Compliant wake up events, SMBIOS 2.7 Support, CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment | |
| Form Factor | Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm, Solid Capacitor design | |
| PCI | 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode) 2 x PCI Express 2.0 x1 Slots | |
| M.2 Socket | 1 x M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x4 (20 Gb/s) | |
| Supported Memory | Dual Channel DDR4 Memory Technology, 2 x DDR4 DIMM Slots, Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory, Supports Intel Extreme Memory Profile (XMP) 2.0, 15μ Gold Contact in DIMM Slots | |
| Maximum Mamory | Max. capacity of system memory: 32GB | |
| Memory Specifications | ||
| Type | DDR4 | |
| Slots | 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode), 2 x PCI Express 2.0 x1 Slots | |
| Graphics Specifications | ||
| Graphics | Supports Intel UHD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics, DirectX 12, HWA Encode/Decode: AVC/H.264, HEVC/H.265 8 | |
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |
| Ports | ||
| HDMI | 1 x HDMI Port | |
| USB (s) | 2 x USB 2.0 1 x USB 3.1 | |
| LAN Port (s) | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| Supported Storage | 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug, 1 x M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x4 (20 Gb/s) | |
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone | |
| DVI-D (s) | 1 x DVI-D Port | |
Asrock H310CM-HDV/M.2 micro ATX solid capacitor design 8th gen processors supported dual channel DDR4 maximum 32GB memory motherboard has the capability of 1 M.2 (PCIe Gen2 x4 & SATA3) and 1 PCIe 3.0 x16, 2 PCIe 2.0 x1 as interface. For graphics compatibility, it will support integrated Intel UHD graphics having AMD Quad CrossFireX facility with HDMI, DVI-D, D-Sub output options. This exclusive motherboard has the facility of 4 USB 3.1 Gen1 (2 Front, 2 Rear), 4 USB 3.1 Gen1 (2 Front, 2 Rear), 4 SATA3, Intel Gigabit ethernet and 7.1 CH HD Audio connectivity.
Star Tech offers the best deals with EMI facility in all the major cities such as Chattagram, Dhaka, Rangpur, Rajshahi & Sylhet. Buy latest Asrock mainboard at best price from our online shop and have a fast delivery at any location you wish inside Bangladesh.
