Physical Specification | ||
SUPPORTED CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 | |
CHIPSET | B560 | |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
FORM FACTOR | microATX 24.4cm x 23.4cm | |
AUDIO FEATURES | – Audio Shielding – Premium Japanese audio capacitors – Dedicated audio PCB layers ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
INTEL 11TH &10TH GEN PROCESSORS | 1 x PCIe 4.0/3.0 x16 slot – Intel 11th Gen processors support PCIe 4.0 x16 – Intel10th Gen processors suppor | |
FAN AND COOLING RELATED | 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 2 x 4-pin Chassis Fan header(s) | |
Physical Description | ||
POWER RELATED | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector | |
Memory Specifications | ||
MEMORY SLOTS | 4 x DIMM, DDR4 | |
SUPPORTED MEMORY | 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem II | |
MAXIMUM MEMORY | Max. 128GB | |
SUPPORTED STORAGE | Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports | |
Graphics Specifications | ||
GRAPHICS | 1 x DP1.4 Graphics specifications may vary between CPU types. Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 60Hz. Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K60Hz, others will onl | |
Warranty Information | ||
WARRANTY | 03 Years Warranty | |
Network & Connectivity | ||
CONNECTOR & PORTS | HDMI: 1 x HDMI port Display Port (s): 1 x DisplayPort | |
USB (S) | Rear USB:Total 6 ports Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 port(s) (1 x Type-A + 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) | |
LAN PORT (S) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard | |
WIRELESS COMMUNICATION MODULE | V-M.2 slot only (Key E, CNVi & PCIe) Wi-Fi module and vertical M.2 Key E bracket set are purchased separately |

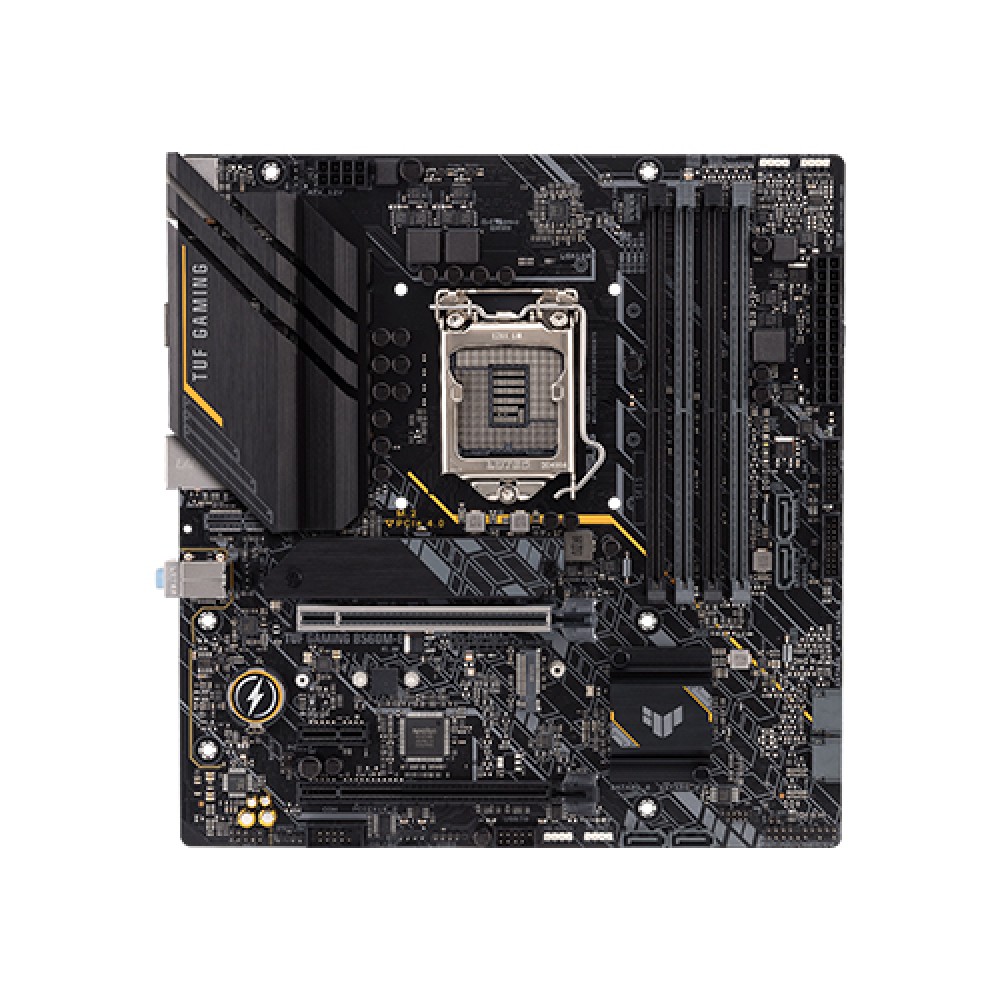

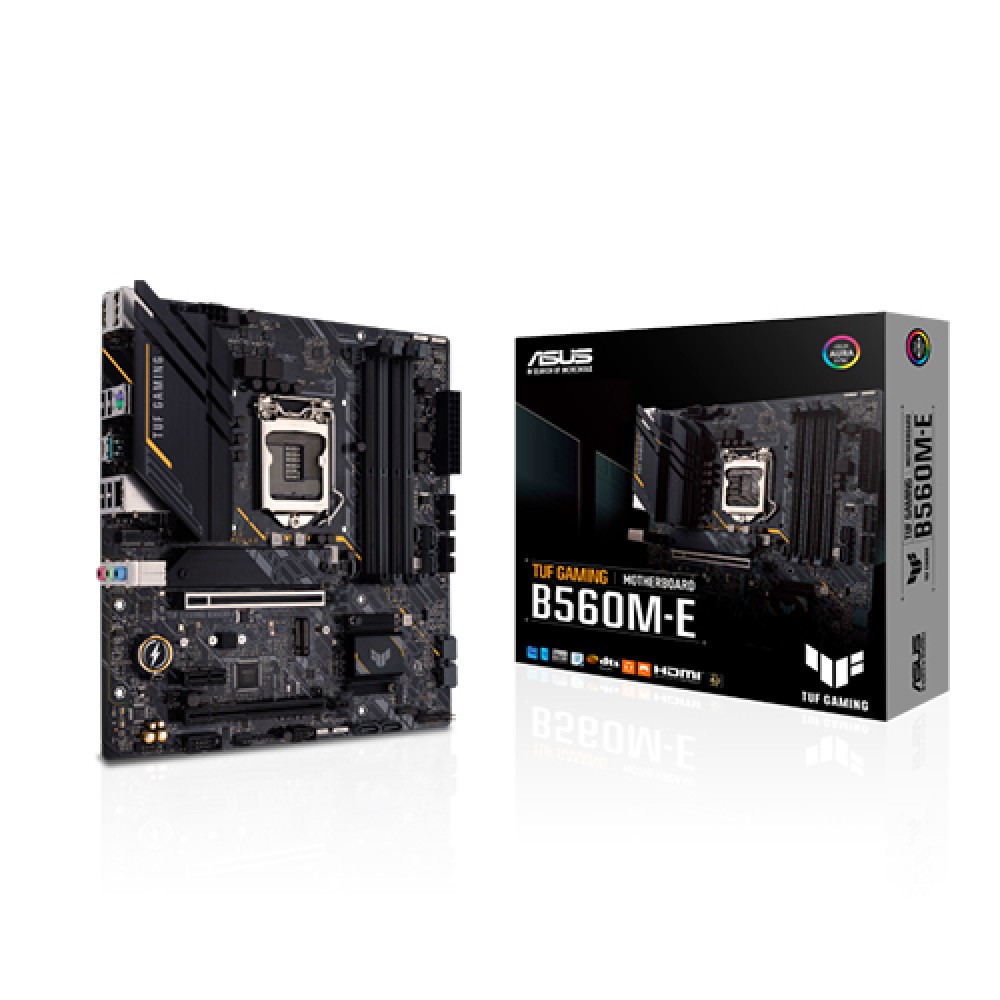

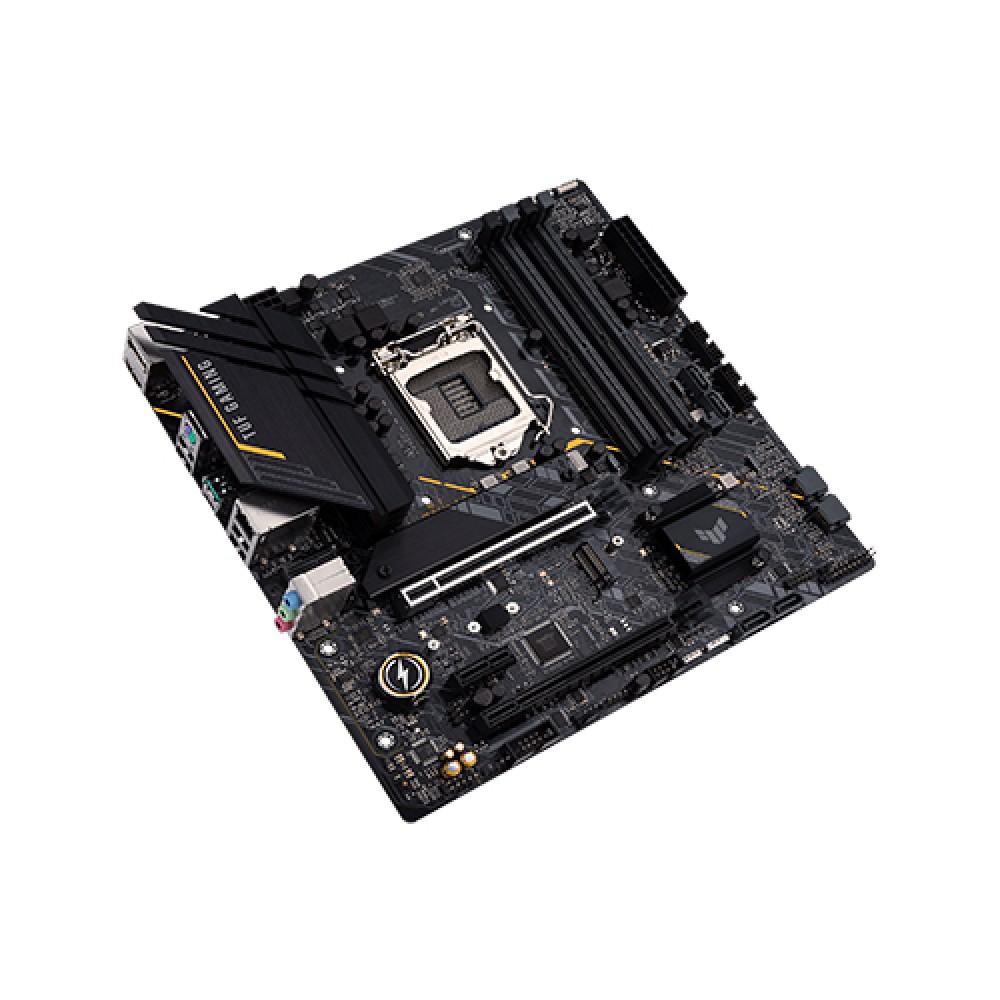

ASUS TUF GAMING B560M-E Motherboard is compatible with 10th and 11th Intel Core processors (Intel LGA 1200 socket). It comes with upgraded power delivery and comprehensive cooling options to drive the 11th and 10th Gen Intel Core processors, plus support for faster memory and storage, It features Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 4. A larger, high-mass heatsink with an extensive surface that covers the VRM and chokes areas improves heat dissipation. The TUF GAMING B560M-E has a flexible M.2 heatsink to use on more M.2 slots and keep the M.2 SSD at the optimum operating temperature for consistent performance and reliability. It also features comprehensive fan controls that can be configured via Fan Xpert 2+ utility or via the award-winning ASUS UEFI BIOS. This motherboard has been designed to be easy to set up and configure just the way you want.
