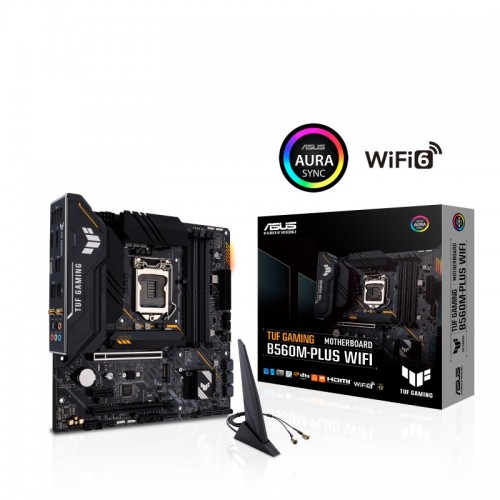

ASUS TUF B560M-PLUS Wi-Fi 10th and 11th Gen Micro ATX Gaming Motherboard

(0 reviews)

  • Price : TK.17200
  • Brand : Asus
  • Model : Asus tuf B560M-Plus wifi
  • Warrantty : 3 Year's (Official)
  • Product Code : TLB-720
  • Status :

Quantity:

Total Price:

Payment:

Share:

Specificaions :

Basic Information
Supported CPU Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel B560 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor microATX 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers
General
PCI Intel 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot(s) - Intel 11th Gen processors support PCIe 4.0 x16 - Intel10th Gen processors support PCIe 3.0 x16 Intel B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slots
M.2 Socket Intel 11th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280 - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SA
Additional Info
Special Features ASUS TUF PROTECTION - Digital power design with DrMOS - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yel
Memory Specifications
Type DDR4
Slots 4x DIMM
Supported Memory 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory 128GB
Graphics Specifications
Graphics 1 x DisplayPort 1.4 1 x HDMI 2.0
Warranty Information
Manufacturing Warranty 03 Years Warranty
Network & Connectivity
HDMI 1 x HDMI port
Display Port (s) 1 x DisplayPort

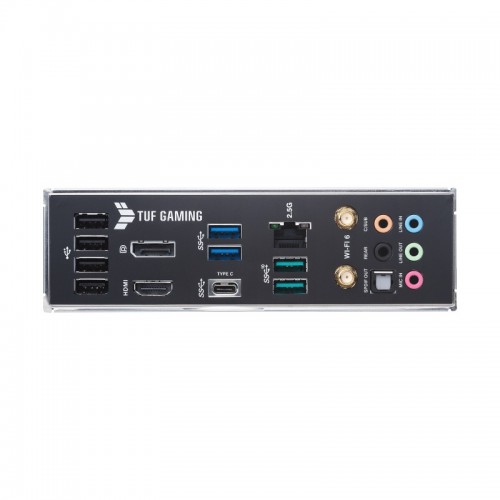

USB (s) USB (s) Rear USB:Total 9 ports 2 x USB 3.2 Gen 2 port(s) (2 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A+ 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) 1 x USB 3.2 Gen Gen 1 connector(s) (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s)
LAN Port (s) 1 x Realtek 2.5Gb Ethernet TUF LANGuard
Audio - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/ 192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers
Internal I/O Ports 1 x TB Header (for add-on TB card) Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 2 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slot
Ports
Wireless Communication module Intel Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.0 or later
Supported Storage Intel 11th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280 - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SA

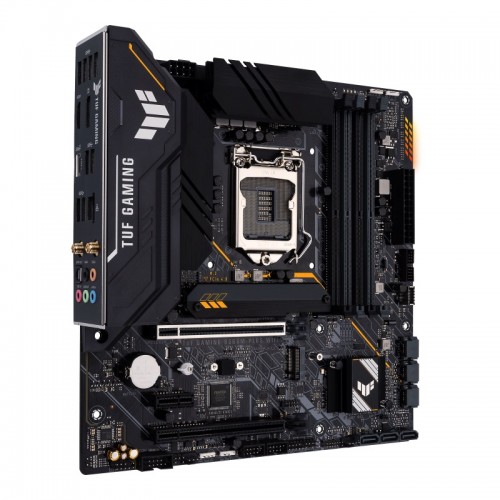

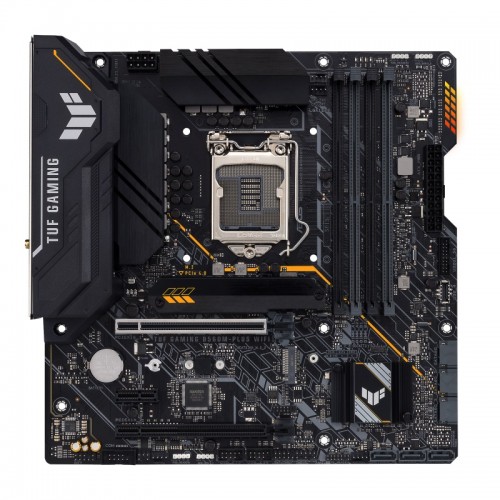

ASUS TUF GAMING B560M-PLUS Wi-Fi 10th and 11th Gen Micro ATX Motherboard

ASUS TUF GAMING B560M-PLUS WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid, stable performance for marathon gaming. Aesthetically, TUF GAMING B560M-PLUS WIFI sports the new TUF Gaming logo, and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.

Rock-Solid Performance

With upgraded power delivery and comprehensive cooling options to drive the 11th and 10th Gen Intel® Core™ processors, plus support for faster memory and storage, TUF GAMING B560M-PLUS series motherboards are the perfect foundation for your next high-core-count battle rig. The onboard VRM of TUF GAMING B560 series motherboards utilize 8+1 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 11th Gen Intel Core processors demand. Multiple PCB layers shift heat away from critical components, providing more headroom to push CPUs beyond stock speeds. Compared with traditional power inputs, ProCool connectors are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure. Certified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability. Proprietary capacitors provide up to 20% greater temperature tolerance and 5X-longer lifespan. The integrated Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times. A larger, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation. High quality thermal pads help transfer heat from the inductor and phase array to the heatsink. TUF GAMING B560M-PLUS Series have flexible M.2 heatsink to use on more M.2 slots and keep the M.2 SSD at the optimum operating temperature for consistent performance and reliability. Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk. TUF GAMING B560 series motherboards feature PCIe 4.0 M.2 for an incredible performance boost. Numerous USB ports support gaming rigs loaded with peripherals, including a rear-panel rear-panel USB Type-C connector with fast USB 3.2 Gen 1 connectivity for compatible cases. TUF GAMING B560M-PLUS series feature Thunderbolt™ 4 support via an on-board header. With latest Intel-certified ASUS Thunderbolt 4 add-on card, TUF GAMING B560M-PLUS series can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices.

Easy PC DIY

TUF GAMING motherboards are designed to be easy to set up and configure just the way you want —even for first-time builders. The TUF GAMING Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF GAMING motherboards give you everything you need to build your dream gaming rig without adding complexity. TUF GAMING Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards. The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD and neatly eliminate traditional screws. Armoury Crate is a new software utility designed to give you centralized control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for unified system lighting effects. The software also provides control of settings for a select and growing number of products, including keyboard and mouse preferences as well as laptop overclocking and fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and news areas to help you stay in touch with the gaming community.

Immersive Gaming

TUF GAMING B560M-PLUS series motherboards provide a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. The Intel® WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6. This utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks and other ambient noises so you can hear and be heard with crystal clarity while gaming or in calls. Hone your battle skills with exclusive DTS Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets ― Aerial, Soundscape, and Tactical ― for different genres, you'll have a distinct advantage in every game. A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
