Physical Specification | ||
Expansion Slots | 1 x PCI Express 3.0 x 16 Slot 1 x PCI Express 3.0 x 1 Slot | |
Basic Information | ||
Supported CPU | Supports 10th Gen Intel® Core™ Processors (Socket 1200) Digi Power design 5 Power Phase design Supports Intel Turbo Boost Max 3.0 Technology | |
Chipset | Intel H410 | |
BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support | |
Form Factor | Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm Solid Capacitor design | |
Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection | |
Additional Info | ||
Special Features | Premium 50A Power Choke Sapphire Black PCB High Density Glass Fabric PCB | |
Bundled Software | Software- ASRock Motherboard Utility (A-Tuning) ASRock XFast LAN UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Instant Flash ASRock Internet Flash | |
Memory Specifications | ||
Type | DDR4 | |
Slots | 1 x PCI Express 3.0 x 16 Slot 1 x PCI Express 3.0 x 1 Slot | |
Supported Memory | Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots | |
Maximum Mamory | Max. capacity of system memory: 64GB | |
Graphics Specifications | ||
Graphics | -Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1 -Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz -Intel UHD Graphics Built-in Visuals and the VGA outputs can | |
Warranty Information | ||
Manufacturing Warranty | 03 Years Warranty |

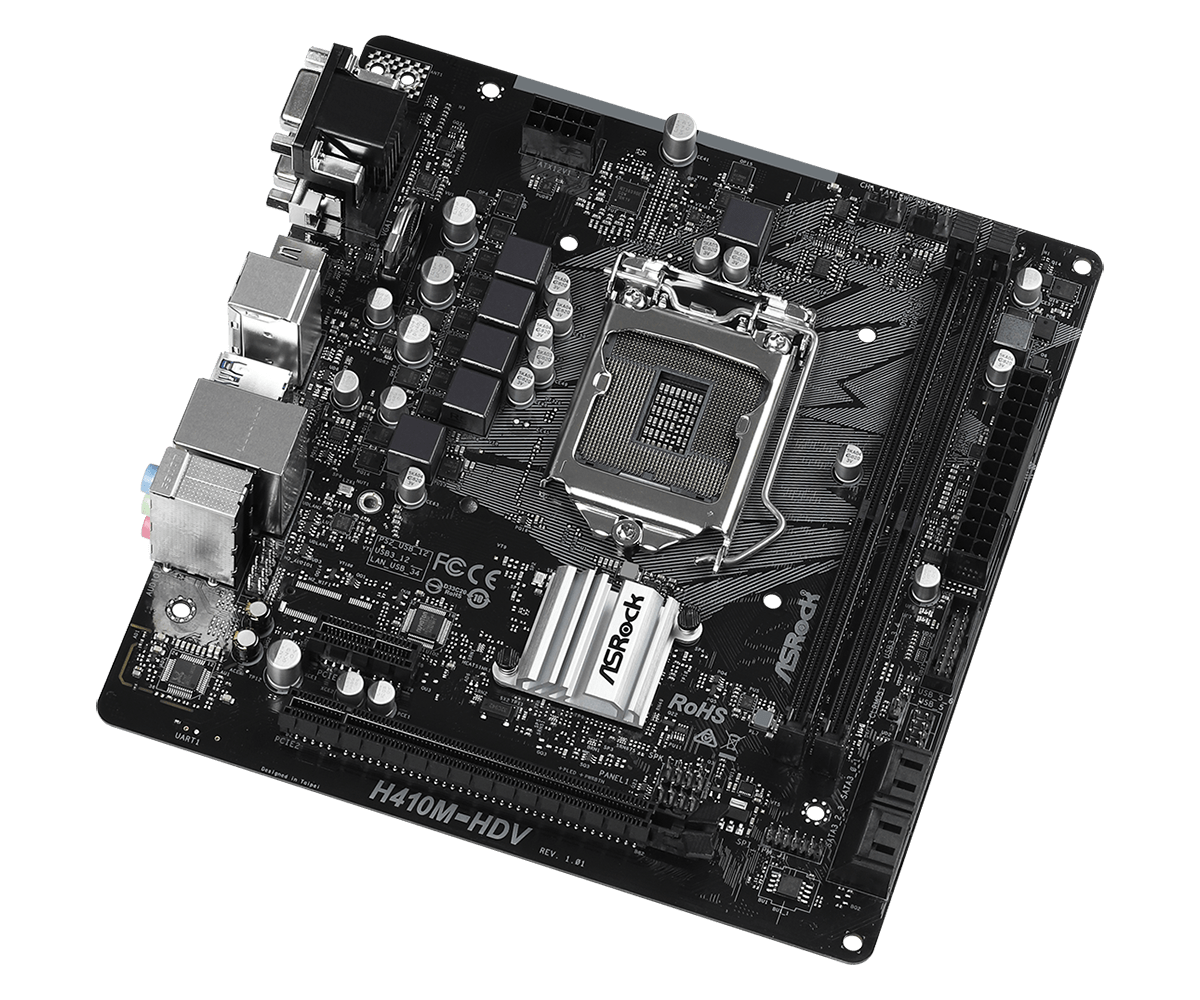

ASRock H410M-HDV ia a micro ATX solid capacitor designed with 10th Gen processor supported dual channel DDR4 maximum 64GB memory motherboard has the capability of 1 PCIe 3.0 x16, 1 PCIe 3.0 x1 as interface. In comparison to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Pure black PCB appearance gives the motherboard a more mysterious touch. High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. It is equipped with a D-Sub + DVI-D + HDMI combo where HDMI port supports 4K resolution. the header provides a maximum of 2A power for supporting the most popular water pumps.
This exclusive ASRock H410M-HDV Motherboard comes with 03 years warranty.
