General | ||

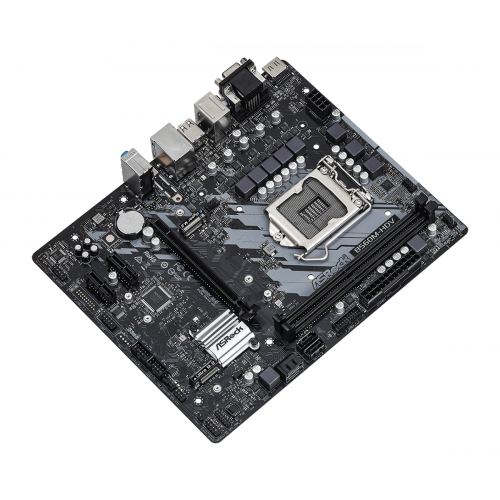

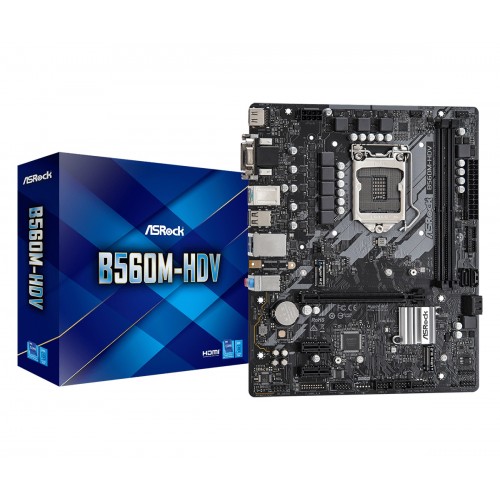

Model | ASRock B560M-HDV | |
Chipset | Intel B560 | |
Form Factor | Micro-ATX | |
Additional Info | ||
BIOS Type | 128MB Flash128MB Flash128MB Flash128MB Flash | |
BIOS Model | AMI UEFI Legal BIOS | |
BIOS Version | ACPI 6.0, SMBIOS 2.7 | |
Chipset Brand | Intel | |
TPM Port | 1 | |
COM Port | 1 | |
Memory Specifications | ||
Memory Type | DDR4 | |
Memory MHz | 11th Gen up to 5000+(OC), 10th Gen up to 4600+(OC) | |
Memory Channel | Dual | |
Memory Slot | 2 | |
Memory Max | 64GB | |
Graphics Specifications | ||
Graphics | Integrated Graphics | |
PCI Express Slot | 1 x PCI Express 4.0 x16 Slot, 1 x PCI Express 3.0 x16 Slot, 2 x PCI Express 3.0 x1 Slots | |
Warranty Information | ||
Manufacturing Warranty | 03 Years | |
Compatibility | ||
Sockets Supported | LGA1200 | |
Supported CPU | Core i9, i7, i5, i3, Pentium, Celeron processors | |
Generation | 10th/11th | |
Supported Operating System | Windows 10 | |
Storage | ||
Storage Interface | 6.0Gb/s | |
M.2/SSD Expansion Slot | 2 | |
SATA Port | 1 | |
Network & Connectivity | ||
LAN Chipset | Intel I219V | |
LAN Speed (Mbps) | 10/100/1000 Mb/s | |

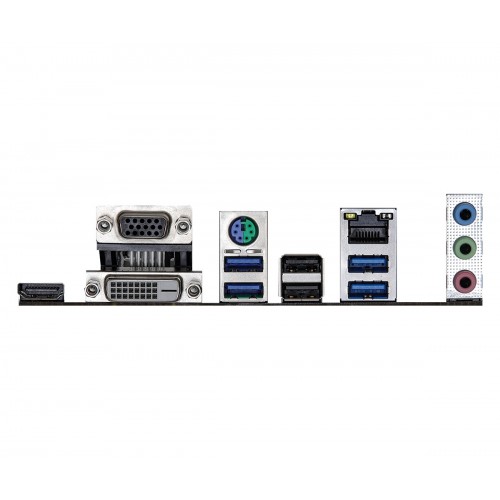

Ports | ||
USB Port | 6 x USB 3.2 Gen 1, 6 x USB 2.0 | |
VGA Port | 1 | |
DVI Port | 1 | |
HDMI Port | 1 | |
Audio & Video | ||
Audio Chipset | Realtek ALC897 Audio Codec | |
Audio Channel | 7.1 |
Brand - ASRock, Model - ASRock B560M-HDV, Chipset Brand - Intel, Chipset - Intel B560, CPU Sockets - LGA1200, Supported CPU - Core i9, i7, i5, i3, Pentium, Celeron processors, Generation - 10th/11th Gen, Memory Type - DDR4, Memory MHz - 11th Gen up to 5000+(OC), 10th Gen up to 4600+(OC), Memory Channel - Dual, Memory Slot - 2, Memory Max. - 64GB, Graphics - Integrated Graphics, PCI Express Slot - 1 x PCI Express 4.0 x16 Slot, 1 x PCI Express 3.0 x16 Slot, 2 x PCI Express 3.0 x1 Slots, Storage Interface - 6.0 Gb/s, M.2 Slot - 2 x M.2 slots (1 x Hyper M.2, type 2260/2280 M.2 PCI Express module up to Gen4x4), (1 x Ultra M.2, type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4)), LAN Chipset - Intel I219V, LAN Speed (Mbps) - 10/100/1000 Mb/s, Audio Chipset - Realtek ALC897 Audio Codec, Audio Channel - 7.1 Channel, USB Port - 6 x USB 3.2 Gen 1, 6 x USB 2.0, VGA Port - 1, DVI Port - 1, HDMI Port - 1, SATA Port - 4, BIOS Type - 128MB Flash, BIOS Model - AMI UEFI Legal BIOS, BIOS Version - ACPI 6.0, SMBIOS 2.7, TPM Port - 1, COM Port - 1, Form Factor - Micro-ATX, Supported Operating System - Windows 10, Special Features - This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience., Others - 1 x Chassis Intrusion and Speaker Header, 1 x CPU Fan Connector, 1 x CPU/Water Pump Fan Connector, 2 x Chassis/Water Pump Fan Connectors, 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector, 1 x PS/2 Mouse/Keyboard Port, 1 x RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone, Certifications: FCC, CE, ErP/EuP, Warranty - 3 Year
