ASRock B460M HDV Intel Chipset Motherboard 10th Gen
Price : TK.8200
Brand : ASRock
Product Code : TLB-98
Status :
- Out of stock
Biostar H310MHP DDR4 Motherboard
Specificaions :
| Technical Specification | ||
| Expansion Slots | 1 x PCI Express 3.0 x 16 Slot 1 x PCI Express 3.0 x 1 Slot | |
| Basic Information | ||
| Supported CPU | Supports 10th Gen Intel Core™Processors (Socket 1200) Digi Power design 7 Power Phase design Supports Intel Turbo Boost Max 3.0 Technology | |
| Chipset | Intel B460 | |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment | |
| Form Factor | Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm Solid Capacitor design | |
| Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection | |
| Physical Description | ||
| HDMI | 1 x HDMI 1.4 | |
| USB (s) | 2 x USB 2.0 2 x USB 3.2 Gen1 | |
| LAN Port (s) | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| Supported Storage | 4 x SATA3 6.0 Gb/s Connectors, support RAID | |
| D-Sub (s) | 1 x D-Sub Port | |
| DVI-D (s) | 1 x DVI-D Port | |
| Additional Info | ||
| Special Features | Premium 50A Power Choke Sapphire Black PCB High Density Glass Fabric PCB | |
| Bundled Software | ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop | |
| Memory Specifications | ||
| Type | DDR4 | |
| Slots | 1 x PCI Express 3.0 x16 Slot* 2 x PCI Express 3.0 x1 Slots 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module | |
| Supported Memory | - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots | |
| Maximum Mamory | Max. capacity of system memory: 64GB | |
| Graphics Specifications | ||
| Graphics | -Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1 -Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz -Intel UHD Graphics Built-in Visuals and the VGA outputs can | |
| Max Shared Memory | 64GB | |
| Warranty Information | ||
| Manufacturing Warranty | 03 Years Warranty | |

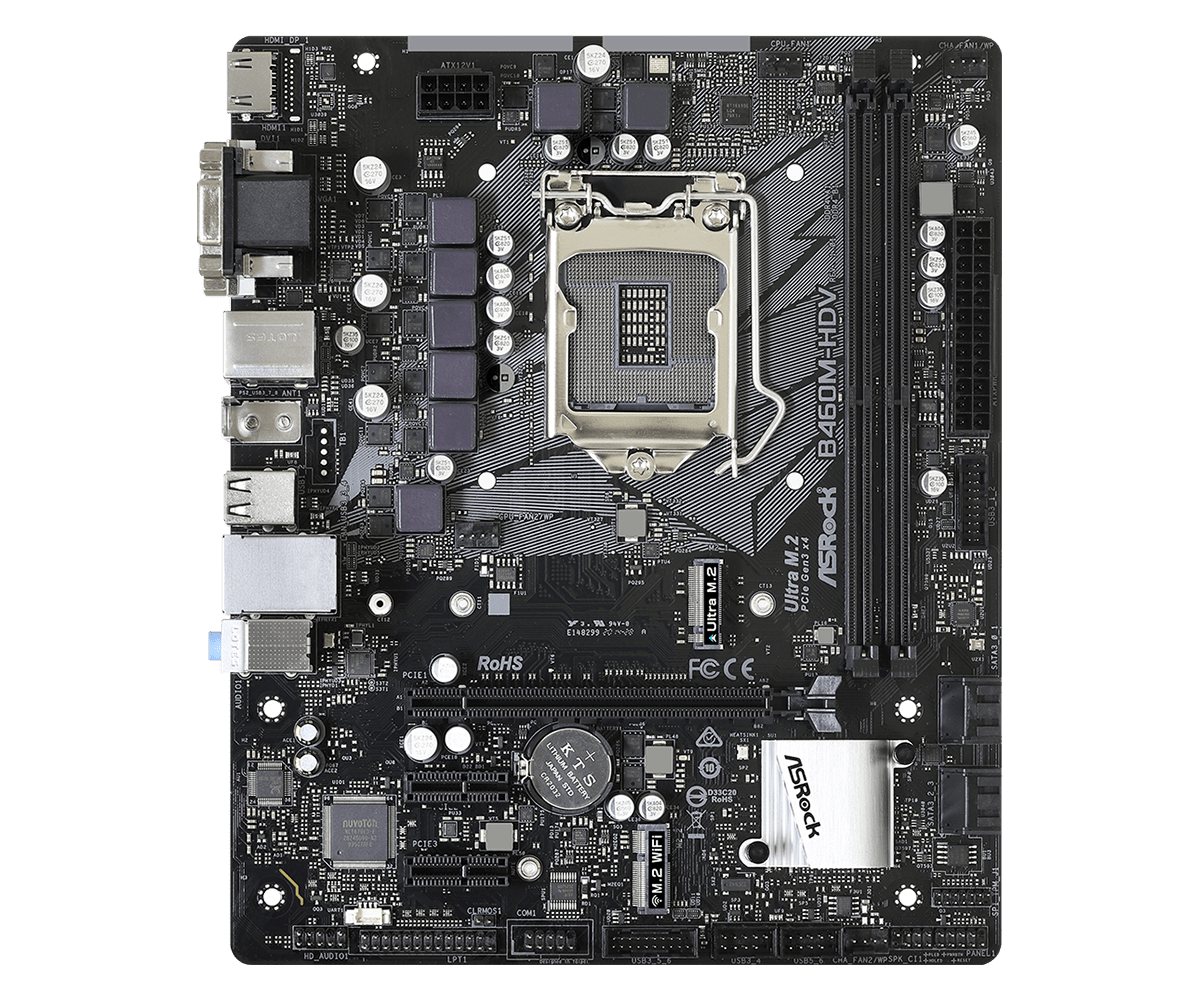

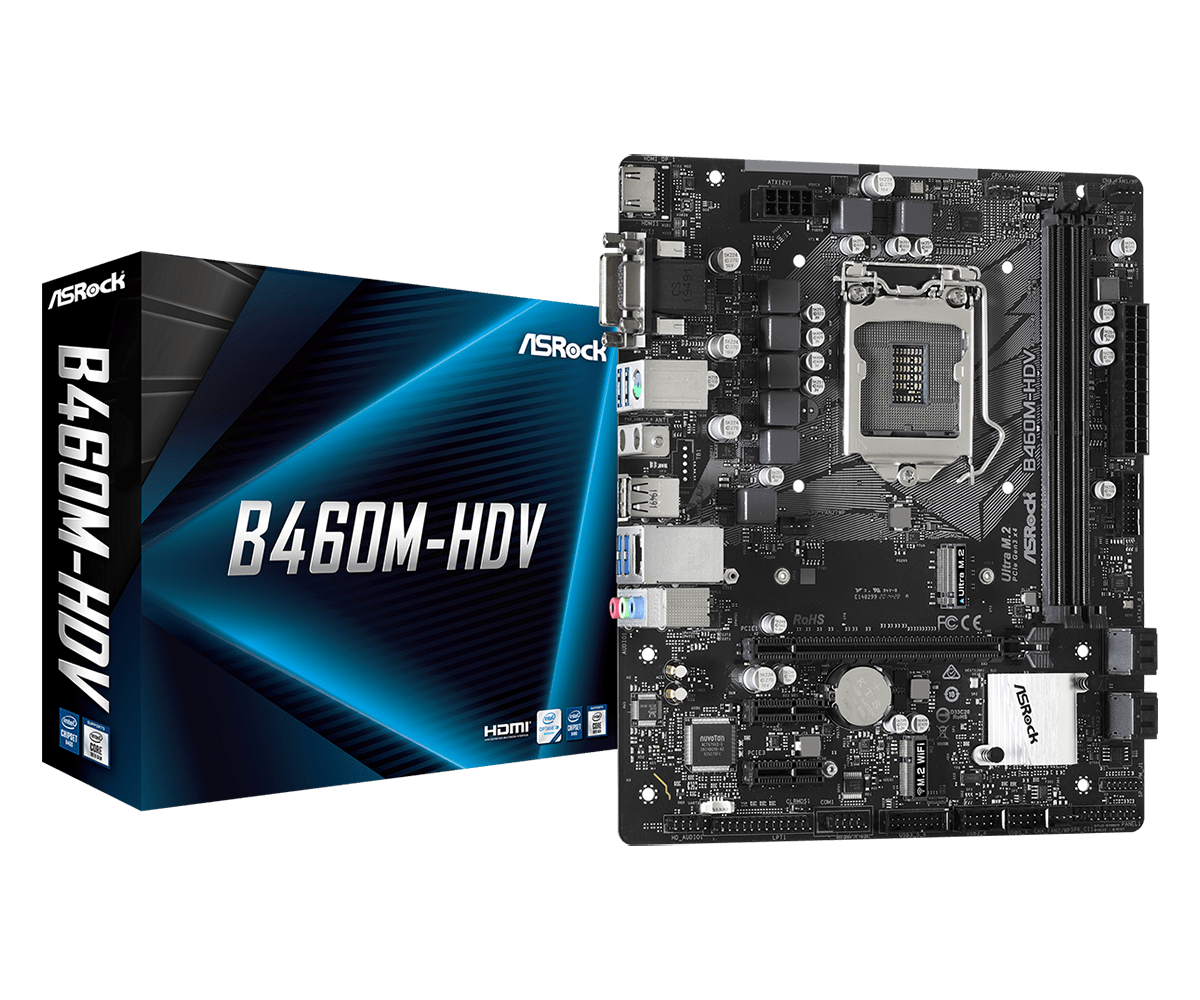

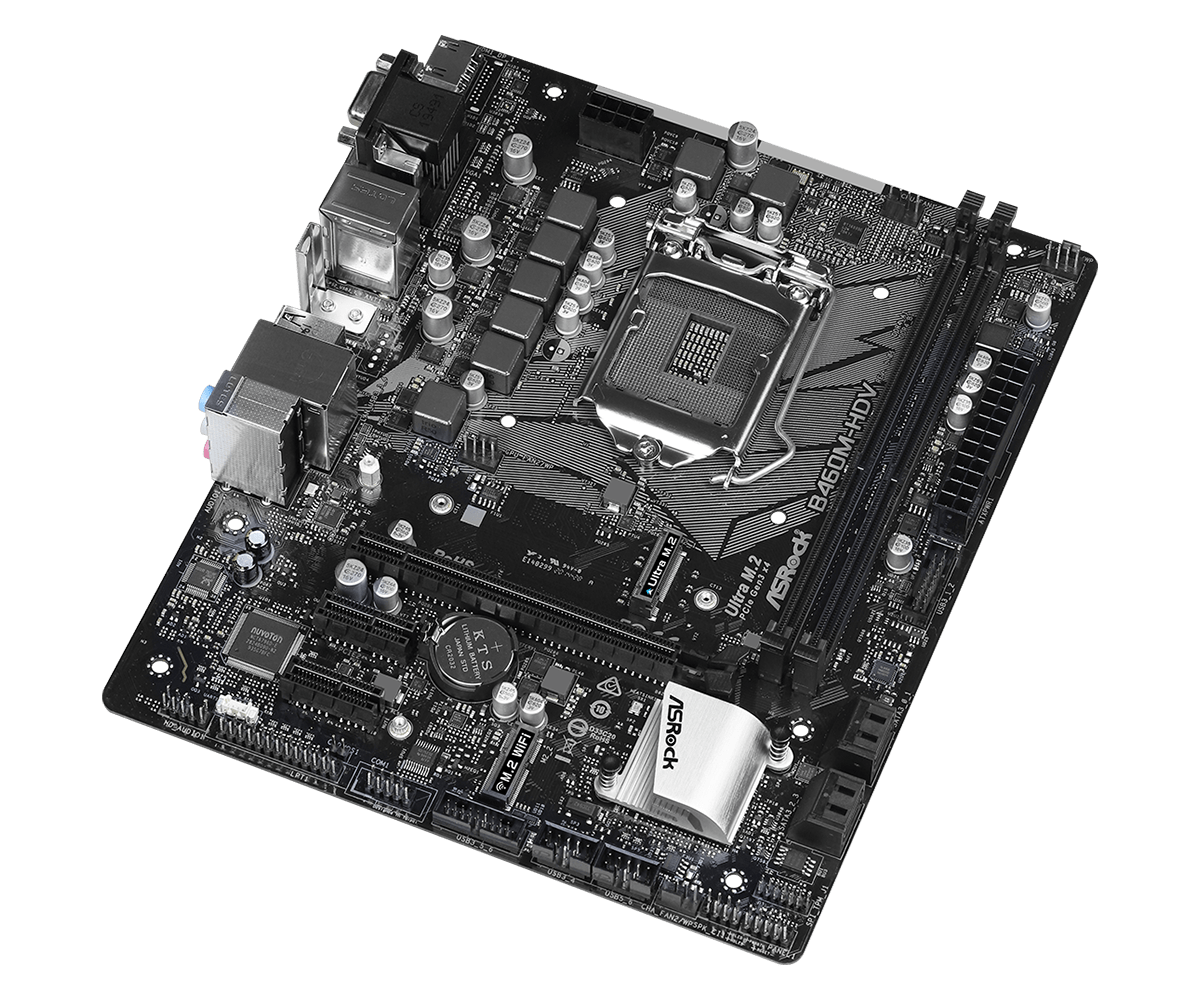

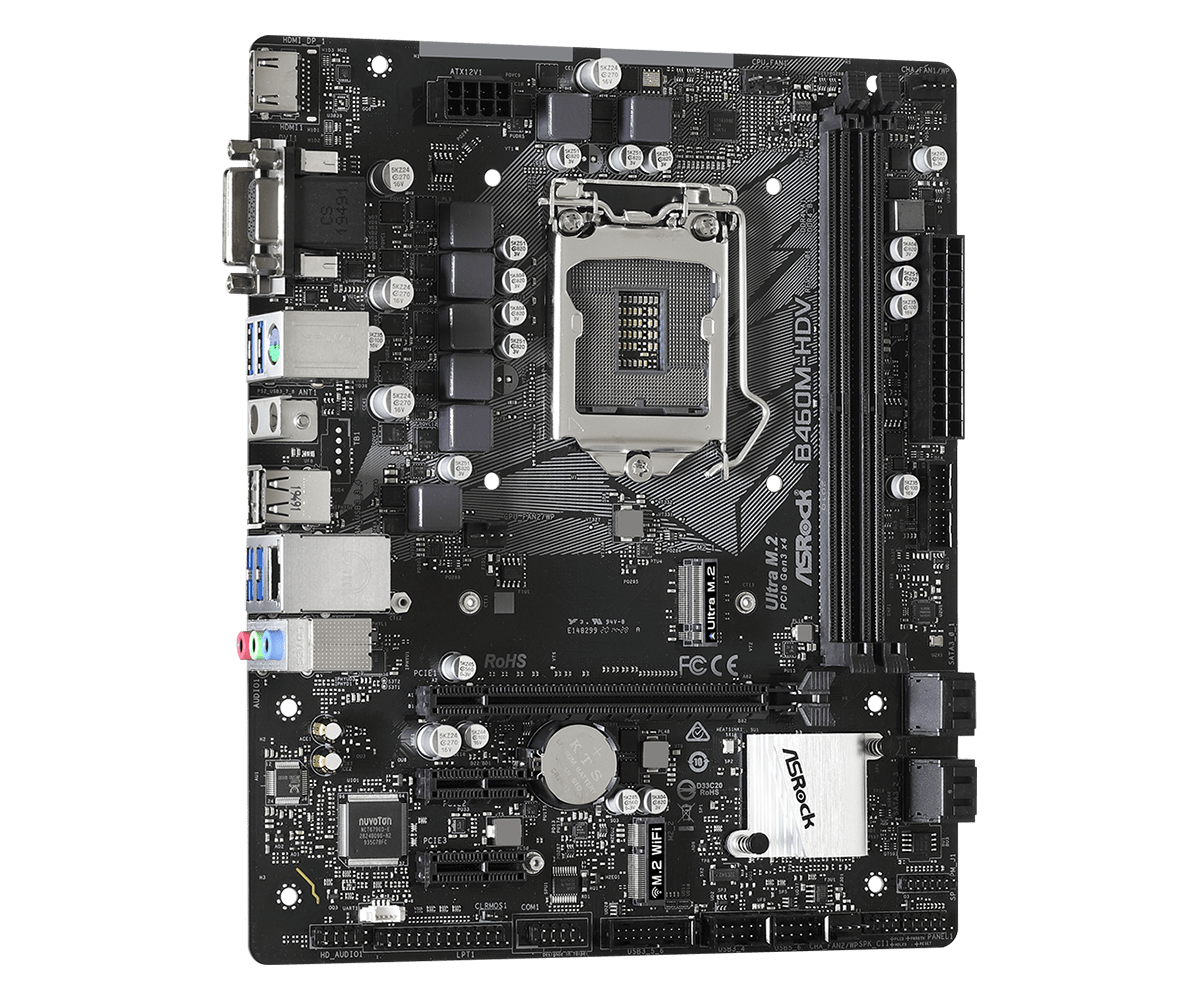

ASRock B460M-HDV 10th Gen DDR4 Motherboard
ASRock B460M-HDV ia a micro ATX solid capacitor designed with 10th Gen processor supported dual channel DDR4 maximum 64GB memory motherboard that Supports Intel Optane memory technology and Intel Optane storage technology which redefines a new standard of high performance and responsiveness. The PCIe Gen3 x4 Ultra M.2 interface enchances data transfer speed up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs. Along the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot. ASRock Full Spike Protection includes various technologies to prevent user's motherboard components from being damaged by these unexpected voltage spikes. Pure black PCB appearance gives the motherboard a more mysterious touch. High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. It is equipped with a D-Sub + DVI-D + HDMI combo where HDMI port supports 4K resolution. the header provides a maximum of 2A power for supporting the most popular water pumps.
This exclusive Asrock B460M-HDV Motherboard comes with 03 years warranty.
