| Physical Specification | ||
| Item dimensions (WxDxH) | 142 x 102 x 23 mm (5.59" x 4.01" x 0.91") | |
| Item weight | 148 g (0.33 lb.) | |
| Packing dimensions (WxDxH) | 270 x 74 x 164 mm (8.1" x 2.22" x 4.92") | |
| Packing weight | 426 g (0.94 lb.) | |
| Technical Specification | ||
| Wireless Standard | 802.11 b/g/n | |
| Wireless Transfer Rate | Transmit: 300 Mbps* Receive: 300 Mbps* | |
| Transmission Power | CE: <=20dBm (2.4G frequency band: 2.400 – 2.4835 GHz) | |
| Wireless Security | 64/128 bit WEP, WPA-PSK/WPA2-PSK | |
| WLAN Features | Access point mode Universal repeater mode WiFi Protected Setup (WPS) WiFi Multimedia (WMM) Wireless scheduling Wireless output power management Auto channel selection MAC address filtering | |
| Routing | Network Address Translation (NAT) Connection type: Static IP, DHCP, PPPoE, PPTP DHCP server/client Dynamic DNS Bandwidth management Auto-IP change IPv6 UPnP | |
| VPN Pass-through | IPSec PPTP L2TP | |
| Firewall | Denial of service (DoS) prevention | |
| System Management | Online firmware upgrade | |
| Physical Description | ||

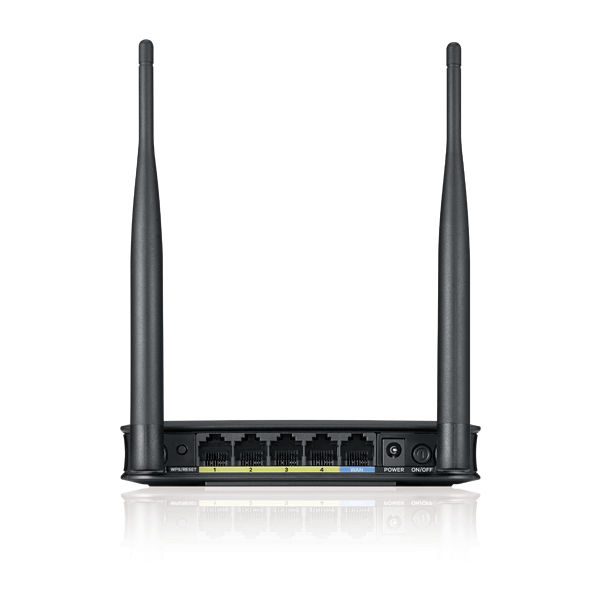

| WAN | One 10/100 Mbps Ethernet RJ-45 port | |
| LAN | Four 10/100 Mbps Ethernet RJ-45 ports with auto MDI/MDIX support | |
| LED indicators | Power,WLAN,WAN,WPS | |
| Antenna | Two 5 dBi fixed external antennas | |
| Button | Power on/off button, WPS/Reset button | |
| Power | 5 V DC, 1 A | |
| Power consumption: | 3.5 watt max. | |
