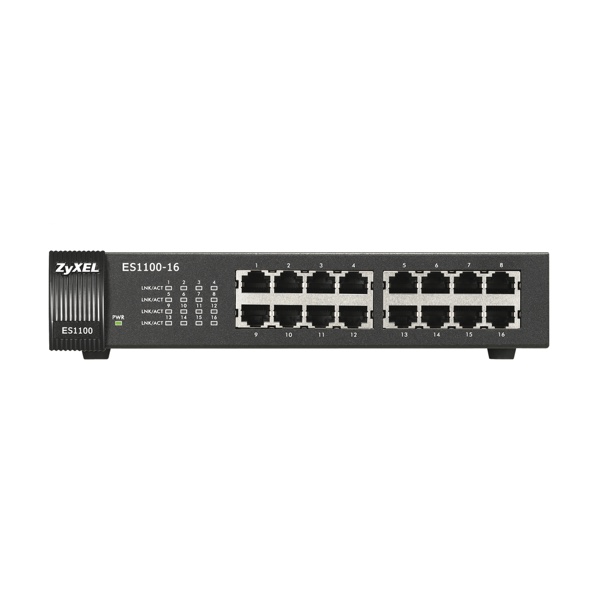

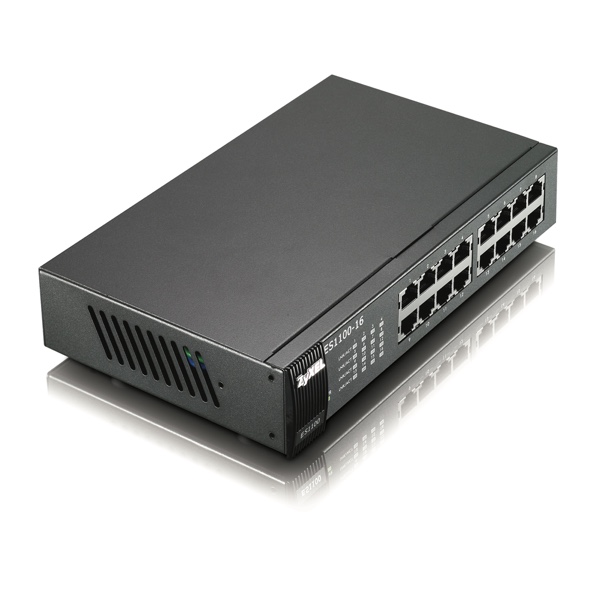

ZYXEL ES1100-16-EU01F 16 Port Ethernet Rack Switch 10/100 Mbps

(0 reviews)
  • Price : TK.2450
  • Brand : ZYXEL
  • Model : ZYXEL ES1100-16-EU01F 16 Port
  • Product Code : TLB-560
  • Status :
    • In stock
Quantity:
Total Price:
Payment:
Share:
Related Products

Mikrotik CSS326-24G-2S+RM SwOS powered 24 port Gigabit Ethernet switch with two SFP+ Ports in 1U Rackmount Case

TK.14000

Mikrotik CRS326-24G-2S+RM 24 Gigabit Port Mountain Rack Switch

TK.25800

Zyxel ES-108E 8-Port Desktop Fast Ethernet Switch

TK.850

Specificaions :

Physical Specification
Fanless Yes
Technical Specification
Operating temperature 0°C to 50°C/32°F to 122°F
Storage temperature -40°C to 70°C/-40°F to 158°F
Operating humidity 10% to 95%(non-condensing)
Storage humidity 10% to 95% (non-condensing)
MTBF 322,400 Hour
Heat dissipation 8.53 BT/Hr
General
Model ZYXEL ES1100-16-EU01F 16 Port
Power
Input voltage of AC 100 - 240 V AC, 50/60 Hz
Maximum power consumption (watt) 2.5
Physical Description
Dimensions 216 x 133 x 42/ 8.50 x 5.24 x 1.65
Packing 325 x 227 x 71/ 12.80 x 8.94 x 2.80
Warranty Information
Manufacturing Warranty 01 Year
Performance
Switching capacity (Gbps) 3.2
Switching forwarding rate (Mpps) 2.4
Packet buffer (byte) 256 K
MAC address 8 K
Jumbo frame support (up to 2048 byte) Yes
802.3x flow control prioritization Yes
802.1p CoS Yes
Back-pressure-based flow control Yes
Auto MDI/MDI-X Yes
Ports
Total port count 16
10/100 Mbps 16

IEEE 802.3az-compliant Switch with Decent Performance for Small-group Networks

Benefits

Green networking

The environment-aware Zyxel ES1100 Series offers 10/100 Mbps Ethernet speeds that is critical to next-generation network applications. It also provides power-saving functions to reduce energy consumption for lowered operating costs.

  • Traffic detection — IEEE Energy Efficient Ethernet (EEE) compliance (ES1100-8P/16/24E/24)

  • The IEEE Energy Efficient Ethernet (EEE) feature automatically detects network traffic and adjusts power consumption dynamically, enabling the switch to reduce power consumption during low link utilization periods.
  • Inactive link detection

  • The inactive link detection function automatically reduces power usage when inactive links or devices are detected. The Zyxel ES1100 Series can adjust power consumption according to link status and the number of active network devices.
  • Cable length detection

  • This green feature enables the switch to automatically detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the cable length, the less power it consumes.

Best-in-class solution for Fast Ethernet environments

The ES1100 Series comprises of unmanaged Fast Ethernet switches that provide an inexpensive solution for Fast Ethernet connections to the desktop with outstanding performance. The ES1100 Series is an ideal solution for bandwidth-intensive applications such as high-resolution photo delivery, video/audio streaming and downloading as well as server farm connections.

Better performance and efficiency

The full ES1100 range of Fast Ethernet switches have been designed to boost your network performance and efficiency. With N-way auto-negotiation, the ES1100 Series connects to network counterparts with the highest possible data speed and activates duplex mode automatically.

Transmission reliability

Unlike shared 10/100 Mbps networks, dedicated bandwidth is provided by the Zyxel ES1100 Series to eliminate traffic congestion. With the duplex mode, the ES1100 Series can also double the effective bandwidth by enabling two-way communication. The store-and-forward service brings low latency and error-free packet delivery, while the plug-and-play and multiple network protocol compatibility of the ES1100 Series make installation and management easier and faster than ever.

Desktop size with flexible rackmount/wallmount design for every working environment (ES1100-8P/16/24E)

With embedded rackmount brackets, the desktop-size models not only fit in desktop environments, but also on racks easily. These models come with wallmount accessories that make it easy to install on the walls when necessary.

Freedom of installation via PoE (ES1100-8P)

The Zyxel ES1100-8P supports IEEE 802.3af PoE to ease the installation of network devices in challenging spaces such as ceilings or walls. The power supply of up to 15.4 watts per port allows the ES1100 Series PoE switches to power PoE-enabled WLAN APs, VoIP phones and IP surveillance cameras through CAT-5 cables of less than 100 meters (300 feet) in length. With the ES1100 Series PoE switches, there is no need for extra power adapters in installing PoE devices in difficult locations. This feature helps enterprises reduce installation time and cost when there are many such devices on the network.

Features

Standard Compliance

  • IEEE 802.3 10Base-T Ethernet
  • IEEE 802.3u 100Base-TX Fast Ethernet
  • IEEE 802.3af PoE (ES1100-8P)
  • IEEE 802.3x flow control and back-pressure
  • IEEE 802.1p CoS
  • IEEE 802.3az EEE (ES1100-8P/16/24E/24)

Certification

  • Safety
    • EN 60950-1
    • IEC 60950-1
    • EU RoHS Compliant
    • BSMI CNS14336-1
  • Emission (EMC)
    • FCC Part15 (Class A)
    • CE EMC (Class A)
    • BSMI CNS13438

Green Features

  • Energy Efficient Ethernet for reduced power consumption in low-traffic periods (ES1100-8P/16/24E/24)
  • Inactive link detection for dynamic power output adjustment
  • Adjusts power usage according to the length of connected Ethernet cables
  • Easy device power-off with the power on/off switch

Green

IEEE 802.3az Energy Efficient Ethernet

Reduces power consumption during the low link utilization periods

Detect Cable Length

Adjust power usage according to the length of connected Ethernet cables

Detect Inactive Link

Adjust power consumption according to the number of active network devices

Power On/Off Switch

Allows customers to turn off switch when not in use

RoHS

Restriction of Hazardous Substances

WEEE

Waste Electronics and Electrical Equipment

Recycle
