Main Feature | ||
Model | Gigabyte GP-P550B | |
Type | ATX 12V V2.31 | |
Category | Non Modular | |
Physical Specification | ||
Fan Size | 120mm Hydraulic Bearing (HYB) | |
Input Current | 8 - 4A | |
Input Voltage | 100 - 240Vac | |
Input Frequency Range | 60 - 50Hz | |
Over Voltage Protection | Yes | |
Maximum Power | 550W | |
SATA Power Connectors | 6 | |
PCIe Connectors | 2 | |
EPS Connectors | 1 | |
Floppy Connectors | 1 | |
ATX Main Connectors | 1 | |
4-Pin Peripheral Connectors | 3 | |
Efficiency | 85% Typical Load | |
Technical Specification | ||
MTBF | >100,000 hours | |
Input AC | 100 - 240Vac | |
Others | 80 PLUS Bronze, Hold Up Time: >16ms, Cable Type: Flat, All black | |
Physical Description | ||
Dimensions | 150 x 140 x 86 mm | |
Warranty Information | ||
Manufacturing Warranty | 03 Years |
Features
80 Plus Bronze certified ensures to deliver 85% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
P550B provides the best solution for the system builds. The flat cable reduces the clutter and improves the airflow in the case.
The life of the Hydraulic Bearing fan is more than 4 years

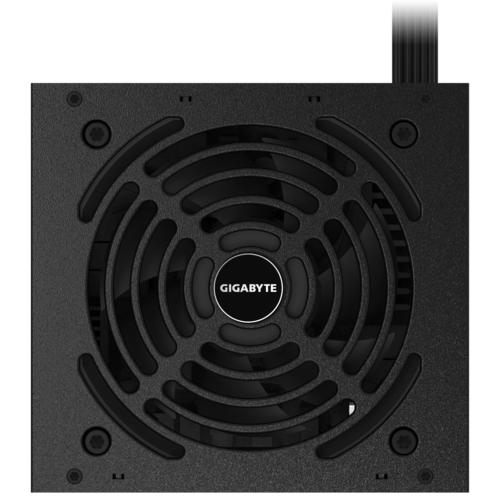

120mm Silent Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time.
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
Model - Gigabyte GP-P550B, Type - ATX 12V V2.31, PSU Category - Non Modular, Maximum Power - 550W, Input AC - 100 - 240Vac, Input Voltage - 100 - 240Vac, Input Frequency Range - 60 - 50Hz, Input Current - 8 - 4A, Over Voltage Protection - Yes, Efficiency - 85% Typical Load, Fan Size - 120mm Hydraulic Bearing (HYB), Zero RPM Fan Mode - Yes, ATX Main Connectors - 1, EPS Connectors - 1, PCIe Connectors - 2, SATA Power Connectors - 6, 4-Pin Peripheral Connectors - 3, Floppy Connectors - 1, MTBF - >100,000 hours, Dimension( W/H/D) - 150 x 140 x 86 mm, Warranty - 3 Year, Others - 80 PLUS Bronze, Hold Up Time: >16ms, Cable Type: Flat, All black,
