Physical Specification | ||
Fan Size | 120mm | |
Fan Bearing | Hydraulic Bearing | |
80 Plus Rating | 80 Plus Bronze | |
Protection | OVP, OPP, SCP, UVP, OCP, OTP | |
ATX Main Connectors | 1 x ATX/MB 20+4 Pin | |
EPS Connectors | 1 x CPU/EPS 4+4 Pin | |
PCIe Connectors | 2 x PCI-e 6+2 Pin | |
SATA Power Connectors | 6 | |
4-Pin Peripheral Connectors | 4 | |
Floppy Connectors | 1 | |
PFC (Power Factor Correction) | Active PFC (>0.9 typical) | |
Technical Specification | ||
Efficiency | 85% at typical load | |
Over Voltage Protection (OVP) | Yes | |
Over Power Protection (OPP) | Yes | |
Over Current Protection (OCP) | Yes | |
Over Temperature Protection (OTP) | Yes | |
Short Circuit Protection (SCP) | Yes | |
Under Voltage Protection (UVP) | Yes | |
Power Good Signal | 100-500ms | |
Hold Up Time | >16ms | |
Cable Type | Flat Black Cables | |
MTBF | >100,000 Hours | |
General | ||

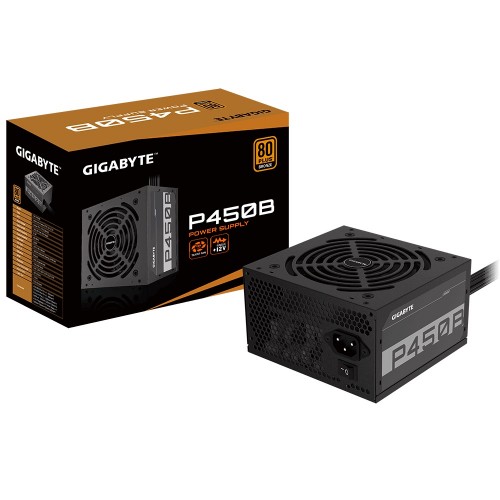

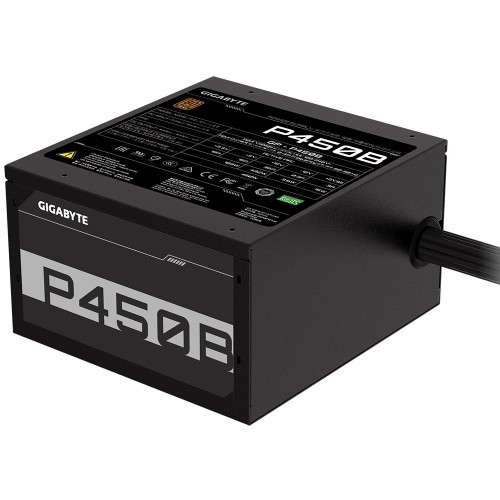

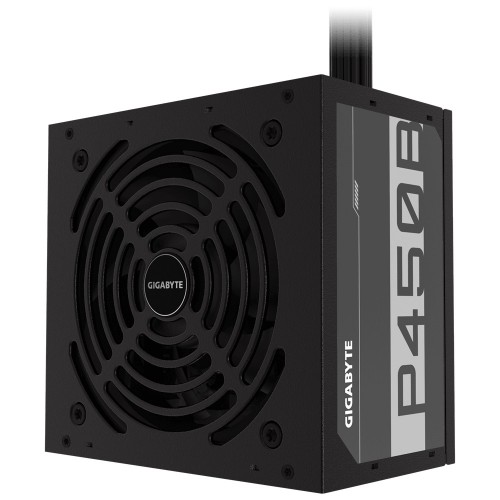

Model | Gigabyte P450B 450W 80 Plus Bronze | |
PSU Category | Non Modular | |
Type | ATX 12V v2.31 | |
Form Factor | ATX | |
Power | ||
Maximum Power | 450 Watt | |
Input Voltage | 100 - 240Vac | |
Input Frequency Range | 60-50 Hz | |
Input Current | 8-4 A | |
Physical Description | ||
Dimensions | 86.11 x 150.11 x 139.95 mm | |
Color | Black | |
Warranty Information | ||
Manufacturing Warranty | 02 Years |
Features
80 Plus Bronze certified ensures to deliver 85% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
P450B provides the best solution for the system builds. The flat cable reduces the clutter and improves the airflow in the case.
The life of the Hydraulic Bearing fan is more than 4 years

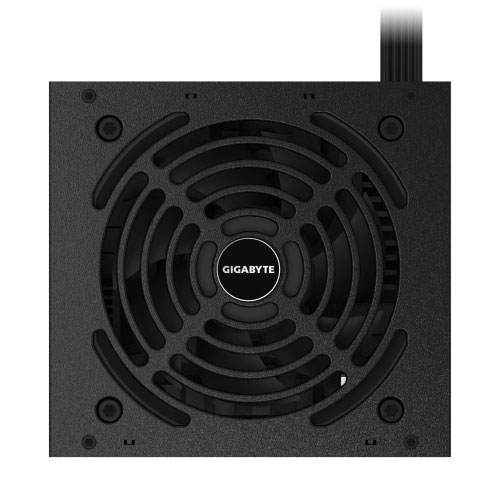

120mm Silent Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time.
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
Brand - Gigabyte, Model - Gigabyte GP-P450B, PSU Category - Non Modular, Type - ATX 12V v2.31, Maximum Power - 450 Watt, Input Voltage - 100 - 240Vac, Input Frequency Range - 60-50 Hz, Input Current - 8-4 A, Fan Size - 120mm, Fan Bearing - Hydraulic Bearing, Efficiency - 85% at typical load, 80 Plus Rating - 80 PLUS Bronze, Protection - OVP, OPP, SCP, UVP, OCP, OTP, Over Voltage Protection (OVP) - Yes, Over Power Protection (OPP) - Yes, Over Current Protection (OCP) - Yes, Over Temperature Protection (OTP) - Yes, Short Circuit Protection (SCP) - Yes, Under Voltage Protection (UVP) - Yes, ATX Main Connectors - 1 x ATX/MB 20+4 Pin, EPS Connectors - 1 x CPU/EPS 4+4 Pin, PCIe Connectors - 2 x PCI-e 6+2 Pin, SATA Power Connectors - 6, 4-Pin Peripheral Connectors - 4, Floppy Connectors - 1, PFC (Power Factor Correction) - Active PFC (>0.9 typical), Power Good Signal - 100-500ms, Hold Up Time - >16ms, Cable Type - Flat Black Cables, MTBF - >100,000 Hours, Form Factor - ATX, Dimension (W/H/D) - 150 x 140 x 86mm, Color - Black, Regulatory / Safety Approval - TUV, CE, FCC, EAC, CCC, Others - Reliable flat cable, Single +12V rail, Specialty - 80 Plus Bronze certified ensures to deliver 85% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. P450B provides the best solution for the system builds. The flat cable reduces the clutter and improves the airflow in the case. Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking., Warranty - 2 Year, Country of Origin - Taiwan, Made in/ Assemble - China
