Technical Specification | ||
CUDA Core / Stream Processors | 3584 | |
Engine Clock | 1837 MHz | |
Memory Clock | 15000 MHz | |
Capacity (GB/TB) | 12GB | |
Memory Bus | 192 bit | |
Memory Type | GDDR6 | |
Interface | PCI-E 4.0 x 16 | |
DirectX Support | 12 Ultimate | |
OpenGL Support | 4.6 | |
Supported Operating System | Windows 10, 7 | |
General | ||

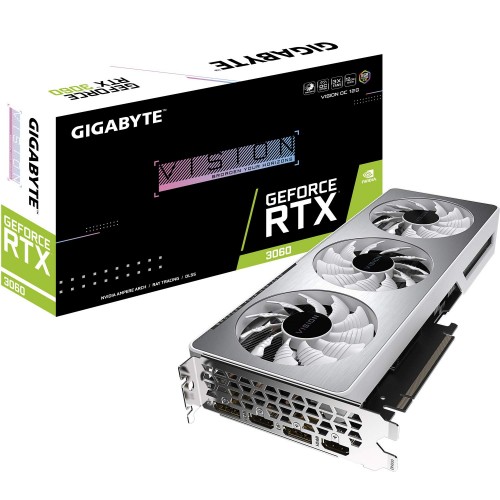

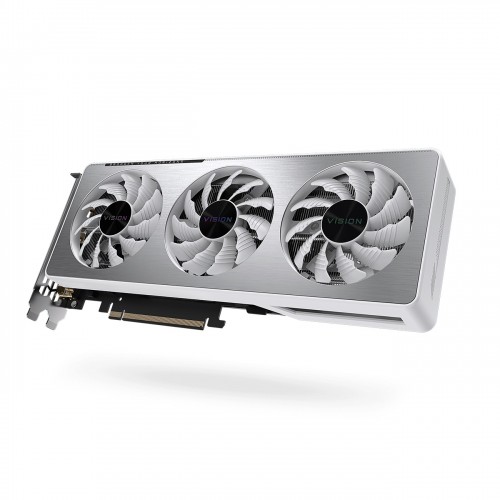

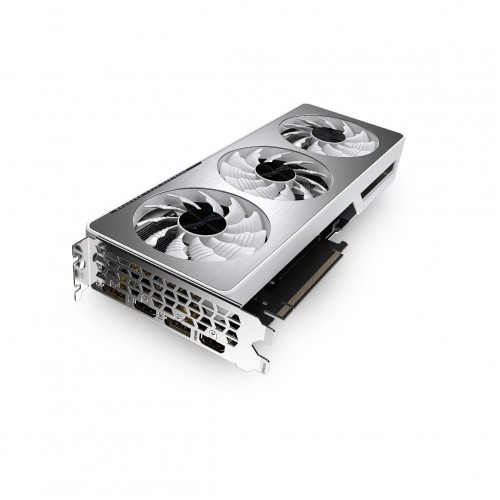

Model | Gigabyte GeForce RTX 3060 VISION OC 12G | |
Chipset Model | GeForce RTX 3060 | |
Chipset | NVIDIA GeForce | |
Power | ||
Recommended PSU | 550W | |
Power Connectors | 8 pin x 1 | |
Physical Description | ||
Card Dimension | 280 x 116 x 41 mm | |
Cooling Fan | Triple | |
PCB Form | ATX | |
RGB Effects | Yes | |
Graphics Specifications | ||
Graphics Resolution Max | 7680 x 4320 | |
Warranty Information | ||
Manufacturing Warranty | 03 Years | |
Ports | ||
HDMI Port | 2 | |
Display Port | 2 |
Brand - Gigabyte, Chipset Vendor - NVIDIA GeForce, Chipset Model - GeForce RTX 3060, Model - Gigabyte GeForce RTX 3060 VISION OC 12G, CUDA Core / Stream Processors - 3584, Engine Clock - 1837 MHz, Memory Clock - 15000 MHz, Memory Size - 12GB, Memory Bus - 192 bit, Memory Type - GDDR6, Interface - PCI-E 4.0 x 16, Digital Max Resolution - 7680 x 4320, DirectX - 12 Ultimate, OpenGL - 4.6, HDMI Port - 2, Displayport - 2, Recommended PSU - 550W, Power Connectors - 8 pin x 1, Multi Display Capability - 4, Card Dimension - 280 x 116 x 41 mm, Cooling Fan - Triple Fan, PCB Form - ATX, RGB Effects - Yes, Supported OS - Windows 10, 7, Others - Memory Bandwidth: 360 GB/s, DisplayPort version: 1.4a, HDMI version: 2.1, Fan Blade: 11, Specialty - The WINDFORCE 3X cooling system features 3X80mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation. Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure. Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter. 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices. NVIDIA Ampere Streaming Multiprocessors 2nd Generation RT Cores, 3rd Generation Tensor Cores Powered by GeForce RTX 3060, Integrated with 12GB GDDR6 192-bit memory interface, WINDFORCE 3X Cooling System with alternate spinning fans, RGB Fusion 2.0, Protection metal back plate, Warranty - 2 Year
