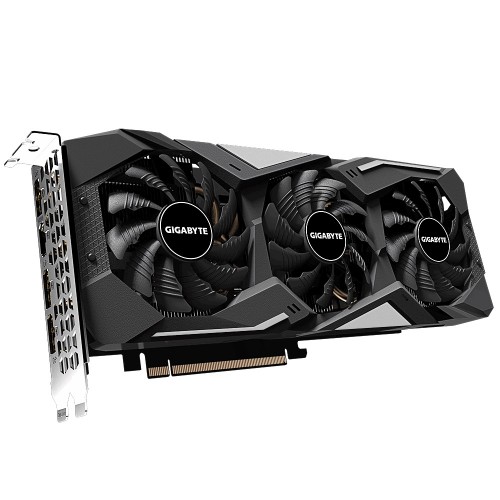

Gigabyte GeForce GTX 1660 Super Gaming OC 6GB Graphics Card

(0 reviews)

  • Price : TK.0
  • Brand : GIGABYTE
  • Model : Gigabyte GeForce GTX 1660 Super Gaming
  • Product Code : TLB-365
  • Status :

Quantity:

Total Price:

Payment:

Share:

Specificaions :

Physical Specification

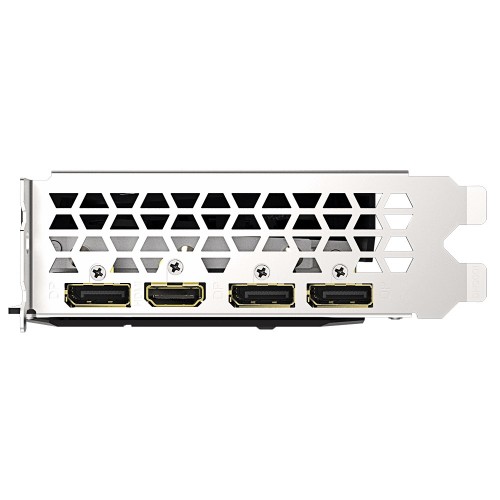

HDMI Port 1
Display Port 3
Cooling Fan Triple
PCB Form ATX
Technical Specification
Engine Clock Boost-1860MHz (Reference Card: 1785 MHz)
Memory Clock 14000 MHz
Capacity (GB/TB) 6GB
Memory Bus 192-bit
Memory Type GDDR6
Interface Bus PCI Express 3.0
DirectX Support 12
OpenGL Support 4.6
General
Model Gigabyte GeForce GTX 1660
Chipset NVIDIA GeForce
Part No GV-N166SGAMING OC-6GD
Power
Recommended PSU 450W
Power Connectors 8-pin x 1
Graphics Specifications
Graphics Resolution Max. 7680x4320
Multi Display Capability Quad Display
Warranty Information
Manufacturing Warranty 03 Years

GeForce® GTX 1660 SUPER™ GAMING OC 6G



GEFORCE® GTX 1660 SUPER GAMING OC 6G GV-N166SGAMING OC-6GD

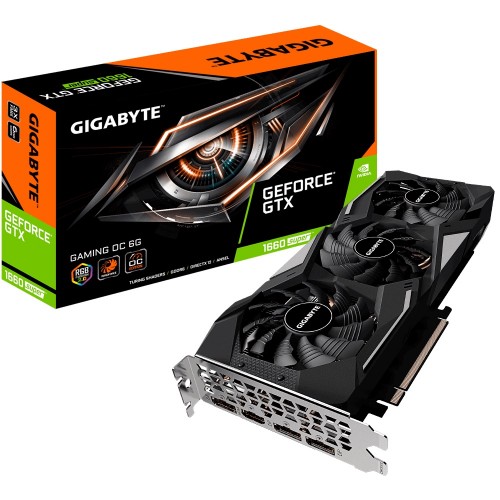

GeForce® GTX 1660 SUPER™ GAMING OC 6G Graphics Card and it's Product Box

FEATURES

  • Powered by GeForce GTX 1660 SUPER
  • Integrated with 6GB GDDR6 192-bit memory interface
  • WINDFORCE 3X cooling system with alternate spinning fans
  • RGB Fusion 2.0 – Synchronize with other AORUS devices
  • Protective backplate

CORE CLOCK

  • 1,860MHz (Reference Card: 1,785MHz)

features icon for Windforce, OC EDITION, NVIDIA Geforce RTX


GeForce® GTX 1660 SUPER™ GAMING OC 6G Graphics Card with background

WINDFORCE 3X COOLING SYSTEM

The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, an alternate spinning fan, 3x composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality. All together, these features deliver an effective heat dissipation capacity for higher performance at lower temperatures.

An image shows
GeForce® GTX 1660 SUPER™ GAMING OC 6G Graphics Card's component: Metal Back Plate, Ultra Durable Component, Heat-sink for VRAM & MOSFET, Heat-pipe direct touch GPU, Unique Blade Fan, Alternate Spinning

GeForce® GTX 1660 SUPER™ GAMING OC 6G with the aluminum radiator

ALTERNATE SPINNING

GIGABYTE's “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with utilizing three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which can cause turbulent airflow and reduce heat-dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing turbulence and enhancing airflow pressure.

UNIQUE BLADE FAN

UNIQUE BLADE FAN

Airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing airflow.

A flash shows 3D fan

3D ACTIVE FAN

This product's 3D Active Fan provides semi-passive cooling, and fans will remain off when the GPU is in a low-load or low-power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

an image shows the temperature

An image shows a large copper base plate with the high light word: MOSFET, VRAM, GPU

HEAT PIPES DIRECT-TOUCH GPU

The shape of the pure copper heat pipes maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal-plate contact to ensure proper cooling.

An image shows the sturdy Braided FEP tubes

COMPOSITE HEAT PIPE

This graphics card's composite heat pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces, increasing cooling capacity.

Ultra Durable certified chokes and capacitors badge

GAME IN STYLE

RGB FUSION 2.0

With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

RGB 2.O icon

BUILT STRONG

Ultra Durable certified chokes and capacitors badge

EXTREME DURABILITY AND OVERCLOCKING

The graphics card uses 4+2 power-phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life. (Reference Card is 3+2 power phase.)

The back of
GeForce® GTX 1660 SUPER™ GAMING OC 6G Graphics Card

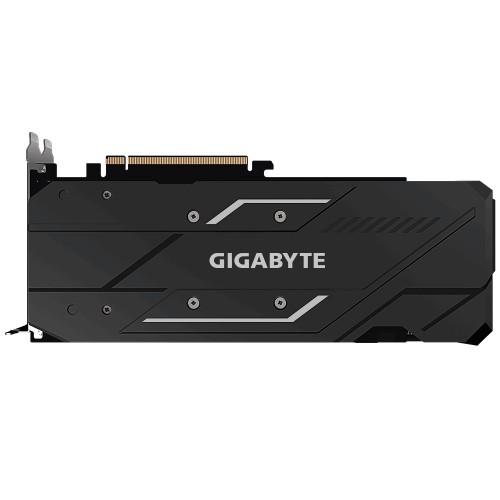

PROTECTIVE BACKPLATE

The backplate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.


GeForce® GTX 1660 SUPER™ GAMING OC 6G Graphics Card and AORUS's software interface

IN TOTAL COMMAND

The interface and functionality of the software is subject to each model.

AORUS ENGINE

The cutting-edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.

NVIDIA Geforce RTX logo, NVIDIA G-SYNC HDR logo, NVIDIA G-SYNC logo, Microsoft DirectX12 logo, HDMI logo



Chipset - Nvidia GeForce, Graphics Engine Model - Gigabyte GeForce GTX 1660 Super Gaming OC 6G, Interface Bus - PCI Express 3.0, Engine Clock - Boost-1860MHz (Reference Card: 1785 MHz), Memory Clock - 14000 MHz, Memory Size - 6GB, Memory Type - GDDR6, Memory Bus - 192-bit, Digital Max Resolution - 7680x4320, DirectX - 12, OpenGL - 4.6, HDMI Port - 1, Displayport - 3, Recommended PSU - 450W, Power Connectors - 8-pin x 1, Multi Display Capability - Quad Display, Cooling Fan - Triple, PCB Form - ATX, Specialty - WINDFORCE 3X Cooling System with alternate spinning fans, RGB Fusion 2.0, synchronize with other AORUS devices, Protection Back Plate, UNIQUE BLADE FAN, 3D ACTIVE FAN, HEAT PIPES DIRECT TOUCH GPU, COMPOSITE HEAT-PIPE, EXTREME DURABILITY AND OVERCLOCKING, Warranty - 2 year, Part No - GV-N166SGAMING OC-6GD, Others - CUDA Cores: 1408, Memory Bandwidth (GB/sec): 336 GB/s, Card Bus: PCI-E 3.0 x 16
